HC-1500 - Echo Hedge Trimmer (Type 2E) Gear Case, Blades, Tools Parts Diagram

Hedge Trimmer (Type 2E)

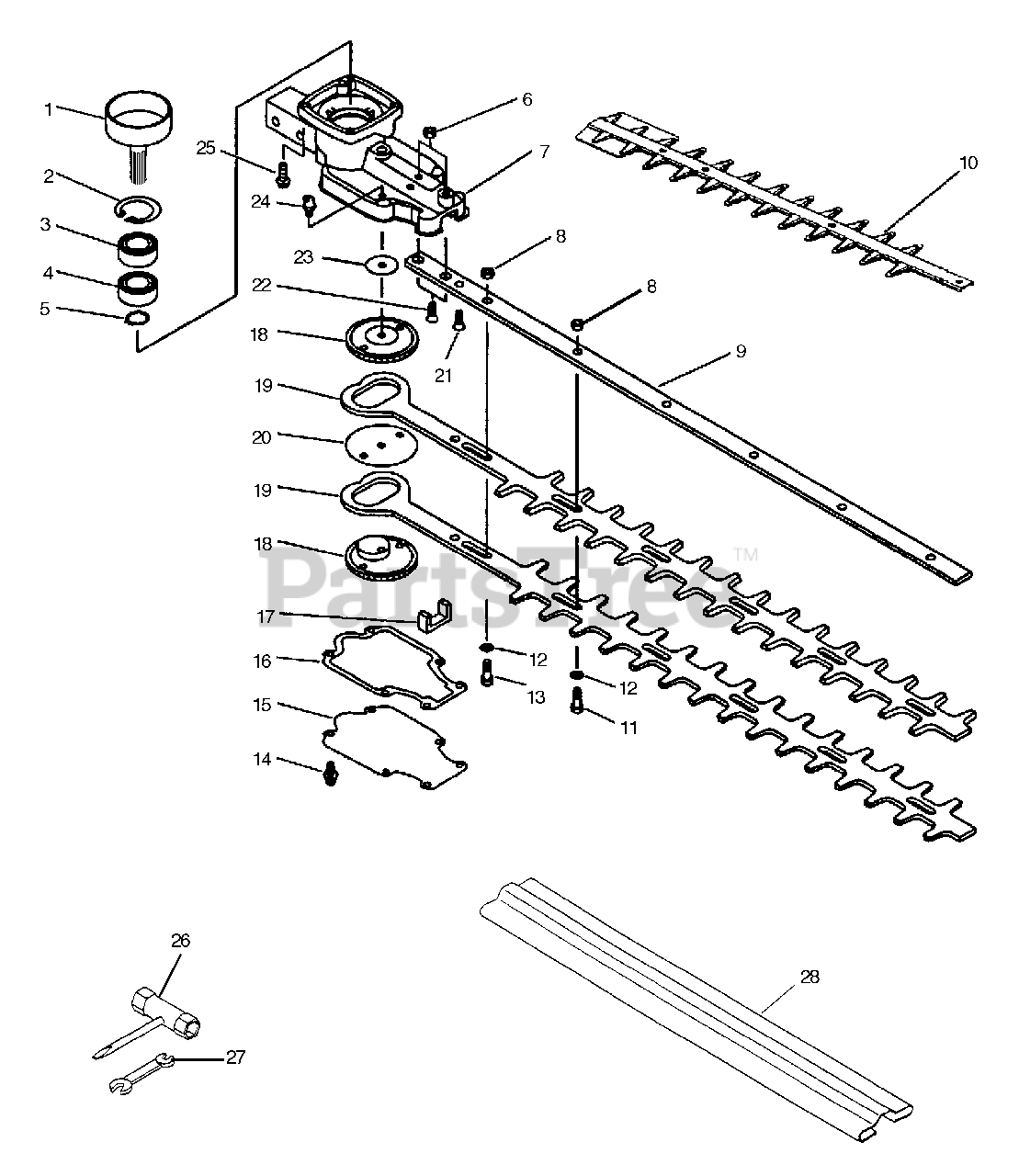

Gear Case, Blades, Tools Parts Diagram

  • Title

1

Echo 17500506560

DRUM, CLUTCH

$40.99

$

In Stock, Qty 9

0

2

Echo 90070200035

RING, SNAP 35

$2.49

$

In Stock, Qty 9

0

3

Echo 90087236202

BEARING, BALL 6202

$12.99

$

In Stock, only 2 left!

0

4

Echo 90087036202

BEARING, BALL 6202

$11.99

$

In Stock, only 2 left!

0

5

Echo 90070100014

RING, SNAP 14

$1.49

$

In Stock, only 2 left!

0

6

Echo 900500-00006

NUT, HEX M6

$0.99

$

In Stock, Qty 20+

0

7

Echo 61041006560

CASE, GEAR
(Superseded to 61041006561)

Note: S/N 001001 - 506000

$60.99

$

Usually ships in 2-4 days

0

7

Echo 61041006561

CASE, GEAR

Note: S/N 506001 & UP

$60.99

$

Usually ships in 2-4 days

0

8

Echo 43302206460

NUT M6

$1.49

$

In Stock, Qty 20+

0

9

Echo X425000010

SUPPORT, BLADE
(Superseded to X425000180)

$31.99

$

In Stock, only 2 left!

0

10

Echo 69912503060

STIFFENER
(Superseded to 69912503061)

Note: S/N 537730 & UP

$12.99

$

In Stock, only 2 left!

0

11

Echo 69911306560

BOLT 6

$1.49

$

In Stock, Qty 20+

0

12

Echo 69911804560

WASHER 6.5×15.5×0.6

$0.99

$

In Stock, Qty 20+

0

13

Echo 69911506560

BOLT M6×35

$3.49

$

In Stock, Qty 8

0

14

Echo 90016204012

BOLT 4×12

$1.49

$

In Stock, Qty 20+

0

15

Echo 61041106560

LID, GEAR CASE
(Superseded to 61041106561)

$12.99

$

In Stock, only 2 left!

0

16

Echo 61041406560

GASKET, GEAR CASE

$1.99

$

In Stock, Qty 7

0

17

Echo 61042606560

SEAL

$3.49

$

In Stock, Qty 20+

0

18

Echo 61031206560

GEAR, SPUR
(Superseded to V650000250)

$64.99

$

In Stock, Qty 7

0

19

Echo X411000020

BLADE, TRIMMER
(Superseded to X411000270)

$49.99

$

In Stock, Qty 20+

0

20

Echo 68902505360

WASHER 6.7×54×0.38

$2.99

$

In Stock, only 2 left!

0

21

Echo 90021205030

SCREW 5×30

$0.99

$

In Stock, Qty 16

0

22

Echo 90021206030

SCREW 6×30

$1.99

$

In Stock, Qty 8

0

23

Echo 68902506560

WASHER 6.5×30×0.2

$1.99

$

In Stock, Qty 7

0

24

Echo 88011006560

FITTING, GREASE

Note: S/N 001001 - 506000

$

$

Not available

24

Echo 88011054230

FITTING, GREASE

Note: S/N 506001 & UP

$6.49

$

In Stock, only 2 left!

0

25

Echo 90016304016

BOLT 4×16
(Superseded to V202000830)

$1.99

$

In Stock, Qty 18

0

26

Echo 89541006960

T-WRENCH 13×19×180
(Superseded to 89541006961)

$4.49

$

In Stock, only 2 left!

0

27

Echo 895112-00330

SPANNER 8×10

$0.99

$

In Stock, Qty 6

0

28

Echo 89852306560

COVER, BLADE
(Superseded to X495000040)

Note: S/N 001001 - 537729

$8.99

$

In Stock, only 2 left!

0

28

Echo 89852306960

COVER, BLADE
(Superseded to X495000010)

Note: S/N 537730 & UP

$10.99

$

In Stock, Qty 6

0
