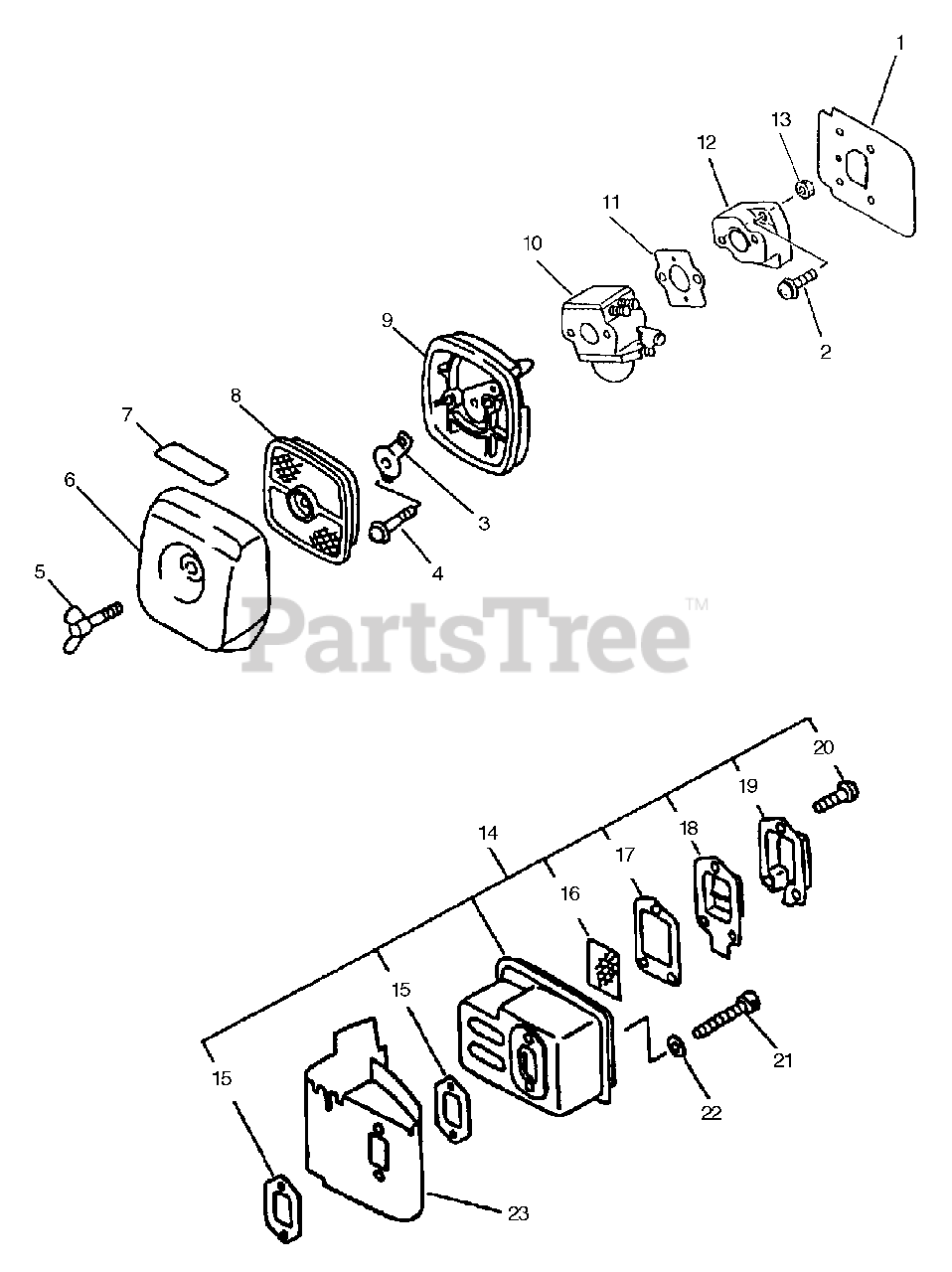

HC-1500 - Echo Hedge Trimmer (Type 2E) Intake, Air Filter, Exhaust Parts Diagram

Hedge Trimmer (Type 2E)

Intake, Air Filter, Exhaust Parts Diagram

  • Title

1

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

Note: USE KIT P/N 88900006760

$2.49

$

In Stock, Qty 14

0

2

Echo 90023805020

SCREW - 5X20

$0.99

$

In Stock, Qty 10

0

3

Echo 12901152730

PLATE, PREVENT

$3.99

$

In Stock, Qty 20+

0

4

Echo 90024205065

SCREW - 5X65

$0.99

$

In Stock, Qty 20+

0

5

Echo 21041752730

THUMBSCREW

$1.49

$

In Stock, Qty 20+

0

6

Echo 13031306563

COVER, AIR FILTER - GRAY

$7.49

$

In Stock, Qty 20+

0

7

Echo 89012106360

LABEL - CHOKE

$1.99

$

In Stock, Qty 5

0

7

Echo 89012105360

LABEL - CHOKE

$1.99

$

In Stock, Qty 6

0

8

Echo 13031006560

FILTER, AIR

$4.49

$

In Stock, Qty 14

0

8

Echo 13031054130

FILTER, AIR - SINGLE LAYER
(Superseded to A226001410)

Note: INCLUDED IN KIT P/N 90008

$7.99

$

In Stock, Qty 20+

0

9

Echo 13030706561

AIR FILTER CASE ASSY
(Superseded to P021002921)

$13.99

$

In Stock, Qty 13

0

10

Echo 12520005962

CARBURETOR C1U-K51
(Superseded to 12520005963)

$88.99

$

In Stock, only 2 left!

0

11

Echo 13001642031

GASKET, INTAKE

Note: USE KIT P/N 88900006760

$1.49

$

In Stock, Qty 20+

0

12

Echo 13001742031

INSULATOR, INTAKE

$10.99

$

In Stock, Qty 11

0

13

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

14

Echo 14580006560

MUFFLER ASSY
(Superseded to 14580006561)

Note: Includes ITEMS 15-20

$80.99

$

Usually ships in 2-4 days

0

15

Echo V104000160

GASKET, EXHAUST

Note: USE KIT P/N 88900006760

$2.49

$

In Stock, Qty 7

0

16

Echo 14586240630

SCREEN, SPARK ARRESTOR

$2.49

$

In Stock, Qty 20+

0

17

Echo 14586642031

GASKET, EXHAUST

Note: USE KIT P/N 88900006760

$2.99

$

In Stock, Qty 9

0

18

Echo 14587642030

GASKET, EXHAUST - INNER

$4.49

$

In Stock, only 3 left!

0

19

Echo 14586306560

GUIDE, EXHAUST - OUTER

$4.99

$

In Stock, only 1 left!

0

20

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

21

Echo 90010505050

SCREW - 5X50

$1.49

$

In Stock, Qty 11

0

22

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

23

Echo 14587105360

SHIELD, EXHAUST

$10.99

$

Usually ships in 2-4 days

0

Echo 88900006760

GASKET KIT

$32.99

$

Usually ships in 2-4 days

0

Echo 90008

RePower FILTER KIT
(Superseded to 90152)

$20.99

$

In Stock, Qty 20+

0
