HC-151 i - Echo Hedge Trimmer (SN: 06001001 - 06999999) Intake Parts Diagram

Hedge Trimmer

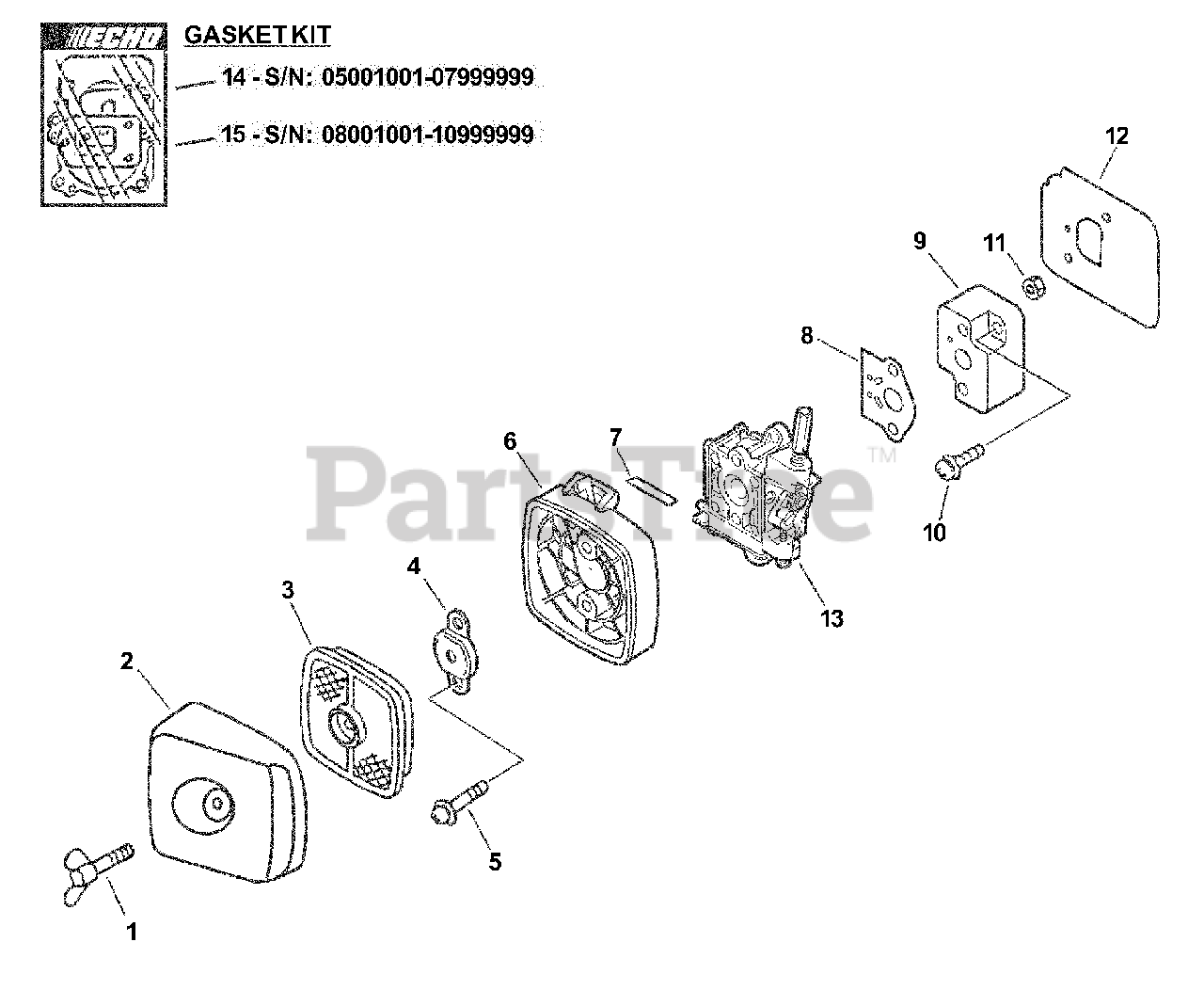

Intake Parts Diagram

  • Title

1

Echo 21041752730

BOLT, WING 5×20

$1.99

$

In Stock, Qty 14

0

2

Echo 13031306563

COVER, AIR FILTER - GRAY

$7.99

$

In Stock, Qty 20+

0

3

Echo 13031054130

FILTER, AIR - SINGLE LAYER
(Superseded to A226001410)

$8.99

$

In Stock, Qty 20+

0

4

Echo 12901152730

PLATE, PREVENT

$4.49

$

In Stock, Qty 5

0

5

Echo 90022005065

SCREW 5×65

$0.99

$

In Stock, Qty 20+

0

6

Echo P021000991

CASE, AIR FILTER - GRAY

$10.99

$

In Stock, Qty 6

0

7

Echo 89012152730

LABEL, CHOKE

$1.49

$

In Stock, Qty 17

0

8

Echo 13001013410

GASKET, CARBURETOR

Note: Included In GASKET KIT

$1.99

$

In Stock, Qty 20+

0

9

Echo 13001744330

INSULATOR, INTAKE
(Superseded to P021015350)

$4.99

$

In Stock, only 4 left!

0

10

Echo 900238-05020

SCREW 5×20

$0.99

$

In Stock, Qty 8

0

11

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

12

Echo V103000490

HEAT SHIELD, INTAKE
(Superseded to V103001360)

Note: Included In GASKET KIT

$2.99

$

In Stock, Qty 10

0

13

CARBURETOR

Note: See Carburetor Diagram For Details

$

$

Not available

14

Echo P021004710

GASKET KIT

$48.99

$

Usually ships in 2-4 days

0

15

Echo P021012290

GASKET KIT

$33.99

$

Usually ships in 2-4 days

0
