HC-151 i - Echo Hedge Trimmer (SN: 09001001 - 09999999) Exhaust Parts Diagram

Hedge Trimmer

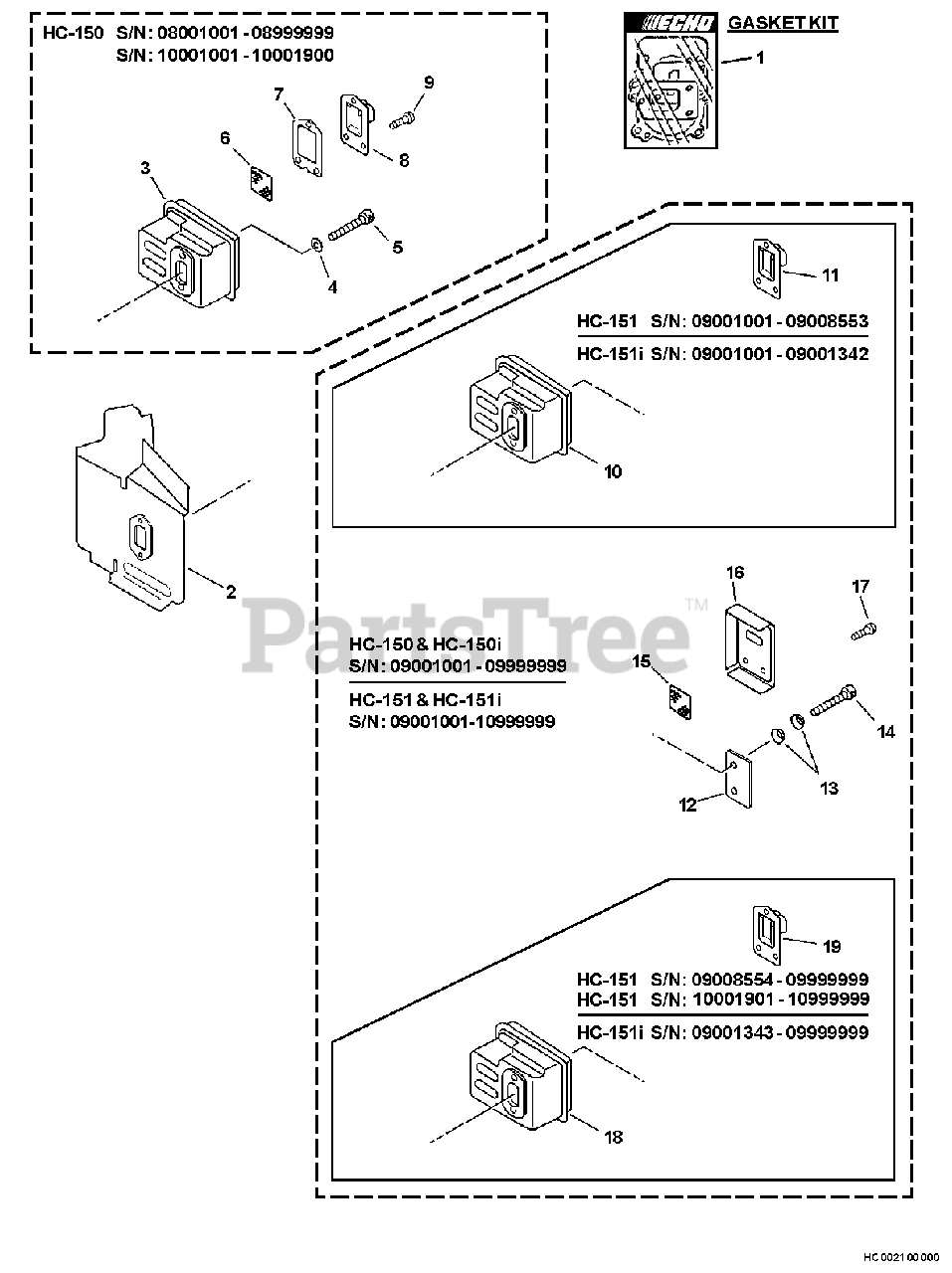

Exhaust Parts Diagram

  • Title

1

Echo P021012290

GASKET KIT

$33.99

$

Usually ships in 2-4 days

0

2

Echo V104000590

HEAT SHIELD, EXHAUST

Note: Included In GASKET KIT

$12.99

$

Usually ships in 2-4 days

0

3

Echo 14581011520

MUFFLER

$63.99

$

Usually ships in 2-4 days

0

4

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

5

Echo 90010505050

BOLT M5×50

$1.99

$

In Stock, Qty 11

0

6

Echo 14586240630

SCREEN, SPARK ARRESTER

$2.49

$

In Stock, Qty 20+

0

7

Echo 145866-42031

GASKET, EXHAUST

Note: Included In GASKET KIT

$2.99

$

In Stock, only 2 left!

0

8

Echo A313000610

GUIDE, EXHAUST

$11.99

$

Usually ships in 2-4 days

0

9

Echo 900242-04010

SCREW 4×10

$0.99

$

In Stock, Qty 20+

0

10

Echo A300000080

MUFFLER
(Superseded to Discontinued)

$

$

Not available

11

Echo A313000640

GUIDE, EXHAUST

$7.99

$

Usually ships in 2-4 days

0

12

Echo V150000371

PLATE, EYE

$1.49

$

In Stock, Qty 8

0

13

Echo V347000000

CONICAL WASHER

$0.99

$

In Stock, Qty 8

0

14

Echo 900105-05055

BOLT 5×55

$1.99

$

In Stock, Qty 20+

0

15

Echo 14586240630

SCREEN, SPARK ARRESTER

$2.49

$

In Stock, Qty 20+

0

16

Echo V104000072

GASKET, EXHAUST

Note: Included In GASKET KIT

$6.49

$

In Stock, only 1 left!

0

17

Echo 9136704012

SCREW 4×12

$0.99

$

In Stock, Qty 20+

0

18

Echo A300000521

MUFFLER

$84.99

$

Usually ships in 2-4 days

0

19

Echo A313000700

GUIDE, EXHAUST

$

$

Not available
