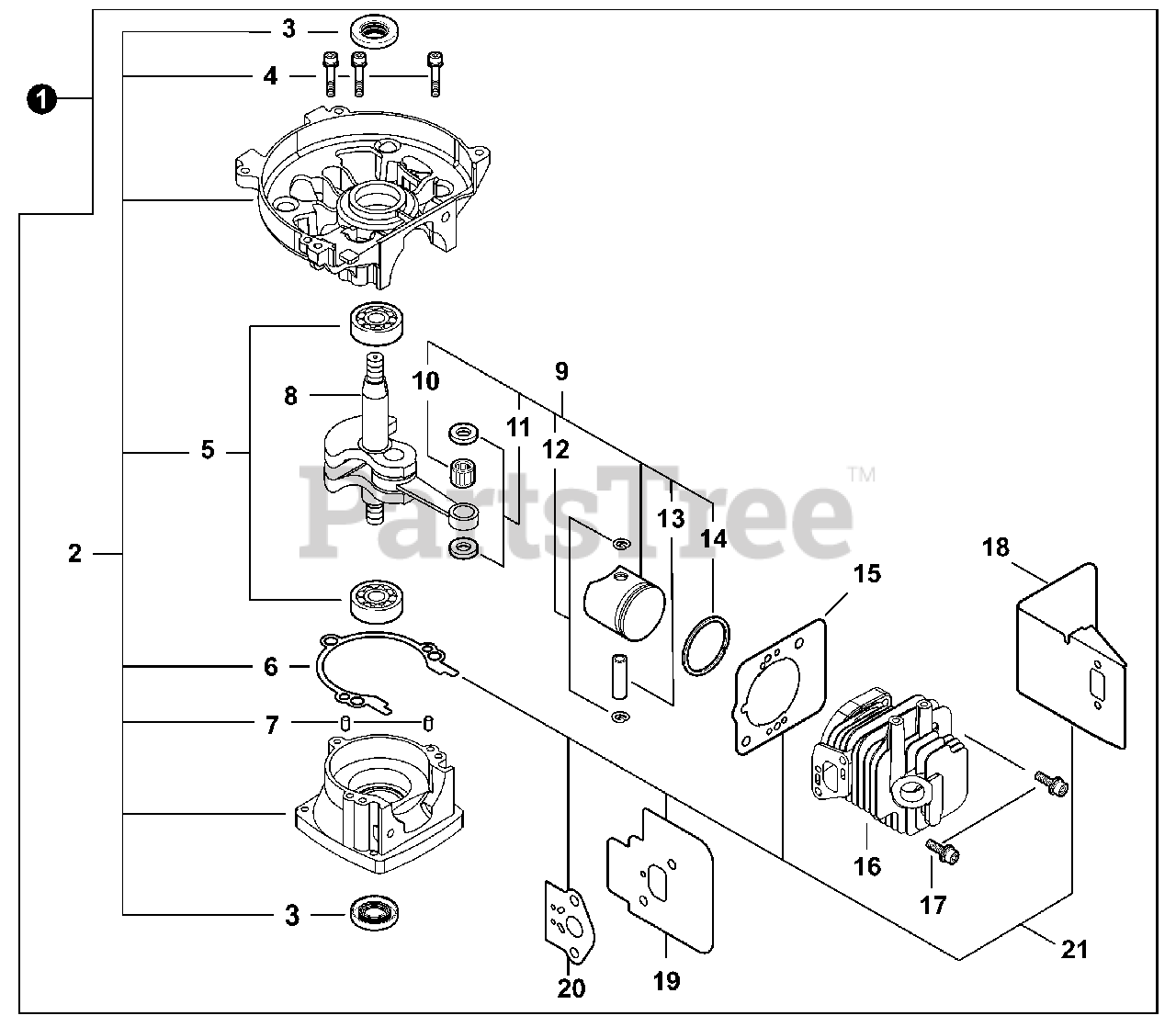

HC-152 - Echo Hedge Trimmer (SN: T45814001001 - T45814999999) Engine Parts Diagram

Hedge Trimmer

Engine Parts Diagram

  • Title

1

Echo SB1074

SHORT BLOCK

Note: Includes Items 2-20

$188.99

$

Usually ships in 2-4 days

0

2

Echo 10020411521

CRANKCASE KIT

Note: Includes Items 3-7

$144.99

$

Usually ships in 2-4 days

0

3

Echo 10021242031

SEAL, OIL 12

$7.49

$

In Stock, Qty 18

0

4

Echo 90016205028

BOLT 5×28

$2.49

$

In Stock, Qty 11

0

5

Echo 9403536201

BEARING, BALL 6201

$8.99

$

In Stock, Qty 17

0

6

Echo 10024242030

GASKET, CRANKCASE

$1.49

$

In Stock, Qty 20+

0

7

Echo 90033040080

PIN, LOCATING 4×8

$1.49

$

In Stock, Qty 17

0

8

Echo A011000313

CRANKSHAFT ASSY

$179.99

$

Usually ships in 2-4 days

0

9

Echo P021007772

PISTON KIT

Note: Includes Items 10-14

$52.99

$

Usually ships in 2-4 days

0

10

Echo 10011305930

BEARING, NEEDLE

$12.99

$

Usually ships in 2-4 days

0

11

Echo 10001408960

WASHER, THRUST

$3.99

$

Usually ships in 2-4 days

0

12

Echo 10001504630

RING, SNAP

$0.99

$

In Stock, Qty 20+

0

13

Echo 10001311520

PIN, PISTON 5×8×25.5

$7.99

$

Usually ships in 2-4 days

0

14

Echo A101000090

RING, PISTON

$

$

Not available

15

Echo V100000160

GASKET, CYLINDER

$6.99

$

In Stock, Qty 10

0

16

Echo A130000550

CYLINDER

$100.99

$

In Stock, only 2 left!

0

17

Echo 90016205022

BOLT 5×22

$0.99

$

In Stock, Qty 19

0

18

Echo V104001990

HEAT SHIELD, EXHAUST

$9.49

$

Usually ships in 2-4 days

0

19

Echo V103001590

HEAT SHIELD, INTAKE
(Superseded to V103001591)

$2.49

$

In Stock, Qty 5

0

20

Echo V103001580

GASKET, INTAKE

$2.49

$

In Stock, only 2 left!

0

21

Echo P021042290

GASKET KIT
(Superseded to P021042291)

$30.99

$

Usually ships in 2-4 days

0
