HC-155 - Echo Hedge Trimmer (SN: S68011001001 - S68011999999) Fuel System, Debris Guard S/N: S68011002897 - S68011999999 Parts Diagram

Hedge Trimmer

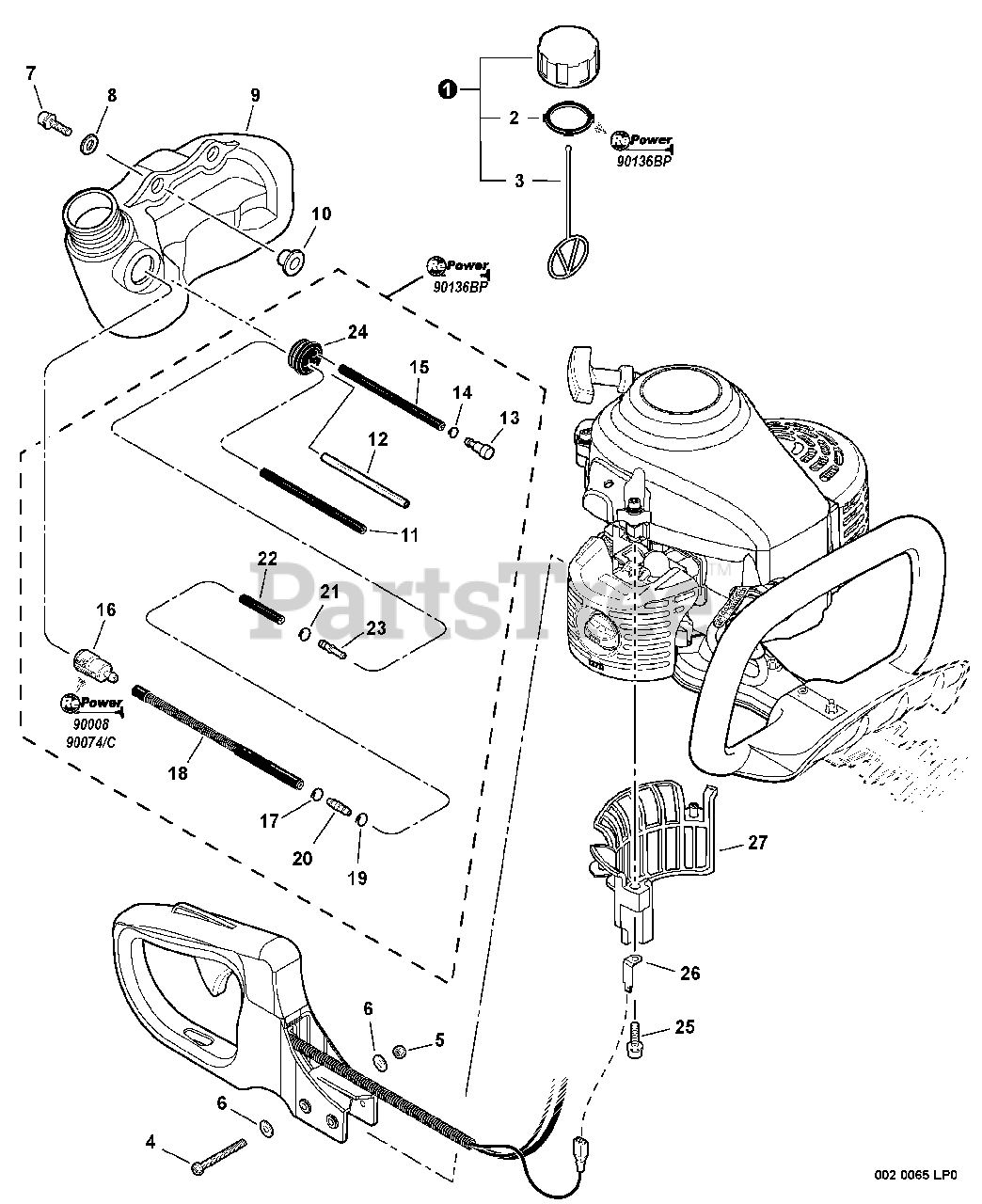

Fuel System, Debris Guard S/N: S68011002897 - S68011999999 Parts Diagram

  • Title

1

Echo P021040430

CAP ASSY, FUEL

Note: Includes ITEMS 2-3

$6.99

$

In Stock, Qty 13

0

2

Echo V107000150

GASKET, FUEL CAP

$4.99

$

In Stock, only 2 left!

0

3

Echo A365000060

CONNECTOR, CAP L= 123

$1.49

$

In Stock, Qty 20+

0

4

Echo 90022005045

SCREW 5×45

$0.99

$

In Stock, Qty 10

0

5

Echo 90056000005

NUT, LOCK M5

$1.49

$

In Stock, Qty 14

0

6

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

7

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

8

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

9

Echo A350000810

TANK, FUEL
(Superseded to A350002621)

$34.99

$

Usually ships in 2-4 days

0

10

Echo V353000231

COLLAR 5

$4.99

$

Usually ships in 2-4 days

0

11

Echo V471003670

PIPE, FUEL 3×5×61 BLACK
(Superseded to V471005590)

Note: RePower BULK OPTION: N/A

$4.49

$

In Stock, only 4 left!

0

12

Echo 13201040830

PIPE, FUEL 3×6×75 CLEAR

Note: RePower BULK OPTION: 90017

$2.49

$

In Stock, Qty 20+

0

13

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

14

Echo V490001240

CLIP Ø6

$0.99

$

In Stock, Qty 10

0

15

Echo V471003680

PIPE, FUEL 3×6×50 BLACK

Note: RePower BULK OPTION: 90015

$0.99

$

In Stock, Qty 8

0

16

Echo 131205-07320

FILTER, FUEL

$6.49

$

In Stock, Qty 20+

0

17

Echo 43741119830

CLIP 6.6 MM

$

$

Not available

18

Echo 13201212361

PIPE, FUEL 3×7×100 FLEXIBLE
(Superseded to 13201212362)

$4.49

$

In Stock, Qty 10

0

19

Echo V491001230

CLIP

$

$

Currently unavailable

20

Echo V186000510

CONNECTOR, PIPE

$1.99

$

In Stock, Qty 20+

0

21

Echo V491001230

CLIP

$

$

Currently unavailable

22

Echo V471001180

PIPE, FUEL 3×6×35 BLACK
(Superseded to V471001181)

Note: RePower BULK OPTION: N/A

$2.49

$

In Stock, Qty 20+

0

23

Echo V186000520

CONNECTOR, PIPE Ø5×Ø3.5

$0.99

$

In Stock, Qty 20+

0

24

Echo 13211555930

GROMMET, FUEL
(Superseded to 13211555931)

$2.99

$

In Stock, Qty 18

0

25

Echo 9111005016

BOLT 5×16

$0.99

$

In Stock, Qty 20+

0

26

Echo C152000410

CONNECTOR

$1.49

$

Usually ships in 2-4 days

0

27

Echo A127000170

SHIELD, DEBRIS

$8.49

$

Usually ships in 2-4 days

0

28

Echo 90008

FILTER KIT - REPOWER
(Superseded to 90152)

$21.99

$

In Stock, Qty 20+

0

29

Echo 90074

TUNE-UP KIT - REPOWER
(Superseded to 90152)

$21.99

$

In Stock, Qty 20+

0

29

Echo 90074C

TUNE-UP KIT - REPOWER
(Superseded to 90152)

Note: CANADA MODELS

$21.99

$

In Stock, Qty 20+

0

30

Echo 90136BP

FUEL SYSTEM KIT
(Superseded to 90136)

$

$

Not available
