HC-155 - Echo Hedge Trimmer (SN: S68011001001 - S68011999999) Intake Parts Diagram

Hedge Trimmer

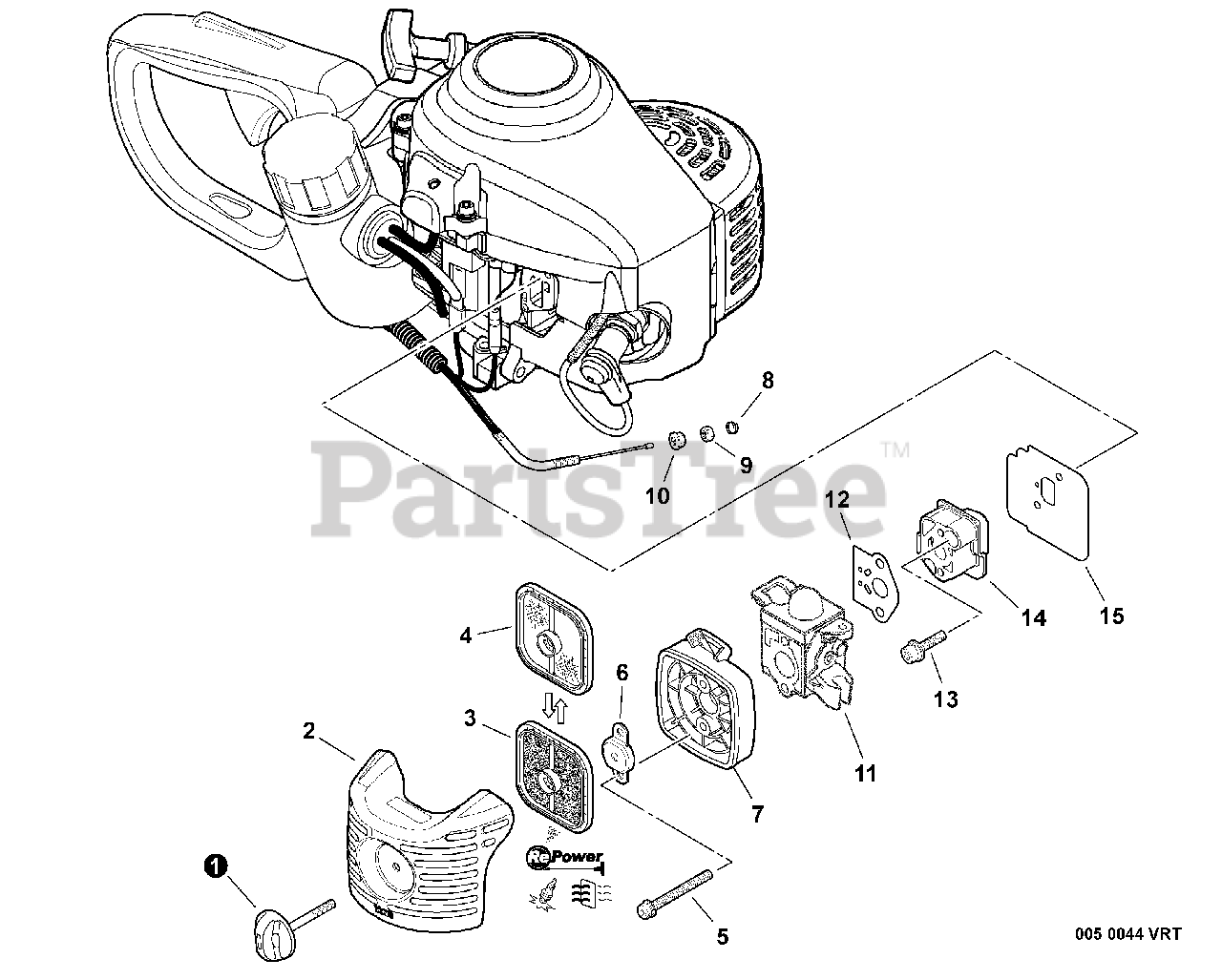

Intake Parts Diagram

  • Title

1

Echo V299000250

THUMBSCREW

$4.49

$

In Stock, Qty 20+

0

2

Echo A232000400

COVER, AIR FILTER

$13.99

$

In Stock, only 2 left!

0

3

Echo A226001410

FILTER, AIR - DOUBLE LAYER

$7.99

$

In Stock, Qty 20+

0

4

Echo 13031054130

FILTER, AIR - SINGLE LAYER
(Superseded to A226001410)

$7.99

$

In Stock, Qty 20+

0

5

Echo 90024205065

SCREW - 5X65

$0.99

$

In Stock, Qty 20+

0

6

Echo 12901152730

PLATE, PREVENT

$3.99

$

In Stock, Qty 20+

0

7

Echo P021012870

CASE, AIR FILTER

$12.99

$

In Stock, Qty 20+

0

8

Echo V490001100

CLIP

$1.49

$

In Stock, Qty 9

0

9

Echo 90050200006

NUT - 6

$0.99

$

In Stock, Qty 20+

0

10

Echo 90051800006

NUT - 6 -- FLANGE

$1.99

$

In Stock, Qty 20+

0

11

------------------

CARBURETOR

Note: See Carburetor Diagram For Details

$

$

Not available

12

Echo V103000410

GASKET, INTAKE

$1.99

$

In Stock, only 4 left!

0

13

Echo 90016205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

14

Echo A200000300

INSULATOR, INTAKE
(Superseded to A200001020)

$9.49

$

In Stock, only 2 left!

0

15

Echo V103000180

SHIELD, INTAKE

$1.99

$

In Stock, only 4 left!

0

TU

Echo 90074

RePower TUNE-UP KIT
(Superseded to 90152)

$20.99

$

In Stock, Qty 20+

0

FF

Echo 90008

RePower FILTER KIT
(Superseded to 90152)

$20.99

$

In Stock, Qty 20+

0
