HC-155 - Echo Hedge Trimmer (SN: S76212001001 - S76212999999) Fuel System, Debris Guard S/N: S76212001001 - S76212015340 Parts Diagram

Hedge Trimmer

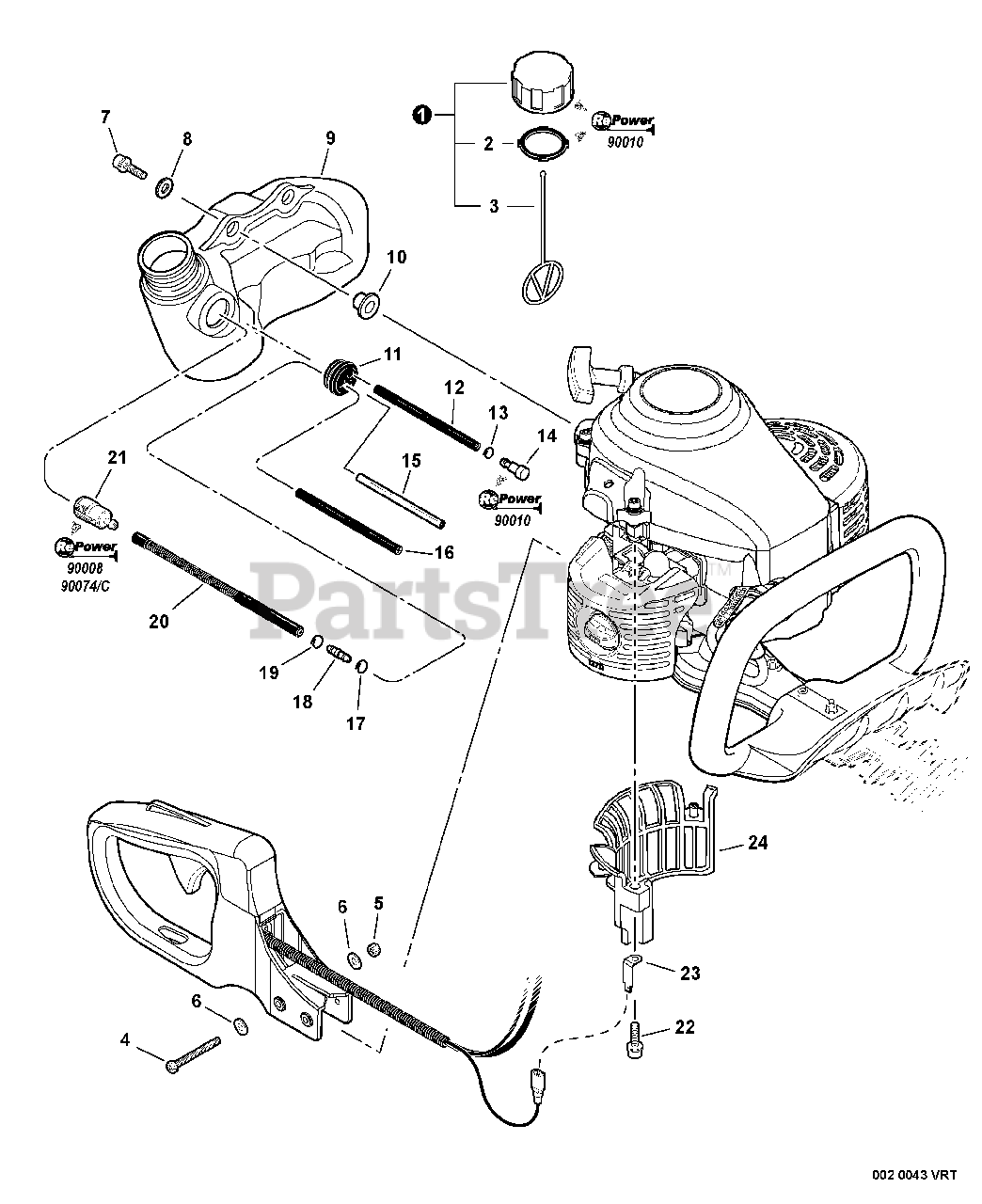

Fuel System, Debris Guard S/N: S76212001001 - S76212015340 Parts Diagram

  • Title

1

Echo P021012210

CAP ASSY, FUEL
(Superseded to P021012211)

Note: Includes ITEMS 2-3

$

$

Not available

2

Echo 131016-55830

GASKET, FUEL CAP

$

$

Not available

3

Echo A365000060

CONNECTOR, CAP L= 123

$1.49

$

In Stock, Qty 20+

0

4

Echo 90022005045

SCREW 5×45

$0.99

$

In Stock, Qty 10

0

5

Echo 90056000005

NUT, LOCK M5

$1.49

$

In Stock, Qty 14

0

6

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

7

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

8

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

9

Echo A350000810

TANK, FUEL
(Superseded to A350002621)

$34.99

$

Usually ships in 2-4 days

0

10

Echo V353000231

COLLAR 5

$4.99

$

Usually ships in 2-4 days

0

11

Echo 13211555930

GROMMET, FUEL
(Superseded to 13211555931)

$2.99

$

In Stock, Qty 18

0

12

Echo V471001880

PIPE - 3×5×65 -- BLACK
(Superseded to V471001881)

Note: RePower BULK OPTION: 90015

$1.99

$

In Stock, Qty 19

0

13

Echo 43741119830

CLIP 6.6 MM

$

$

Not available

14

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

15

Echo 13201040830

PIPE, FUEL 3×6×75 CLEAR

Note: RePower BULK OPTION: 90017

$2.49

$

In Stock, Qty 20+

0

16

Echo 13011054430

PIPE, FUEL 3×6×105 BLACK
(Superseded to 13011054431)

Note: RePower BULK OPTION: 90015

$2.99

$

In Stock, only 2 left!

0

17

Echo 132013-09820

CLIP 6 MM

$0.99

$

In Stock, Qty 8

0

18

Echo V186000140

CONNECTOR
(Superseded to V186000020)

$1.99

$

In Stock, Qty 20+

0

19

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0

20

Echo 13201212361

PIPE, FUEL 3×7×100 FLEXIBLE
(Superseded to 13201212362)

$4.49

$

In Stock, Qty 10

0

21

Echo 131205-07320

FILTER, FUEL

$6.49

$

In Stock, Qty 20+

0

22

Echo 9111005016

BOLT 5×16

$0.99

$

In Stock, Qty 20+

0

23

Echo C152000410

CONNECTOR

$1.49

$

Usually ships in 2-4 days

0

24

Echo A127000170

SHIELD, DEBRIS

$8.49

$

Usually ships in 2-4 days

0

25

Echo 90008

FILTER KIT - REPOWER
(Superseded to 90152)

$21.99

$

In Stock, Qty 20+

0

26

Echo 90010

CAP/VENT KIT - REPOWER
(Superseded to 90248)

$

$

Not available

27

Echo 90074

TUNE-UP KIT - REPOWER
(Superseded to 90152)

$21.99

$

In Stock, Qty 20+

0

27

Echo 90074C

TUNE-UP KIT - REPOWER
(Superseded to 90152)

Note: CANADA MODELS

$21.99

$

In Stock, Qty 20+

0
