HC-155 - Echo Hedge Trimmer (SN: U07915001001 - U07915999999) Engine Parts Diagram

Hedge Trimmer

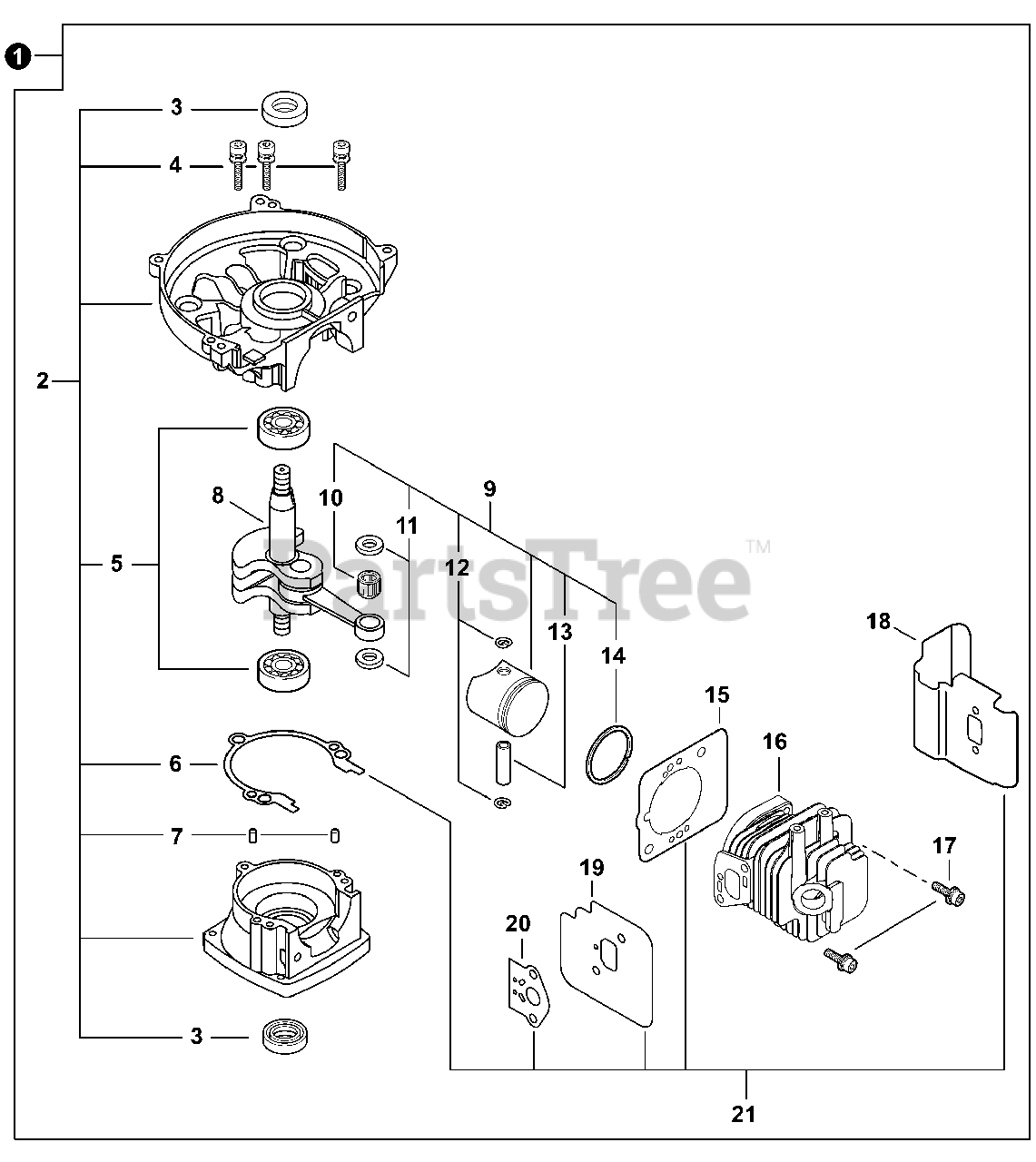

Engine Parts Diagram

  • Title

1

Echo SB1075

SHORT BLOCK

Note: Includes ITEM 2-20

$277.99

$

In Stock, only 3 left!

0

2

Echo 10020452133

CRANKCASE KIT
(Superseded to P100001870)

Note: Includes ITEMS 3-7

$

$

Not available

3

Echo 10021242031

SEAL, OIL 12

$7.99

$

In Stock, Qty 5

0

4

Echo 90016205028

BOLT 5×28

$2.49

$

In Stock, Qty 11

0

5

Echo 9403536201

BEARING, BALL 6201

$9.99

$

In Stock, only 3 left!

0

6

Echo 10024242030

GASKET, CRANKCASE

$1.99

$

In Stock, Qty 10

0

7

Echo 90033040080

PIN, LOCATING 4×8

$1.49

$

In Stock, Qty 13

0

8

Echo A011000223

CRANKSHAFT

$193.99

$

Usually ships in 2-4 days

0

9

Echo P021007772

PISTON KIT

Note: Includes ITEMS 10-14

$52.99

$

Usually ships in 2-4 days

0

10

Echo 10011305930

BEARING, NEEDLE

$13.99

$

Usually ships in 2-4 days

0

11

Echo 10001408960

WASHER, THRUST

$3.99

$

Usually ships in 2-4 days

0

12

Echo 10001504630

RING, SNAP

$0.99

$

In Stock, Qty 20+

0

13

Echo 10001311520

PIN, PISTON 8

$8.49

$

In Stock, only 2 left!

0

14

Echo A101000090

RING, PISTON

$

$

Not available

15

Echo V100000160

GASKET, CYLINDER

$7.49

$

In Stock, Qty 15

0

16

Echo A130000550

CYLINDER

$107.99

$

In Stock, only 2 left!

0

17

Echo 90016205022

BOLT 5×22

$0.99

$

In Stock, Qty 5

0

18

Echo V104000850

HEAT SHIELD, EXHAUST

$16.99

$

In Stock, Qty 7

0

19

Echo V103000180

HEAT SHIELD, INTAKE

$2.49

$

In Stock, only 4 left!

0

20

Echo V103000410

GASKET, INTAKE

$1.99

$

In Stock, only 3 left!

0

21

Echo P021013501

GASKET KIT
(Superseded to P021013502)

$35.99

$

Usually ships in 2-4 days

0
