HC-155 - Echo Hedge Trimmer (SN: U81612001001 - U81612999999) Starter Parts Diagram

Hedge Trimmer

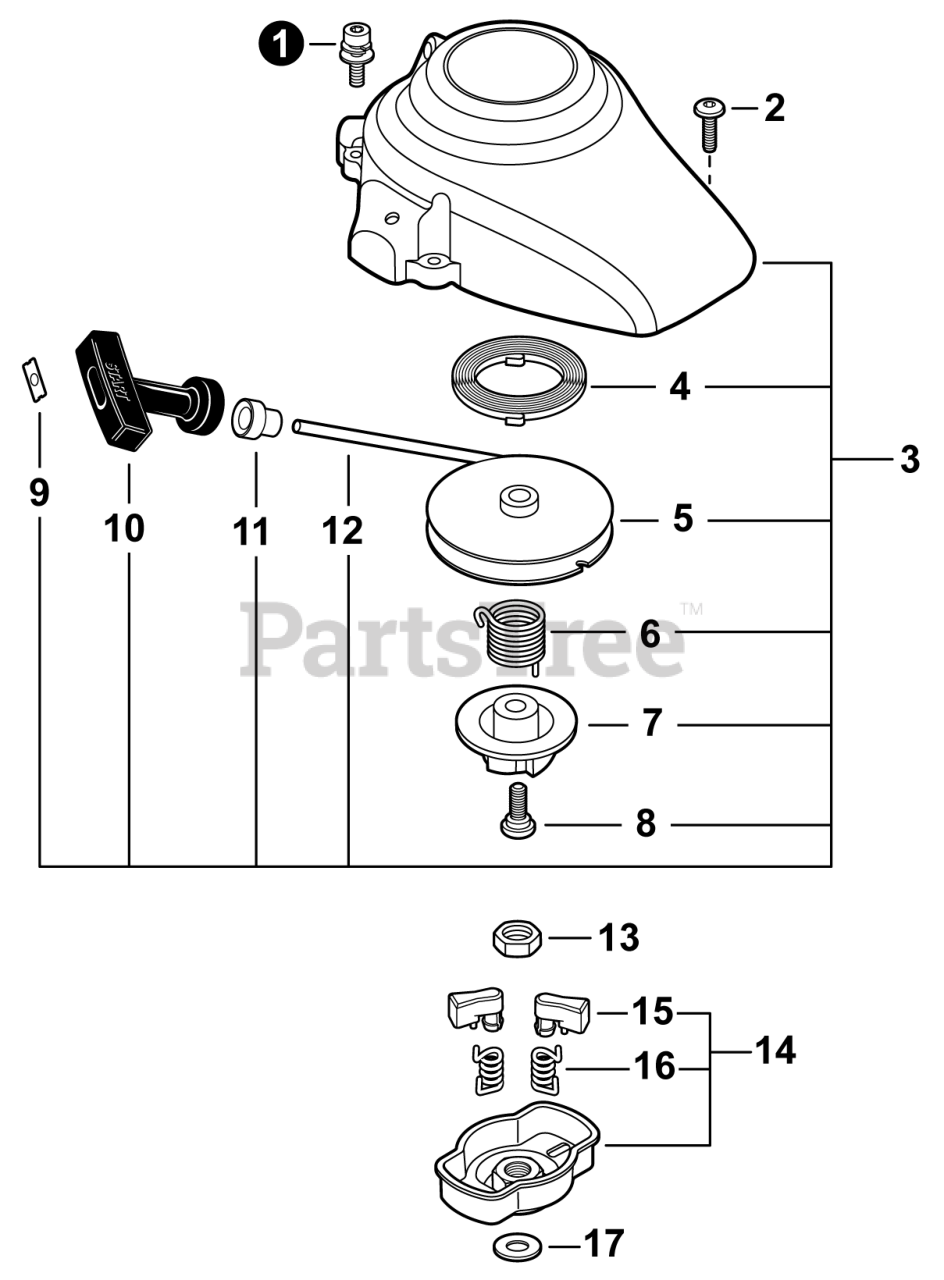

Starter Parts Diagram

  • Title

1

Echo V202000830

BOLT 4x16

$1.99

$

In Stock, Qty 20+

0

2

Echo V202000030

BOLT 4x12

$1.49

$

In Stock, Qty 5

0

3

Echo A051001111

STARTER ASSY, RECOIL

Note: Includes Items 4-12

$60.99

$

In Stock, only 3 left!

0

4

Echo P022019680

SPRING, RECOIL

$10.99

$

In Stock, Qty 20+

0

5

Echo P022034080

REEL, ROPE

$7.99

$

Usually ships in 2-4 days

0

6

Echo V450000150

SPRING, COMPRESSION

$9.99

$

In Stock, only 3 left!

0

7

Echo P022034090

PAWL CATCHER

$7.49

$

Usually ships in 2-4 days

0

8

Echo V253000310

SCREW 5

$1.99

$

In Stock, only 2 left!

0

9

Echo P022037670

RETAINER, ROPE

$2.49

$

In Stock, only 2 left!

0

10

Echo 17722827030

GRIP, STARTER

$6.99

$

In Stock, Qty 15

0

11

Echo 17722742030

GUIDE, ROPE

$2.99

$

Usually ships in 2-4 days

0

12

Echo P022008260

ROPE, STARTER 3x700

$5.99

$

Usually ships in 2-4 days

0

13

Echo 90051200008

NUT 8

$1.49

$

Usually ships in 2-4 days

0

14

Echo A052000210

PAWL ASSY, STARTER

Note: Includes Items 15-16

$15.99

$

Usually ships in 2-4 days

0

15

Echo P022020030

PAWL, STARTER

$3.49

$

In Stock, Qty 9

0

16

Echo P022007980

SPRING, RETURN

$4.49

$

In Stock, Qty 6

0

17

Echo 90060000008

WASHER 8.5x16x1.2

$0.99

$

In Stock, Qty 7

0
