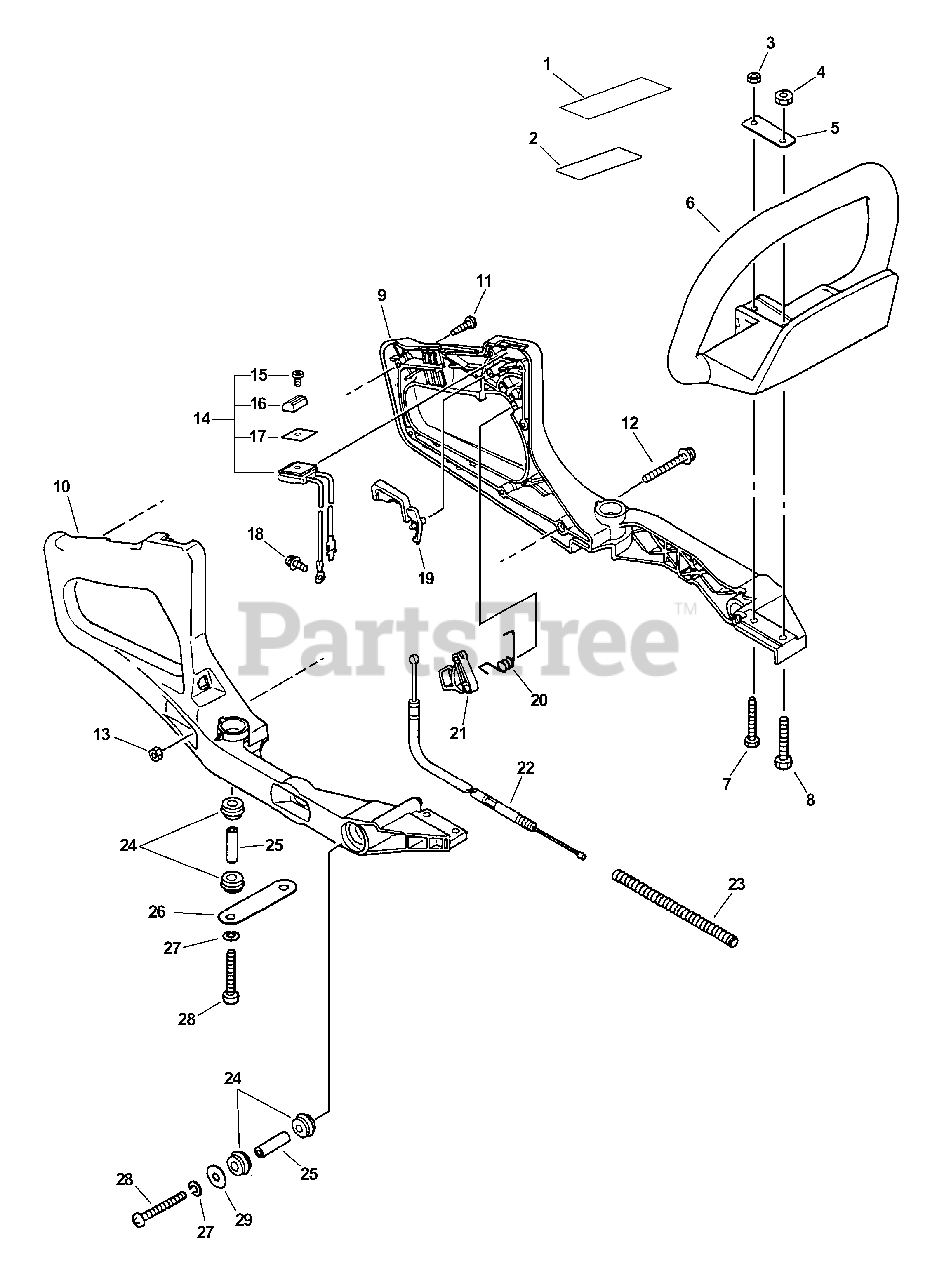

HC-160 - Echo Hedge Trimmer (SN: 05001001 - 05999999) Stop Switch, Throttle Cable, Handles Parts Diagram

Hedge Trimmer

Stop Switch, Throttle Cable, Handles Parts Diagram

  • Title

1

Echo X505000270

LABEL, CAUTION
(Superseded to X505000271)

$3.99

$

Usually ships in 2-4 days

0

2

Echo X505000290

LABEL, CAUTION

$2.49

$

Usually ships in 2-4 days

0

3

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

4

Echo 900500-00006

NUT, HEX M6

$0.99

$

In Stock, Qty 20+

0

5

Echo 35161105360

PLATE, EYE

$8.99

$

In Stock, only 2 left!

0

6

Echo 35161005360

HANDLE, SUPPORT

$47.99

$

In Stock, only 2 left!

0

7

Echo 90010005035

BOLT 5×35 SP

$0.99

$

In Stock, Qty 5

0

8

Echo 90010006035

BOLT - 6×32

$0.99

$

Usually ships in 2-4 days

0

9

Echo 35112906960

HANDLE, REAR - LEFT
(Superseded to 35112906961)

$

$

Not available

10

Echo 35111006960

HANDLE, REAR - RIGHT
(Superseded to 35111006961)

$29.99

$

Usually ships in 2-4 days

0

11

Echo 900253-04025

SCREW 4×25

$0.99

$

In Stock, Qty 9

0

12

Echo 90024205064

SCREW 5×64

$1.49

$

In Stock, Qty 9

0

13

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

14

Echo A440000330

IGNITION SWITCH ASSY

Note: Includes ITEMS 15-17

$13.99

$

Usually ships in 2-4 days

0

15

Echo 9154503010

SCREW 3×10

$0.99

$

In Stock, Qty 20+

0

16

Echo 16341049231

KNOB, SWITCH - ORANGE

$4.99

$

In Stock, Qty 19

0

17

Echo 89015712330

LABEL, SWITCH

$3.99

$

In Stock, only 1 left!

0

18

Echo 90023805010

SCREW 5×10

$0.99

$

In Stock, Qty 13

0

19

Echo 178012-05960

LOCKOUT, THROTTLE

$6.99

$

In Stock, only 2 left!

0

20

Echo 178013-35631

SPRING, TORSION

$2.99

$

In Stock, Qty 5

0

21

Echo 178010-05960

TRIGGER, THROTTLE

$6.49

$

In Stock, only 2 left!

0

22

Echo V430000630

CABLE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

23

Echo 17812706960

PIPE

$2.99

$

In Stock, only 2 left!

0

24

Echo 35122806960

CUSHION

$4.99

$

In Stock, only 3 left!

0

25

Echo 35124101260

SPACER
(Superseded to 35124101261)

$3.49

$

In Stock, Qty 16

0

26

Echo 35124206961

PLATE, EYE

$2.99

$

Usually ships in 2-4 days

0

27

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

28

Echo 900220-05040

SCREW 5×40

$0.99

$

In Stock, Qty 8

0

29

Echo 35124906960

WASHER

$0.99

$

In Stock, Qty 8

0
