HC-160 - Echo Hedge Trimmer (SN: 10001001 - 10999999) Exhaust Parts Diagram

Hedge Trimmer

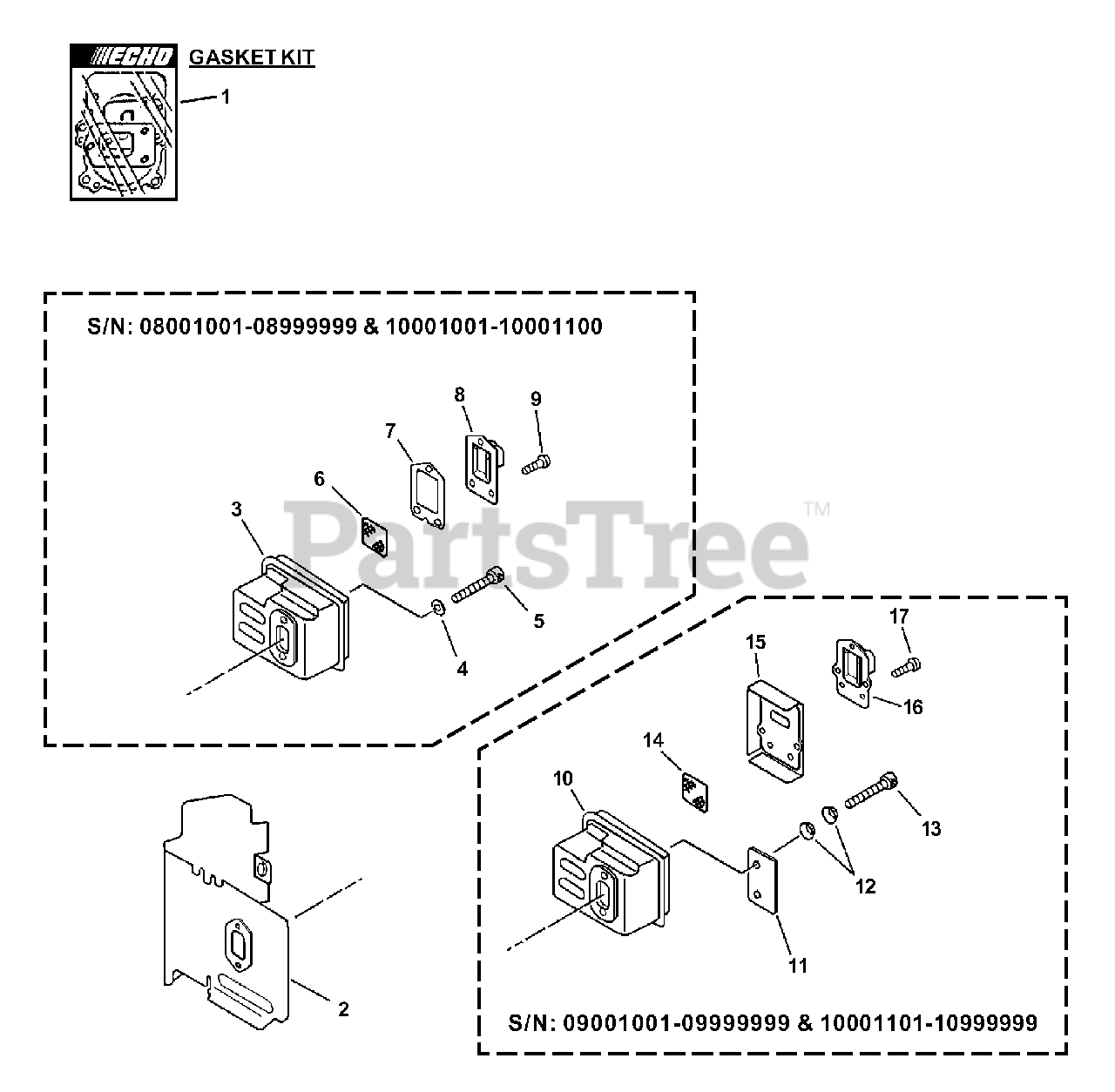

Exhaust Parts Diagram

  • Title

1

Echo P021004611

GASKET KIT
(Superseded to P021004613)

$44.99

$

Usually ships in 2-4 days

0

2

Echo V104000640

SHIELD, EXHAUST
(Superseded to Discontinued)

Note: Included In GASKET KIT

$

$

Not available

3

Echo 145806-42030

MUFFLER

Note: S/N: 08001001-08999999 & 10001001-10001100

$55.99

$

In Stock, only 1 left!

0

4

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

Note: S/N: 08001001-08999999 & 10001001-10001100

$0.99

$

In Stock, Qty 20+

0

5

Echo 900105-05055

BOLT 5×55

Note: S/N: 08001001-08999999 & 10001001-10001100

$1.99

$

In Stock, Qty 20+

0

6

Echo 14586240630

SCREEN, SPARK ARRESTER

Note: S/N: 08001001-08999999 & 10001001-10001100

$2.49

$

In Stock, Qty 20+

0

7

Echo 145866-42031

GASKET, EXHAUST

Note: Included In GASKET KIT S/N: 08001001-08999999 & 10001001-10001100

$2.99

$

In Stock, only 2 left!

0

8

Echo A313000580

GUIDE, EXHAUST

Note: S/N: 08001001-08999999 & 10001001-10001100

$10.99

$

In Stock, only 4 left!

0

9

Echo 900242-04010

SCREW 4×10

Note: S/N: 08001001-08999999 & 10001001-10001100

$0.99

$

In Stock, Qty 20+

0

10

Echo A300000141

MUFFLER
(Superseded to A300000790)

Note: S/N: 09001001-09999999 & 10001101-10999999

$88.99

$

In Stock, Qty 7

0

11

Echo V150000371

PLATE, EYE

Note: S/N: 09001001-09999999 & 10001101-10999999

$1.49

$

In Stock, Qty 8

0

12

Echo V347000000

CONICAL WASHER

Note: S/N: 09001001-09999999 & 10001101-10999999

$0.99

$

In Stock, Qty 8

0

13

Echo 900105-05055

BOLT 5×55

Note: S/N: 09001001-09999999 & 10001101-10999999

$1.99

$

In Stock, Qty 20+

0

14

Echo 14586240630

SCREEN, SPARK ARRESTER

Note: S/N: 09001001-09999999 & 10001101-10999999

$2.49

$

In Stock, Qty 20+

0

15

Echo V104000360

GASKET, EXHAUST
(Superseded to V104001760)

Note: Included In GASKET KIT S/N: 09001001-09999999 & 10001101-10999999

$8.49

$

In Stock, Qty 5

0

16

Echo A313000600

GUIDE, EXHAUST

Note: S/N: 09001001-09999999 & 10001101-10999999

$11.99

$

In Stock, only 2 left!

0

17

Echo 9136704012

SCREW 4×12

Note: S/N: 09001001-09999999 & 10001101-10999999

$0.99

$

In Stock, Qty 20+

0
