HC-160 - Echo Hedge Trimmer (SN: 10001001 - 10999999) Intake Parts Diagram

Hedge Trimmer

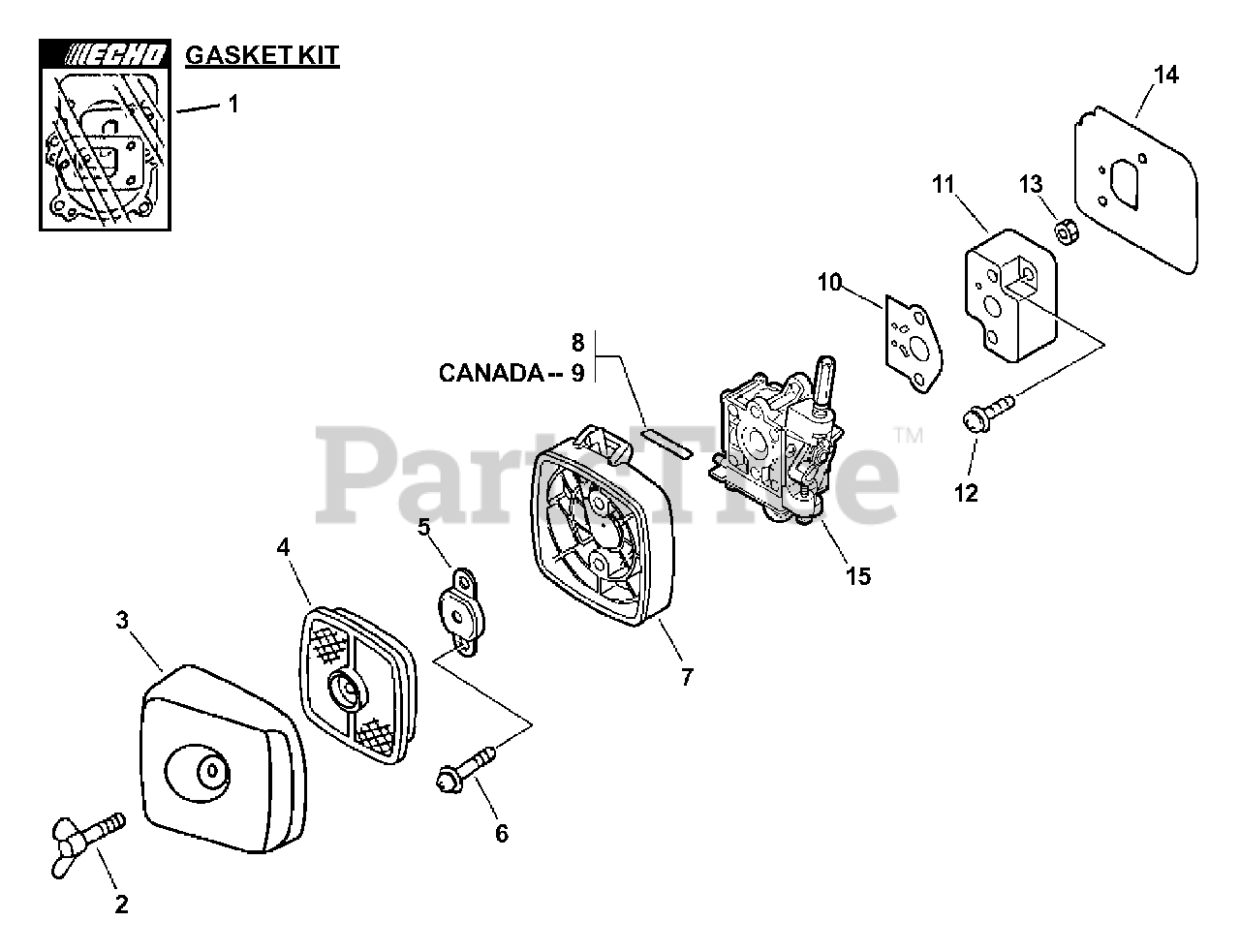

Intake Parts Diagram

  • Title

1

Echo P021004611

GASKET KIT
(Superseded to P021004613)

$44.99

$

Usually ships in 2-4 days

0

2

Echo 21041752730

BOLT, WING 5×20

$1.99

$

In Stock, Qty 14

0

3

Echo 13031306563

COVER, AIR FILTER - GRAY

$7.99

$

In Stock, Qty 20+

0

4

Echo 13031054130

FILTER, AIR - SINGLE LAYER
(Superseded to A226001410)

$8.99

$

In Stock, Qty 20+

0

5

Echo 12901152730

PLATE, PREVENT

$4.49

$

In Stock, Qty 5

0

6

Echo 90022005065

SCREW 5×65

$0.99

$

In Stock, Qty 20+

0

7

Echo P021000991

CASE, AIR FILTER - GRAY

$10.99

$

In Stock, Qty 6

0

8

Echo 89012152730

LABEL, CHOKE

$1.49

$

In Stock, Qty 17

0

9

Echo 89033252730

LABEL, CHOKE

Note: CANADA MODELS

$1.49

$

In Stock, Qty 20+

0

10

Echo 13001013410

GASKET, CARBURETOR

Note: Included In GASKET KIT

$1.99

$

In Stock, Qty 20+

0

11

Echo 13001744330

INSULATOR, INTAKE
(Superseded to P021015350)

$4.99

$

In Stock, only 4 left!

0

12

Echo 900238-05020

SCREW 5×20

$0.99

$

In Stock, Qty 8

0

13

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

14

Echo V103000180

HEAT SHIELD, INTAKE

Note: Included In GASKET KIT

$2.49

$

In Stock, only 3 left!

0

15

CARBURETOR

Note: See Carburetor Diagram For Details

$

$

Not available
