HC-1600 - Echo Hedge Trimmer (Type 1) Carburetor S/N: 001001-006000 Parts Diagram

Hedge Trimmer (Type 1)

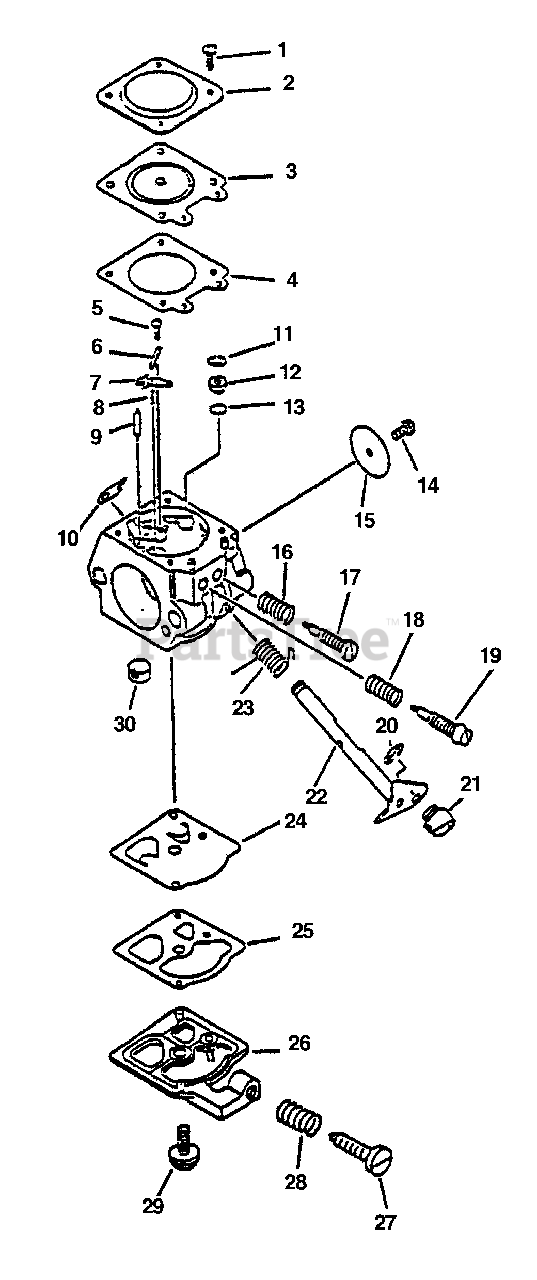

Carburetor S/N: 001001-006000 Parts Diagram

  • Title

Echo 12300005961

CARBURETOR WT-168A
(Superseded to Discontinued)

Note: INCLUDES THE FOLLOWING

$

$

Not available

1

------------------

SCREW

Note: INCLUDED IN REPAIR KIT P/N 12310005960

$

$

Not available

2

Echo 12314203930

COVER, METERING

$4.99

$

In Stock, only 2 left!

0

3

------------------

DIAPHRAGM, METERING

Note: INCLUDED IN REPAIR KIT P/N 12310005960 AND DIAPHRAGM/GASKET KIT P/N 12310105960

$

$

Not available

4

------------------

GASKET, METERING

Note: INCLUDED IN REPAIR KIT P/N 12310005960 AND DIAPHRAGM/GASKET KIT P/N 12310105960

$

$

Not available

5

------------------

SCREW, METERING LEVER PIN

Note: INCLUDED IN REPAIR KIT P/N 12310005960

$

$

Not available

6

------------------

PIN, METERING LEVER

Note: INCLUDED IN REPAIR KIT P/N 12310005960

$

$

Not available

7

------------------

LEVER, METERING

Note: INCLUDED IN REPAIR KIT P/N 12310005960

$

$

Not available

8

------------------

SPRING, METERING LEVER

Note: INCLUDED IN REPAIR KIT P/N 12310005960

$

$

Not available

9

------------------

VALVE, NEEDLE

Note: INCLUDED IN REPAIR KIT P/N 12310005960

$

$

Not available

10

Echo 12312715030

RING, RETAINING

$0.99

$

In Stock, Qty 6

0

11

Echo 12316910630

RING, RETAINING

$1.49

$

In Stock, Qty 5

0

12

------------------

JET - 40

Note: INCLUDED IN REPAIR KIT P/N 12310005960

$

$

Not available

13

------------------

O-RING

Note: INCLUDED IN REPAIR KIT P/N 12310005960

$

$

Not available

14

------------------

SCREW, VALVE

Note: INCLUDED IN REPAIR KIT P/N 12310005960

$

$

Not available

15

Echo 12311605961

VALVE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

16

------------------

SPRING, LOW SPEED NEEDLE

Note: INCLUDED IN REPAIR KIT P/N 12310005960

$

$

Not available

17

------------------

NEEDLE - LOW SPEED

Note: INCLUDED IN REPAIR KIT P/N 12310005960

$

$

Not available

18

------------------

SPRING, HIGH SPEED NEEDLE

Note: INCLUDED IN REPAIR KIT P/N 12310005960

$

$

Not available

19

------------------

NEEDLE - HIGH SPEED

Note: INCLUDED IN REPAIR KIT P/N 12310005960

$

$

Not available

20

Echo 12317307930

RING, RETAINING

$1.49

$

Usually ships in 2-4 days

0

21

Echo 12317204320

SWIVEL

$2.49

$

Usually ships in 2-4 days

0

22

Echo 12311705960

SHAFT, THROTTLE

$8.49

$

Usually ships in 2-4 days

0

23

Echo 12311309660

SPRING, THROTTLE RETURN

$1.49

$

In Stock, Qty 11

0

24

------------------

DIAPHRAGM, PURGE

Note: INCLUDED IN REPAIR KIT P/N 12310005960 AND DIAPHRAGM/GASKET KIT P/N 12310105960

$

$

Not available

25

------------------

GASKET, PURGE

Note: INCLUDED IN REPAIR KIT P/N 12310005960 AND DIAPHRAGM/GASKET KIT P/N 12310105960

$

$

Not available

26

Echo 12312402960

COVER, PUMP

$6.99

$

Usually ships in 2-4 days

0

27

Echo 12313404260

SCREW, IDLE ADJUST

$2.49

$

In Stock, only 2 left!

0

28

Echo 12313304260

SPRING, IDLE ADJUST

$7.49

$

In Stock, Qty 5

0

29

Echo 12311003930

SCREW, PUMP COVER

$0.99

$

Usually ships in 2-4 days

0

30

------------------

STRAINER

Note: INCLUDED IN REPAIR KIT P/N 12310005960

$

$

Not available

Echo 12310005960

REPAIR KIT

$21.99

$

Usually ships in 2-4 days

0

Echo 12310105960

DIAPHRAGM/GASKET KIT

$

$

Not available
