HC-1600 - Echo Hedge Trimmer (Type 1) Engine, Crankcase, Cover Parts Diagram

Hedge Trimmer (Type 1)

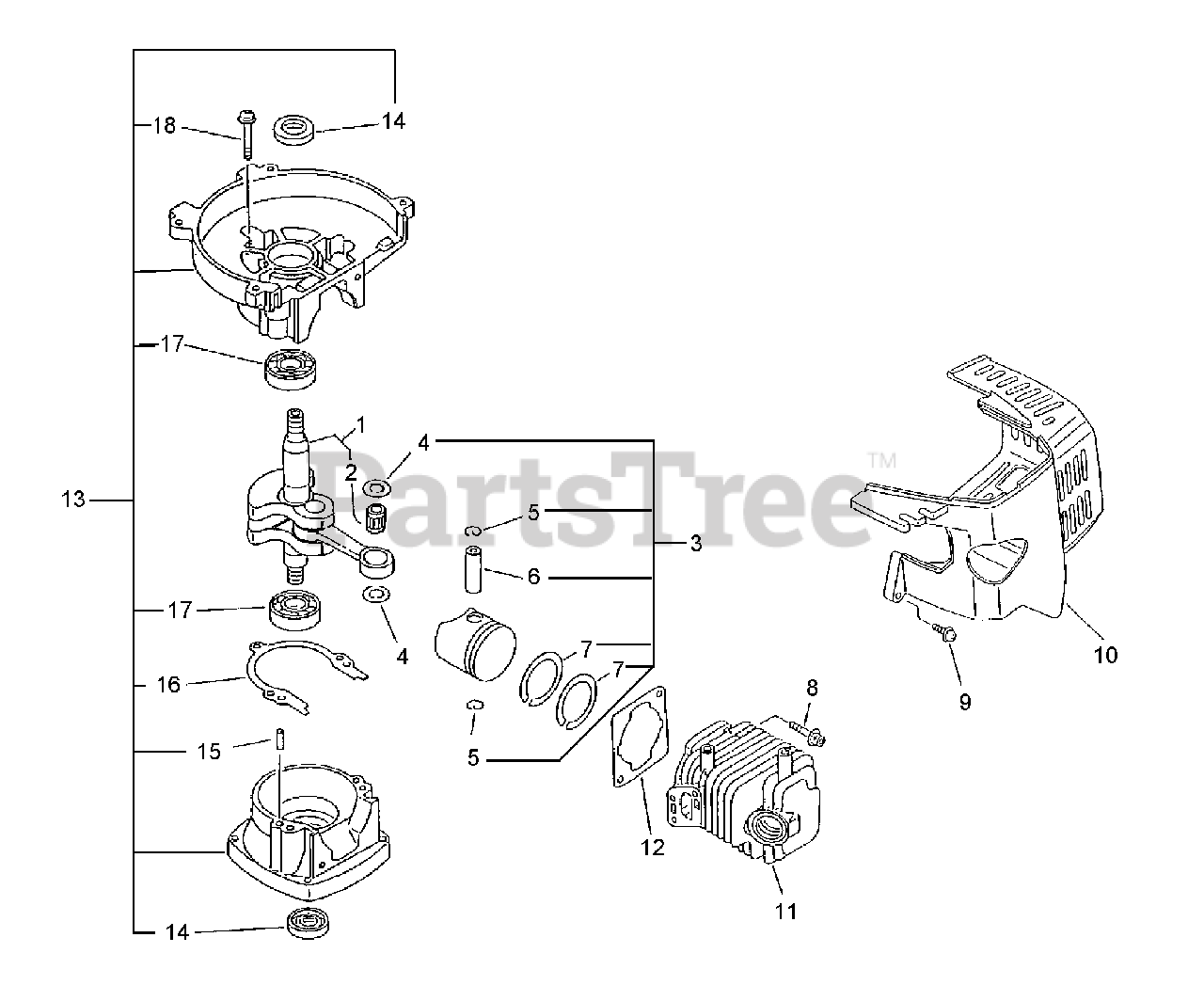

Engine, Crankcase, Cover Parts Diagram

  • Title

1

CRANKSHAFT ASSY

Note: INCLUDES ITEM 2 (USE P/N SB1032)

$

$

Not available

2

Echo 10001251230

BEARING, NEEDLE
(Superseded to V553000010)

Note: S/N 001001 - 047406

$11.99

$

In Stock, only 2 left!

0

2

Echo 10011305930

BEARING, NEEDLE

Note: S/N 047407 & UP

$13.99

$

Usually ships in 2-4 days

0

3

Echo 100000-44331

PISTON KIT

Note: S/N 001001 - 027999. INCLUDES ITEMS 4 - 7

$78.99

$

Usually ships in 2-4 days

0

3

Echo 10000011520

PISTON KIT
(Superseded to 10000011521)

Note: S/N 028000 & UP. INCLUDES ITEMS 4 - 7

$77.99

$

In Stock, only 2 left!

0

4

Echo 100014-11520

WASHER, THRUST

Note: S/N 001001 - 047406

$3.99

$

In Stock, only 2 left!

0

4

Echo 10001408960

WASHER, THRUST

Note: S/N 047407 & UP

$3.99

$

Usually ships in 2-4 days

0

5

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

6

Echo 100013-11520

PIN, PISTON 8

$8.49

$

In Stock, only 2 left!

0

7

Echo 100011-05330

RING, PISTON
(Superseded to 10001105330)

$10.99

$

In Stock, Qty 8

0

8

Echo 900162-05022

BOLT 5×22

$0.99

$

In Stock, only 3 left!

0

9

Echo 90016204022

SCREW 4×22

$0.99

$

In Stock, Qty 20+

0

10

Echo 10151408960

COVER, CYLINDER
(Superseded to Discontinued)

$

$

Not available

11

Echo 101011-45230

CYLINDER

Note: S/N 001001 - 047406

$153.99

$

Usually ships in 2-4 days

0

11

Echo 10101106562

CYLINDER

Note: S/N 047407 & UP

$130.99

$

Usually ships in 2-4 days

0

12

Echo 101010-44332

GASKET, CYLINDER

Note: INCLUDED IN KIT P/N 88900006560

$4.99

$

In Stock, Qty 6

0

13

CRANKCASE SET

Note: INCLUDES ITEMS 14-18 (USE P/N SB1032)

$

$

Not available

14

Echo 100212-42031

SEAL, OIL 12

$7.99

$

In Stock, Qty 20+

0

15

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, only 4 left!

0

16

GASKET, CRANKCASE

Note: INCLUDED IN KIT P/N 88900006560

$

$

Not available

17

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

18

Echo 900162-05028

BOLT 5×28

$2.49

$

In Stock, Qty 10

0

Echo SB1032

SHORT BLOCK HC-1600/2000 1E
(Superseded to Discontinued)

$

$

Not available

Echo 88900006560

GASKET KIT
(Superseded to P021000350)

Note: ENGINE REPOWER.INCLUDES THE FOLLOWING

$15.99

$

Usually ships in 2-4 days

0

Echo 101010-44332

GASKET, CYLINDER

Note: ENGINE REPOWER.

$4.99

$

In Stock, Qty 6

0

GASKET, CRANKCASE

Note: ENGINE REPOWER.

$

$

Not available

Echo V103000490

HEAT SHIELD, INTAKE
(Superseded to V103001360)

Note: ENGINE REPOWER.

$2.99

$

In Stock, Qty 10

0

Echo 130016-42031

GASKET, INTAKE

Note: ENGINE REPOWER.

$1.49

$

In Stock, Qty 20+

0

Echo V104000160

GASKET, EXHAUST

Note: ENGINE REPOWER.

$2.49

$

In Stock, Qty 20+

0

Echo 145866-42031

GASKET, EXHAUST

Note: ENGINE REPOWER.

$2.99

$

In Stock, only 2 left!

0

Echo 61041405360

GASKET, GEAR CASE

Note: ENGINE REPOWER.

$1.49

$

In Stock, only 2 left!
