HC-1600 - Echo Hedge Trimmer (Type 1) Engine, Crankcase, Cover Parts Diagram

Hedge Trimmer (Type 1)

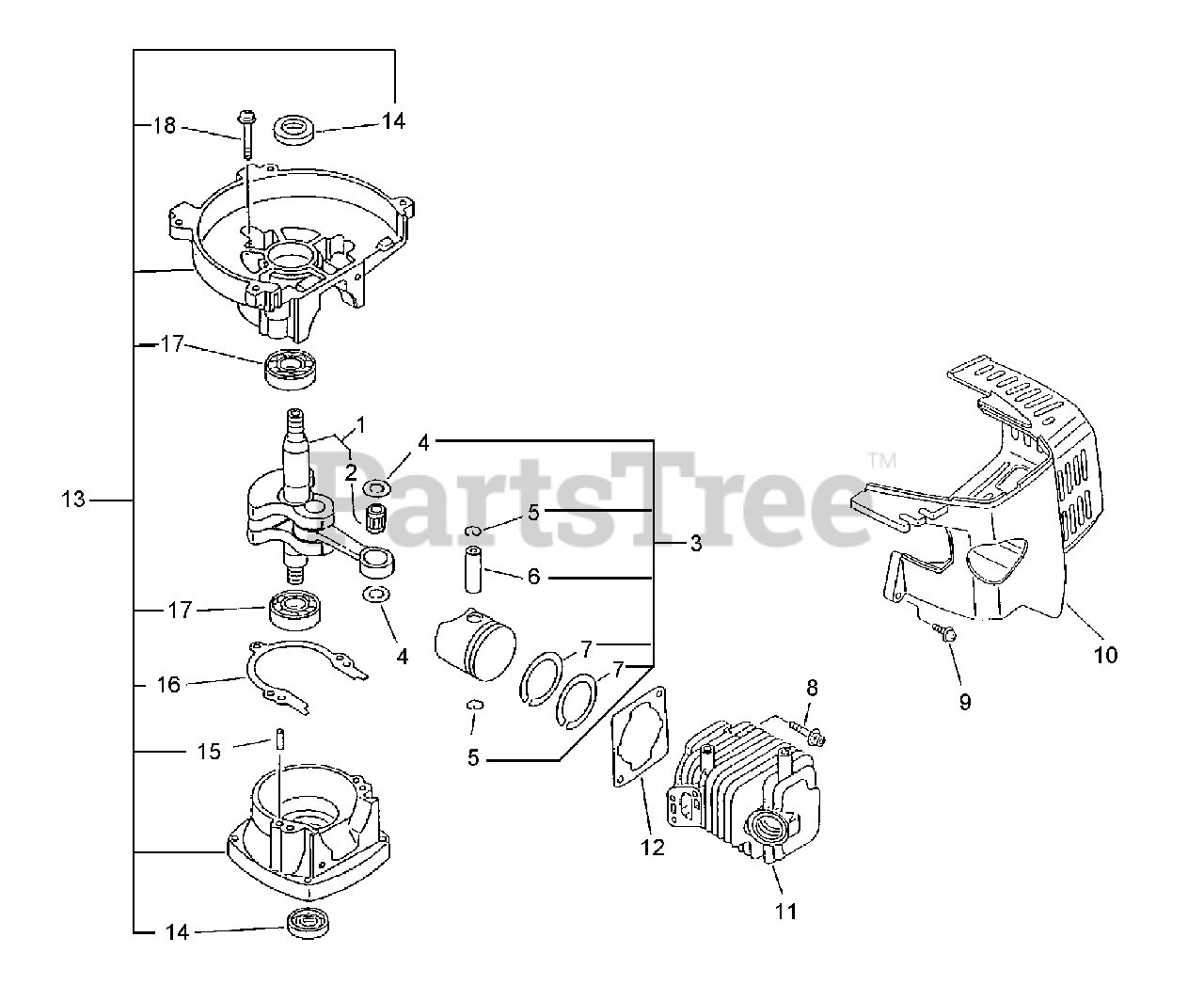

Engine, Crankcase, Cover Parts Diagram

  • Title

1

------------------

CRANKSHAFT ASSY

Note: INCLUDES ITEM 2 (USE P/N SB1032)

$

$

Not available

2

Echo 10001251230

BEARING, NEEDLE
(Superseded to V553000010)

Note: S/N 001001 - 047406

$11.99

$

In Stock, only 2 left!

0

2

Echo 10011305930

BEARING, NEEDLE - 8

Note: S/N 047407 & UP

$13.99

$

Usually ships in 2-4 days

0

3

Echo 10000044331

PISTON KIT

Note: S/N 001001 - 027999. INCLUDES ITEMS 4 - 7

$78.99

$

Usually ships in 2-4 days

0

3

Echo 10000011520

PISTON KIT
(Superseded to 10000011521)

Note: S/N 028000 & UP. INCLUDES ITEMS 4 - 7

$77.99

$

In Stock, only 2 left!

0

4

Echo 10001411520

SPACER, PISTON

Note: S/N 001001 - 047406

$3.99

$

Usually ships in 2-4 days

0

4

Echo 10001408960

WASHER

Note: S/N 047407 & UP

$3.99

$

Usually ships in 2-4 days

0

5

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

6

Echo 10001311520

PIN, PISTON

$8.49

$

In Stock, only 2 left!

0

7

Echo 10001105330

RING, PISTON

$10.99

$

In Stock, Qty 15

0

8

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 5

0

9

Echo 90016204022

SCREW - 4X22

$0.99

$

In Stock, Qty 20+

0

10

Echo 10151408960

COVER, ENGINE
(Superseded to Discontinued)

$

$

Not available

11

Echo 10101145230

CYLINDER

Note: S/N 001001 - 047406

$153.99

$

Usually ships in 2-4 days

0

11

Echo 10101106562

CYLINDER

Note: S/N 047407 & UP

$130.99

$

Usually ships in 2-4 days

0

12

Echo 10101044332

GASKET, CYLINDER

Note: INCLUDED IN KIT P/N 88900006560

$4.99

$

In Stock, Qty 12

0

13

------------------

CRANKCASE SET

Note: INCLUDES ITEMS 14-18 (USE P/N SB1032)

$

$

Not available

14

Echo 10021242031

SEAL, OIL

$7.99

$

In Stock, Qty 5

0

15

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 5

0

16

------------------

GASKET, CRANKCASE

Note: INCLUDED IN KIT P/N 88900006560

$

$

Not available

17

Echo 9403536201

BEARING, BALL - 6201

$9.99

$

In Stock, only 3 left!

0

18

Echo 90016205028

SCREW - 5X28

$2.49

$

In Stock, Qty 11

0

Echo SB1032

SHORT BLOCK -- SB1032
(Superseded to Discontinued)

$

$

Not available

Echo 88900006560

GASKET KIT
(Superseded to P021000350)

Note: ENGINE REPOWER.INCLUDES THE FOLLOWING

$15.99

$

Usually ships in 2-4 days

0

Echo 10101044332

GASKET, CYLINDER

Note: ENGINE REPOWER.

$4.99

$

In Stock, Qty 12

0

------------------

GASKET, CRANKCASE

Note: ENGINE REPOWER.

$

$

Not available

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

Note: ENGINE REPOWER.

$2.99

$

In Stock, Qty 20+

0

Echo 13001642031

GASKET, INTAKE

Note: ENGINE REPOWER.

$1.49

$

In Stock, Qty 20+

0

Echo V104000160

GASKET, EXHAUST

Note: ENGINE REPOWER.

$2.49

$

In Stock, Qty 20+

0

Echo 14586642031

GASKET, EXHAUST

Note: ENGINE REPOWER.

$2.99

$

In Stock, only 4 left!

0

Echo 61041405360

GASKET, GEAR CASE

Note: ENGINE REPOWER.

$1.49

$

In Stock, only 3 left!

0
