HC-1600 - Echo Hedge Trimmer (Type 1) Intake, Exhaust Parts Diagram

Hedge Trimmer (Type 1)

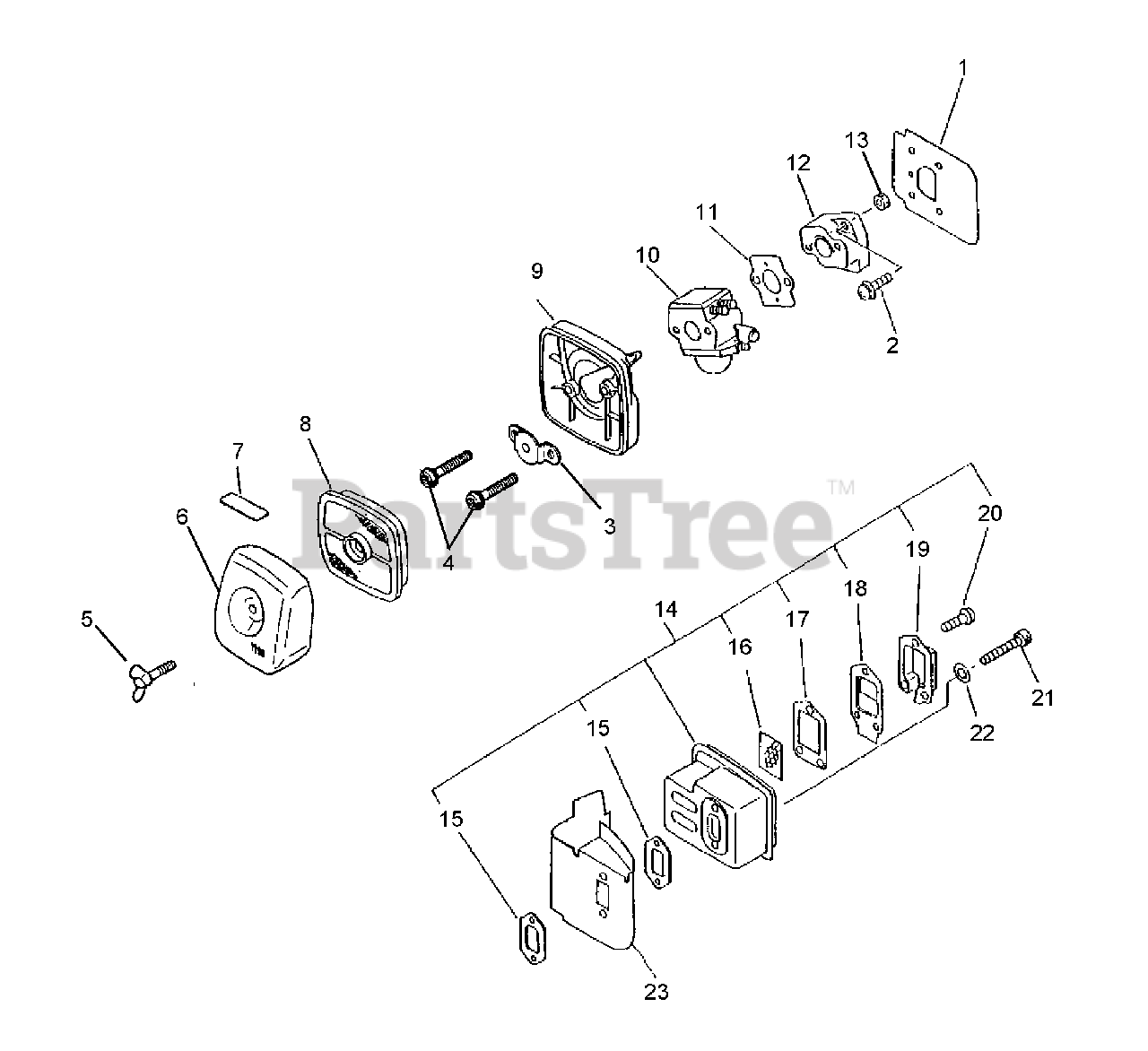

Intake, Exhaust Parts Diagram

  • Title

1

Echo V103000490

HEAT SHIELD, INTAKE
(Superseded to V103001360)

Note: INCLUDED IN KIT P/N 88900006560

$2.99

$

In Stock, Qty 12

0

2

Echo 900238-05020

SCREW 5×20

$0.99

$

In Stock, Qty 10

0

3

Echo 12901105060

PLATE, PREVENT

Note: S/N 001001 - 027999

$6.99

$

In Stock, Qty 7

0

3

Echo 12901112620

PLATE, PREVENT

Note: S/N 028000 - 046717

$8.99

$

Usually ships in 2-4 days

0

3

Echo 12901106360

PLATE, PREVENT
(Superseded to 12901106361)

Note: S/N 046718 & UP

$4.99

$

In Stock, Qty 7

0

4

Echo 90024205064

SCREW 5×64

Note: S/N 001001 - 027999

$1.49

$

In Stock, Qty 9

0

4

Echo 90024205065

SCREW 5×65

Note: S/N 028000 & UP

$0.99

$

In Stock, Qty 20+

0

5

Echo 90052800005

WINGNUT - 6

Note: S/N 001001 - 046717

$1.99

$

In Stock, Qty 5

0

5

Echo 21041752730

BOLT, WING 5×20

Note: S/N 046718 & UP

$1.99

$

In Stock, Qty 14

0

6

Echo 13080605960

COVER, AIR FILTER
(Superseded to 13031344331)

Note: S/N 001001 - 006000

$5.49

$

Usually ships in 2-4 days

0

6

Echo 13031305060

COVER, AIR FILTER

Note: S/N 006001 - 016676

$7.49

$

Usually ships in 2-4 days

0

6

Echo 13030206561

COVER, AIR FILTER

Note: S/N 016677 - 046717

$9.49

$

In Stock, only 2 left!

0

6

Echo 13031306563

COVER, AIR FILTER - GRAY

Note: S/N 046718 & UP

$7.99

$

In Stock, Qty 20+

0

7

Echo 89012105360

LABEL, CHOKE

$1.99

$

In Stock, only 4 left!

0

8

Echo 13031004560

FILTER, AIR

Note: S/N 001001 - 016676

$5.99

$

In Stock, Qty 9

0

8

Echo 13031006560

FILTER, AIR

Note: S/N 016677 & UP

$4.99

$

In Stock, Qty 11

0

8

Echo 13031054130

FILTER, AIR - SINGLE LAYER
(Superseded to A226001410)

Note: S/N 016677 & UP. INCLD IN FILTER KIT P/N 90008

$8.99

$

In Stock, Qty 20+

0

9

Echo 13030705361

CASE, AIR FILTER
(Superseded to Discontinued)

Note: S/N: 001001 - 016676

$

$

Not available

9

Echo 13030706561

AIR FILTER CASE ASSY
(Superseded to P021002921)

Note: S/N: 016677 - 999999

$14.99

$

In Stock, Qty 9

0

10

Echo 12300005961

CARBURETOR - WT -168A
(Superseded to Discontinued)

Note: S/N 001001 - 006000

$

$

Not available

10

Echo 12520006960

CARBURETOR - C1U-K18
(Superseded to 12520006962)

Note: S/N 006001 - 027999

$95.99

$

In Stock, only 2 left!

0

10

Echo 12520007760

CARBURETOR - C1U-K35
(Superseded to 12520007761)

Note: S/N 028000 - 047406

$

$

Not available

10

Echo 12520005962

CARBURETOR - C1U-K51
(Superseded to 12520005963)

Note: S/N 047407 & UP

$95.99

$

In Stock, only 2 left!

0

11

Echo 130016-42031

GASKET, INTAKE

Note: INCLUDED IN KIT P/N 88900006560

$1.49

$

In Stock, Qty 20+

0

12

Echo 130017-42031

INSULATOR, INTAKE

$11.99

$

In Stock, Qty 8

0

13

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

14

Echo 14580042031

MUFFLER ASSY
(Superseded to 14580642030)

Note: Includes ITEMS 15-20

$55.99

$

In Stock, only 1 left!

0

15

Echo V104000160

GASKET, EXHAUST

Note: INCLUDED IN KIT P/N 88900006560

$2.49

$

In Stock, Qty 20+

0

16

Echo 14586240630

SCREEN, SPARK ARRESTER

$2.49

$

In Stock, Qty 6

0

17

Echo 145866-42031

GASKET, EXHAUST

Note: INCLUDED IN KIT P/N 88900006560

$2.99

$

In Stock, only 2 left!

0

18

Echo 14587642030

GUIDE, EXHAUST

$4.99

$

In Stock, only 3 left!

0

19

Echo 14586342030

GUIDE, EXHAUST
(Superseded to A313000041)

Note: S/N 001001 - 047406

$4.49

$

Usually ships in 2-4 days

0

19

Echo 14586308960

GUIDE, EXHAUST - INNER

Note: S/N -47407 & UP

$5.49

$

Usually ships in 2-4 days

0

20

Echo 900242-04010

SCREW 4×10

$0.99

$

In Stock, Qty 20+

0

21

Echo 900105-05055

BOLT 5×55

$1.99

$

In Stock, Qty 20+

0

22

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

23

Echo A320000251

HEAT SHIELD, EXHAUST

$5.99

$

In Stock, only 2 left!

0

Echo 88900006560

GASKET KIT
(Superseded to P021000350)

$15.99

$

Usually ships in 2-4 days

0

Echo 90008

FILTER KIT - REPOWER
(Superseded to 90152)

$21.99

$

In Stock, Qty 20+

0
