HC-1600 - Echo Hedge Trimmer (Type 1E) Fuel System, Handles, Throttle Parts Diagram

Hedge Trimmer (Type 1E)

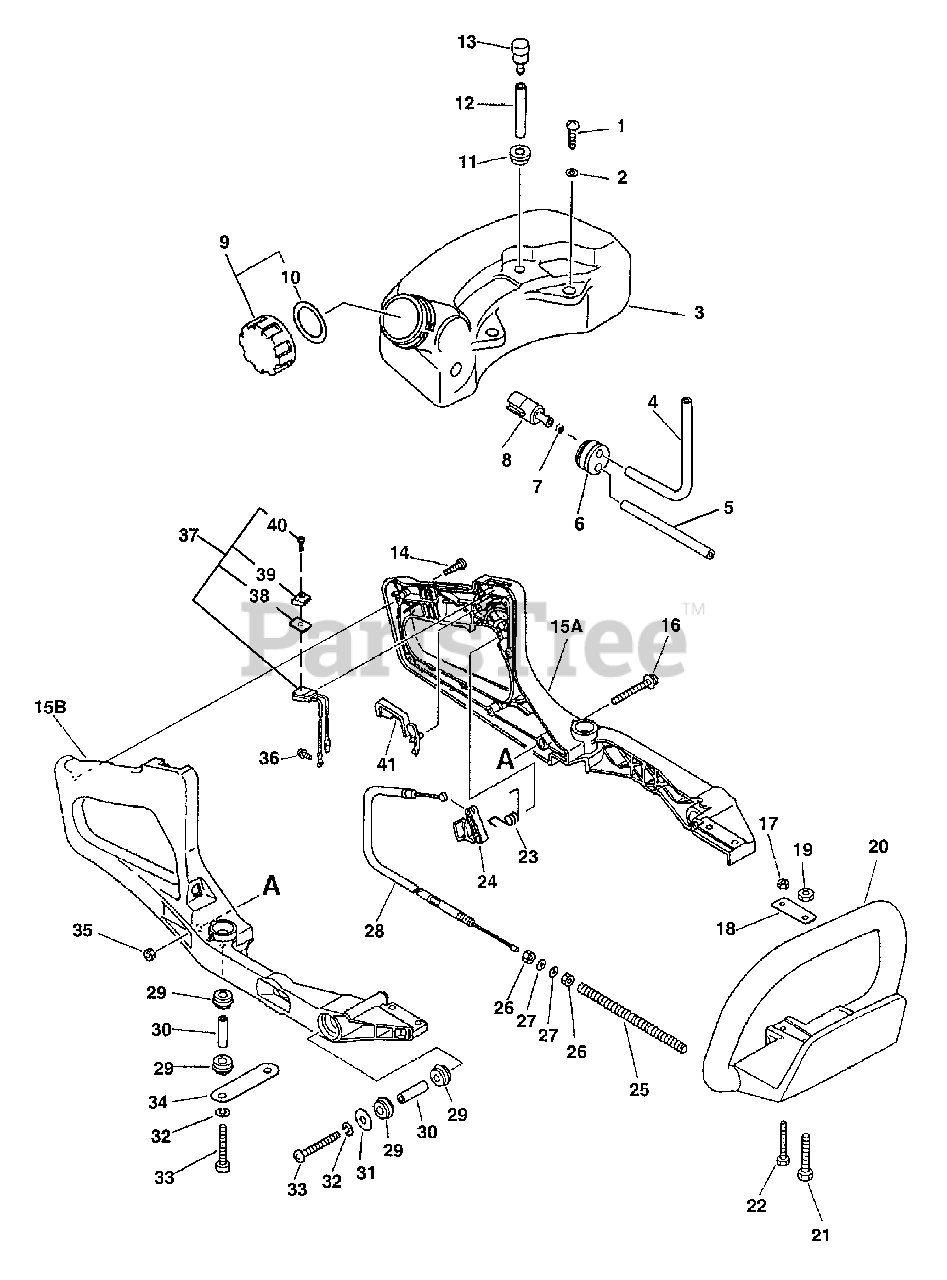

Fuel System, Handles, Throttle Parts Diagram

  • Title

1

Echo 90023805016

SCREW 5×16

$0.99

$

In Stock, Qty 20+

0

2

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

3

Echo 13100208960

TANK, FUEL
(Superseded to 13100208961)

$

$

Not available

4

Echo 13201002160

PIPE, FUEL

$6.99

$

In Stock, only 2 left!

0

5

Echo 13201006460

PIPE, FUEL RETURN 3×6×110

Note: RePower BULK OPTION: 90017

$3.99

$

In Stock, Qty 12

0

6

Echo 132115-44330

GROMMET, FUEL
(Superseded to 13211544331)

$2.49

$

In Stock, Qty 20+

0

7

Echo 132013-09820

CLIP 6 MM

$0.99

$

In Stock, Qty 7

0

8

Echo 131205-07320

FILTER, FUEL

Note: USE REPOWER FILTRATION KIT - P/N 90008

$6.49

$

In Stock, Qty 20+

0

9

Echo 13100455830

CAP ASSY, FUEL
(Superseded to P200000830)

Note: INCLUDES ITEM 10. USE REPOWER VENT/CAP KIT - P/N 90010

$5.49

$

In Stock, only 2 left!

0

10

Echo 131016-55830

GASKET, FUEL CAP

$

$

Not available

11

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.99

$

In Stock, Qty 20+

0

12

Echo 13201021160

PIPE, FUEL
(Superseded to V471001180)

Note: RePower BULK OPTION: 90015

$2.49

$

In Stock, Qty 20+

0

13

Echo A356000031

VENT ASSY

Note: USE REPOWER VENT/CAP KIT - P/N 90010

$9.49

$

In Stock, Qty 20+

0

14

Echo 900253-04025

SCREW 4×25

$0.99

$

In Stock, Qty 9

0

15A

Echo 35112906960

HANDLE, REAR - LEFT
(Superseded to 35112906961)

$

$

Not available

15B

Echo 35111006960

HANDLE, REAR - RIGHT
(Superseded to 35111006961)

$29.99

$

Usually ships in 2-4 days

0

16

Echo 90024205064

SCREW 5×64

$1.49

$

In Stock, Qty 9

0

17

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

18

Echo 35161105360

PLATE, EYE

$8.99

$

In Stock, only 2 left!

0

19

Echo 900500-00006

NUT, HEX M6

$0.99

$

In Stock, Qty 20+

0

20

Echo 35161005360

HANDLE, SUPPORT

$47.99

$

In Stock, only 2 left!

0

21

Echo 90010006035

BOLT - 6×32

$0.99

$

Usually ships in 2-4 days

0

22

Echo 90010005035

BOLT 5×35 SP

$0.99

$

In Stock, Qty 5

0

23

Echo 178013-35631

SPRING, TORSION

$2.99

$

In Stock, Qty 5

0

24

Echo 178010-05960

TRIGGER, THROTTLE

$6.49

$

In Stock, only 2 left!

0

25

Echo 17812706960

PIPE

$2.99

$

In Stock, only 2 left!

0

26

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 12

0

27

Echo 90060000006

WASHER 6.5×11.5×0.8

$0.99

$

In Stock, Qty 20+

0

28

Echo 17800106960

CABLE, THROTTLE

$22.99

$

Usually ships in 2-4 days

0

29

Echo 35122806960

CUSHION

$4.99

$

In Stock, only 3 left!

0

30

Echo 35124101260

SPACER
(Superseded to 35124101261)

$3.49

$

In Stock, Qty 16

0

31

Echo 35124906960

WASHER

$0.99

$

In Stock, Qty 8

0

32

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

33

Echo 900220-05040

SCREW 5×40

$0.99

$

In Stock, Qty 8

0

34

Echo 35124206960

PLATE, EYE
(Superseded to 35124206961)

$2.99

$

Usually ships in 2-4 days

0

35

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

36

Echo 90023805010

SCREW 5×10

$0.99

$

In Stock, Qty 13

0

37

Echo 16340006960

IGNITION SWITCH ASSY
(Superseded to A440000330)

Note: INCLUDES ITEMS 38 - 40

$13.99

$

Usually ships in 2-4 days

0

38

Echo 89015712330

LABEL, SWITCH

$3.99

$

In Stock, only 1 left!

0

39

Echo 16341049231

KNOB, SWITCH - ORANGE

$4.99

$

In Stock, Qty 19

0

40

Echo 90022003010

SCREW 3×10

$0.99

$

In Stock, Qty 11

0

41

Echo 178012-05960

LOCKOUT, THROTTLE

$6.99

$

In Stock, only 2 left!

0

Echo 90008

FILTER KIT - REPOWER
(Superseded to 90152)

$21.99

$

In Stock, Qty 20+

0

Echo 90010

CAP/VENT KIT - REPOWER
(Superseded to 90248)

$

$

Not available
