HC-1600 - Echo Hedge Trimmer (Type 1E) Gearcase, Blades, Clutch Drum Parts Diagram

Hedge Trimmer (Type 1E)

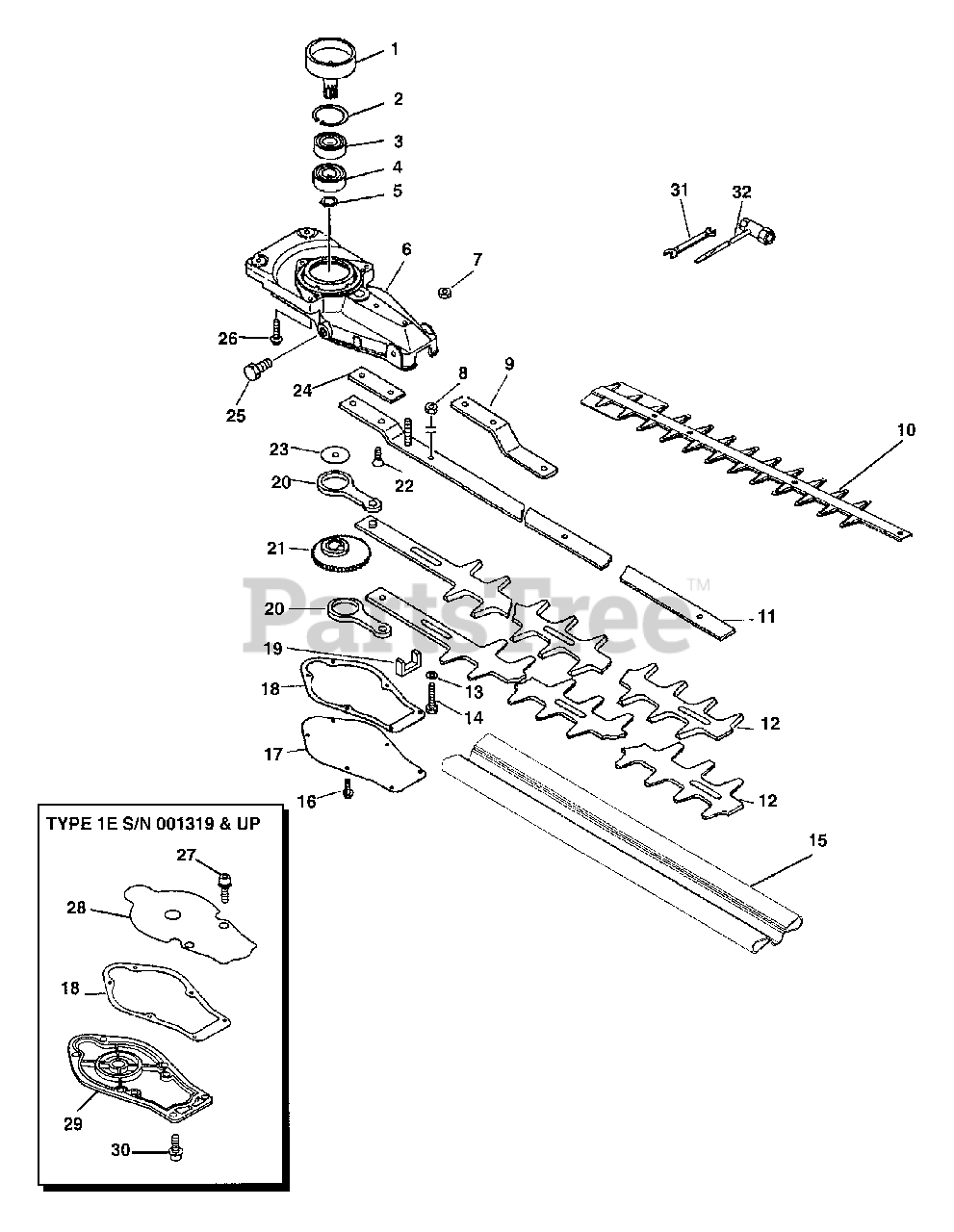

Gearcase, Blades, Clutch Drum Parts Diagram

  • Title

1

Echo 17500504560

DRUM, CLUTCH

$52.99

$

In Stock, only 3 left!

0

2

Echo 90070200035

RING, SNAP 35

$2.49

$

In Stock, Qty 9

0

3

Echo 90081336202

BEARING, BALL 6202

$12.99

$

In Stock, only 3 left!

0

4

Echo 90081036202

BEARING, BALL 6202

$11.99

$

In Stock, only 2 left!

0

5

Echo 90070100014

RING, SNAP 14

$1.49

$

In Stock, only 2 left!

0

6

Echo 61041007760

HOUSING, GEAR CASE

Note: S/N 001001 - 001318

$166.99

$

Usually ships in 2-4 days

0

6

Echo 61040707760

CASE, GEAR

Note: S/N 001319 & UP

$166.99

$

Usually ships in 2-4 days

0

7

Echo 900500-00006

NUT, HEX M6

$0.99

$

In Stock, Qty 20+

0

8

Echo 43302206460

NUT M6

$1.49

$

In Stock, Qty 20+

0

9

Echo 69912006560

PLATE, ANGLE

$5.99

$

Usually ships in 2-4 days

0

10

Echo 69912502961

GUARD, CUTTER BLADE

Note: S/N 509359 & UP

$12.99

$

Usually ships in 2-4 days

0

11

Echo X425000090

SUPPORT, BLADE
(Superseded to X425000230)

$44.99

$

Usually ships in 2-4 days

0

12

Echo X411000110

BLADE, TRIMMER
(Superseded to X411000380)

$63.99

$

Usually ships in 2-4 days

0

13

Echo 69911804560

WASHER 6.5×15.5×0.6

$0.99

$

In Stock, Qty 20+

0

14

Echo 69911504660

BOLT 6×18

$2.99

$

In Stock, Qty 20+

0

14

Echo 69911521460

BOLT 6×20

Note: S/N 509359 & UP

$4.99

$

In Stock, Qty 20+

0

15

Echo 89852302160

COVER, BLADE
(Superseded to X495000020)

$

$

Not available

16

Echo 90016204010

BOLT 4×10

Note: S/N 001001 - 001318

$1.49

$

In Stock, Qty 20+

0

17

Echo 61041105361

COVER, GEAR CASE

Note: S/N 001001 - 001318

$7.99

$

Usually ships in 2-4 days

0

18

Echo 61041405360

GASKET, GEAR CASE

Note: INCLUDED IN GASKET KIT - P/N 88900006560

$1.49

$

In Stock, only 2 left!

0

19

Echo 61042504560

SEAL

$1.49

$

In Stock, Qty 5

0

20

Echo 61033004560

ROD, CONNECTING
(Superseded to 61033004561)

$28.99

$

In Stock, only 2 left!

0

21

Echo 61031204560

GEAR

$91.99

$

In Stock, only 4 left!

0

22

Echo 90021206025

SCREW 6×25

$0.99

$

In Stock, Qty 9

0

23

Echo 61035004560

WASHER

$1.99

$

In Stock, only 3 left!

0

24

Echo 69911807760

PLATE, EYE

$4.49

$

Usually ships in 2-4 days

0

25

Echo 90010008008

BOLT 8×8 SP

$0.99

$

In Stock, Qty 10

0

26

Echo 90016205025

BOLT 5×25

$0.99

$

In Stock, Qty 20+

0

27

Echo 90016205012

BOLT 5×12

$0.99

$

In Stock, Qty 20+

0

28

Echo 61044707760

PLATE, GEAR CASE
(Superseded to Discontinued)

Note: S/N 001319 & UP

$

$

Not available

29

Echo 61041107760

COVER, GEAR CASE

Note: S/N 001319 & UP

$93.99

$

Usually ships in 2-4 days

0

30

Echo 90016204012

BOLT 4×12

Note: S/N 001319 & UP

$1.49

$

In Stock, Qty 20+

0

31

Echo 89541006960

T-WRENCH 13×19×180
(Superseded to 89541006961)

$4.49

$

In Stock, only 2 left!

0

32

Echo 895112-00330

SPANNER 8×10

$0.99

$

In Stock, Qty 6

0

Echo 88900006560

GASKET KIT
(Superseded to P021000350)

Note: INCLUDES REF. NO 18

$15.99

$

Usually ships in 2-4 days

0
