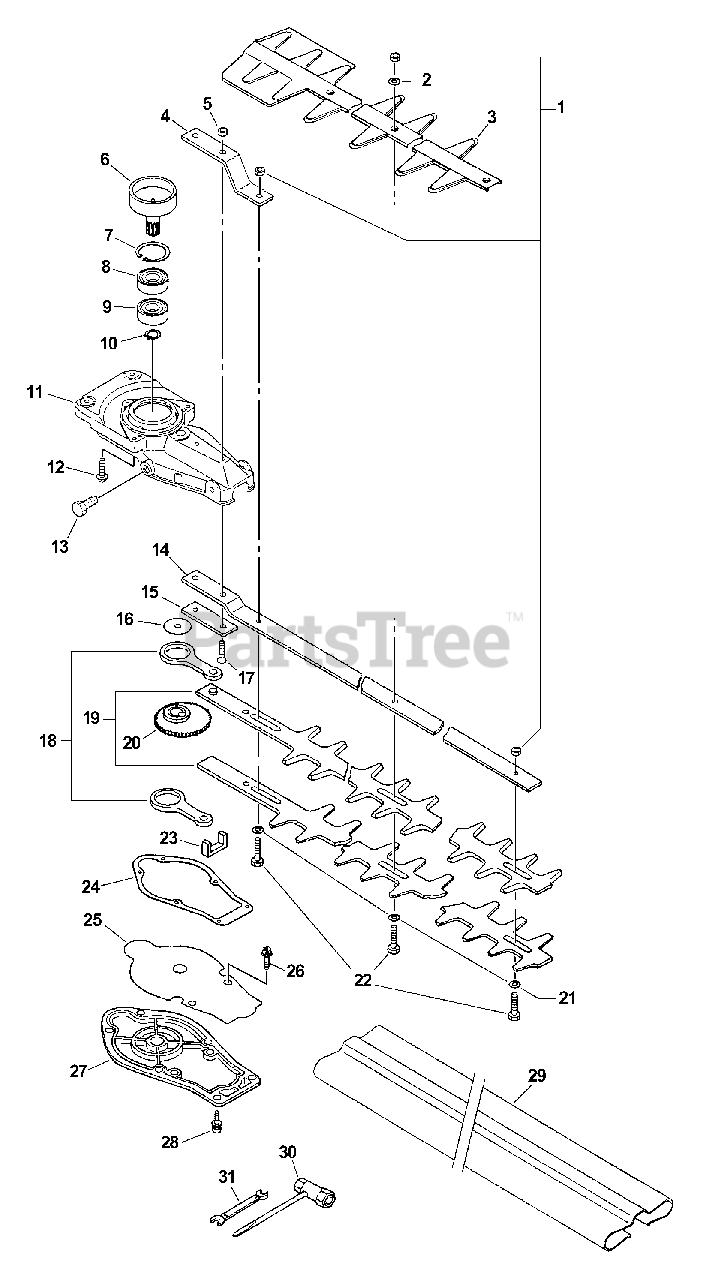

HC-161 - Echo Hedge Trimmer (SN: 02001001 - 02999999) Gearcase, Blades, Tools Parts Diagram

Hedge Trimmer

Gearcase, Blades, Tools Parts Diagram

  • Title

1

Echo 43302206460

NUT M6

$1.49

$

In Stock, Qty 20+

0

2

Echo 69911804560

WASHER 6.5×15.5×0.6

$0.99

$

In Stock, Qty 20+

0

3

Echo 69912502961

GUARD, CUTTER BLADE

$12.99

$

Usually ships in 2-4 days

0

4

Echo 900500-00006

NUT, HEX M6

$0.99

$

In Stock, Qty 20+

0

5

Echo 69912006560

PLATE, ANGLE

$5.99

$

Usually ships in 2-4 days

0

6

Echo 17500504560

DRUM, CLUTCH

$52.99

$

In Stock, only 3 left!

0

7

Echo 90070200035

RING, SNAP 35

$2.49

$

In Stock, Qty 9

0

8

Echo 90081336202

BEARING, BALL 6202

$12.99

$

In Stock, only 3 left!

0

9

Echo 90081036202

BEARING, BALL 6202

$11.99

$

In Stock, only 2 left!

0

10

Echo 90070100014

RING, SNAP 14

$1.49

$

In Stock, only 2 left!

0

11

Echo 61040707760

CASE, GEAR

$166.99

$

Usually ships in 2-4 days

0

12

Echo 90016205025

BOLT 5×25

$0.99

$

In Stock, Qty 20+

0

13

Echo 90010008008

BOLT 8×8 SP

$0.99

$

In Stock, Qty 10

0

14

Echo X425000090

SUPPORT, BLADE
(Superseded to X425000230)

$44.99

$

Usually ships in 2-4 days

0

15

Echo 69911807760

PLATE, EYE

$4.49

$

Usually ships in 2-4 days

0

16

Echo 61035004560

WASHER

$1.99

$

In Stock, only 3 left!

0

17

Echo 90021206025

SCREW 6×25

$0.99

$

In Stock, Qty 9

0

18

Echo 61033004561

ROD, CONNECTING
(Superseded to C532000120)

$28.99

$

In Stock, only 2 left!

0

19

Echo X411000110

BLADE, TRIMMER
(Superseded to X411000380)

$63.99

$

Usually ships in 2-4 days

0

20

Echo 61031204560

GEAR

$91.99

$

In Stock, only 4 left!

0

21

Echo 69911804560

WASHER 6.5×15.5×0.6

$0.99

$

In Stock, Qty 20+

0

22

Echo 69911521460

BOLT 6×20

$4.99

$

In Stock, Qty 20+

0

23

Echo 61042504560

SEAL

$1.49

$

In Stock, Qty 5

0

24

Echo 61041405360

GASKET, GEAR CASE

$1.49

$

In Stock, only 2 left!

0

25

Echo 61044707760

PLATE, GEAR CASE
(Superseded to Discontinued)

$

$

Not available

26

Echo 90016205012

BOLT 5×12

$0.99

$

In Stock, Qty 20+

0

27

Echo 61041107760

COVER, GEAR CASE

$93.99

$

Usually ships in 2-4 days

0

28

Echo 90016204012

BOLT 4×12

$1.49

$

In Stock, Qty 20+

0

29

Echo X495000021

COVER, BLADE
(Superseded to X495000150)

$

$

Not available

30

Echo 89541006960

T-WRENCH 13×19×180
(Superseded to 89541006961)

$4.49

$

In Stock, only 2 left!

0

31

Echo 895112-00330

SPANNER 8×10

$0.99

$

In Stock, Qty 6

0
