HC-165 - Echo Hedge Trimmer (SN: S69411001001 - S69411999999) Intake Parts Diagram

Hedge Trimmer

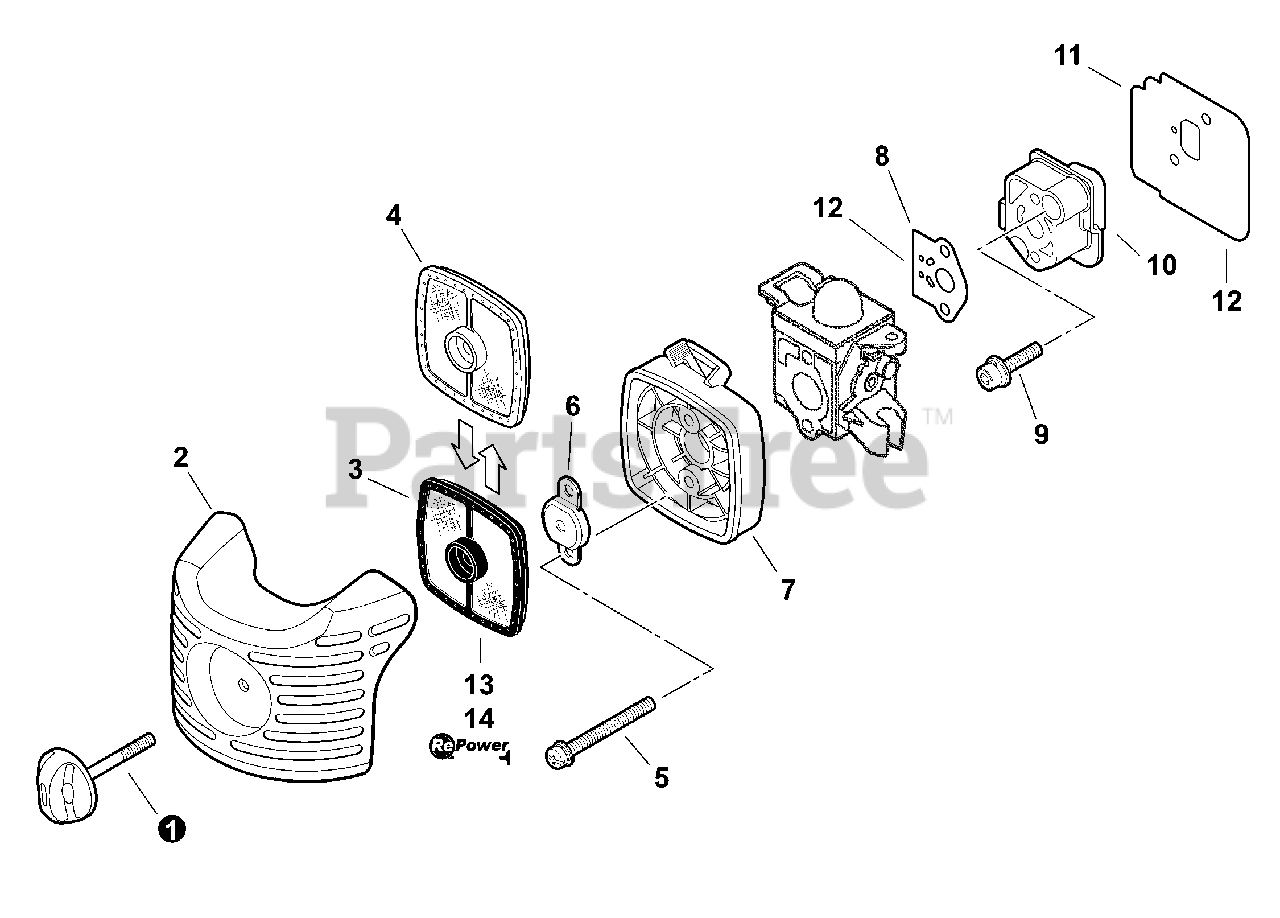

Intake Parts Diagram

  • Title

1

Echo V299000250

THUMBSCREW

$4.99

$

In Stock, Qty 5

0

2

Echo A232000400

COVER, AIR FILTER

$14.99

$

In Stock, only 2 left!

0

3

Echo A226001410

FILTER, AIR - DOUBLE LAYER

Note: Included in Filter kit & Tune-up Kit

$8.99

$

In Stock, Qty 20+

0

4

Echo 13031054130

FILTER, AIR - SINGLE LAYER
(Superseded to A226001410)

$8.99

$

In Stock, Qty 20+

0

5

Echo 90024205065

SCREW 5×65

$0.99

$

In Stock, Qty 20+

0

6

Echo 12901152730

PLATE, PREVENT

$4.49

$

In Stock, Qty 5

0

7

Echo P021012870

CASE ASSY, AIR FILTER

$13.99

$

In Stock, Qty 20+

0

8

Echo V103000410

GASKET, INTAKE

Note: Included in Gasket Kit

$1.99

$

Usually ships in 2-4 days

0

9

Echo A200000300

INSULATOR, INTAKE
(Superseded to A200001020)

$9.99

$

In Stock, only 2 left!

0

10

Echo 90016205025

BOLT 5×25

$0.99

$

In Stock, Qty 20+

0

11

Echo V103000180

HEAT SHIELD, INTAKE

Note: Included in Gasket Kit

$2.49

$

In Stock, only 3 left!

0

12

Echo P021013501

GASKET KIT
(Superseded to P021013502)

Note: See RePower Maintenance Page

$35.99

$

Usually ships in 2-4 days

0

13

Echo 90008

FILTER KIT - REPOWER
(Superseded to 90152)

Note: See RePower Maintenance Page

$21.99

$

In Stock, Qty 20+

0

14

Echo 90152

TUNE-UP KIT - REPOWER
(Superseded to 90152Y)

Note: See RePower Maintenance Page

$21.99

$

In Stock, Qty 20+

0
