HC-180 - Echo Hedge Trimmer (SN: S78012001001 - S78012999999) Fuel System Parts Diagram

Hedge Trimmer

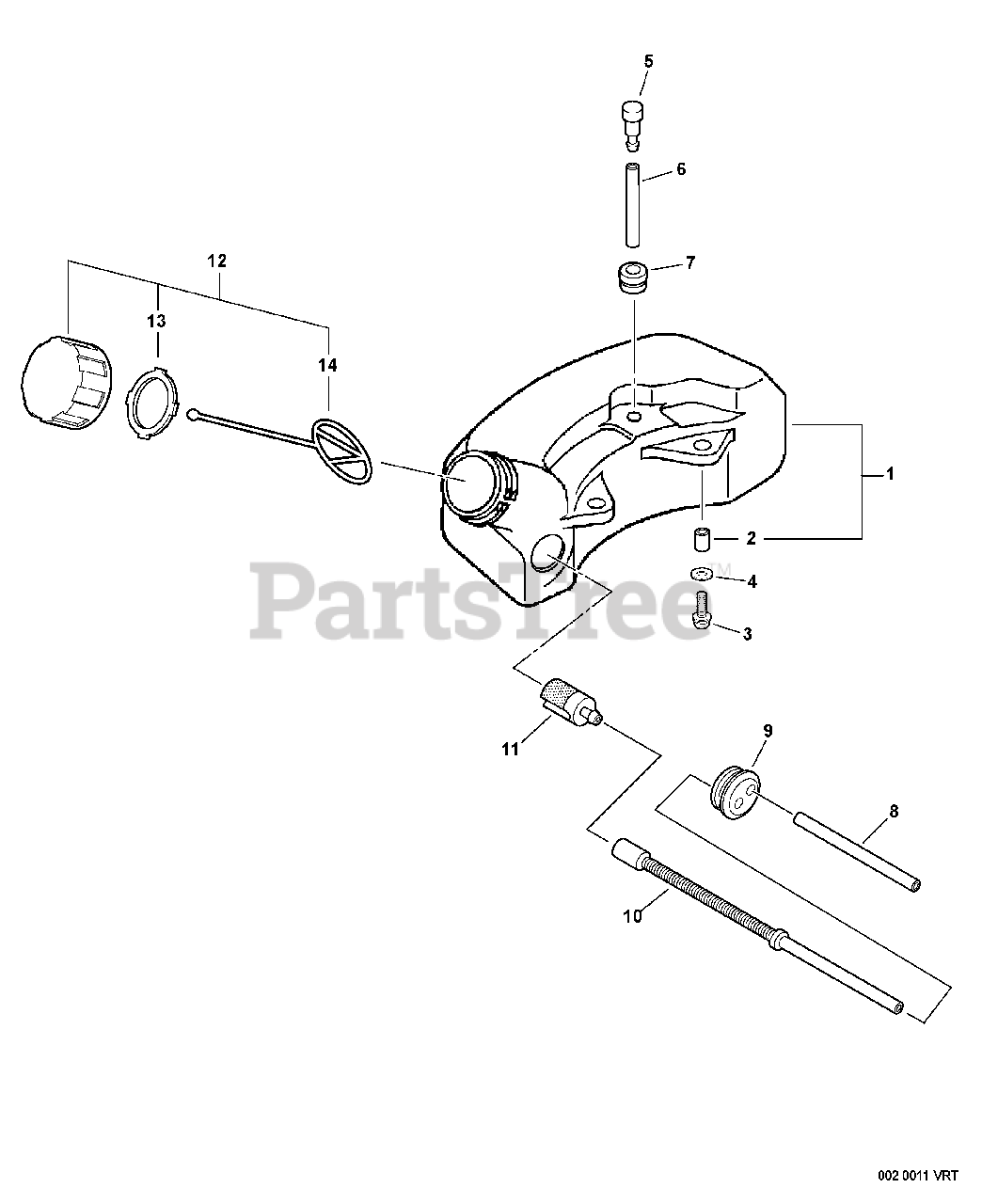

Fuel System Parts Diagram

  • Title

1

Echo 13100208961

TANK, FUEL
(Superseded to Discontinued)

Note: Includes ITEM 2

$

$

Not available

2

Echo 13104528230

SPACER 6.2×7.8×6

$1.99

$

In Stock, Qty 20+

0

3

Echo 90016205016

BOLT 5×16

$1.49

$

In Stock, Qty 20+

0

4

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

5

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

6

Echo V471001180

PIPE, FUEL 3×6×35 BLACK
(Superseded to V471001181)

Note: RePower BULK OPTION: 90015

$2.49

$

In Stock, Qty 20+

0

7

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.99

$

In Stock, Qty 20+

0

8

Echo 13201006460

PIPE, FUEL RETURN 3×6×110

Note: RePower BULK OPTION: 90017

$3.99

$

In Stock, Qty 20+

0

9

Echo 132115-44330

GROMMET, FUEL
(Superseded to 13211544331)

$2.49

$

In Stock, Qty 20+

0

10

Echo 13201002160

PIPE, FUEL

$6.99

$

In Stock, only 1 left!

0

11

Echo 131205-07320

FILTER, FUEL

Note: Included In RePower KIT

$6.49

$

In Stock, Qty 20+

0

12

Echo 13100455530

CAP ASSY, FUEL
(Superseded to P100006640)

Note: Includes ITEMS 13-14

$7.49

$

In Stock, Qty 8

0

13

Echo 131016-55830

GASKET, FUEL CAP

$

$

Not available

14

Echo 13105156030

CONNECTOR, CAP L= 100 MM

$1.49

$

In Stock, Qty 14

0
