HC-1800 - Echo Hedge Trimmer (Type 1E) Ignition, Starter Assembly Parts Diagram

Hedge Trimmer (Type 1E)

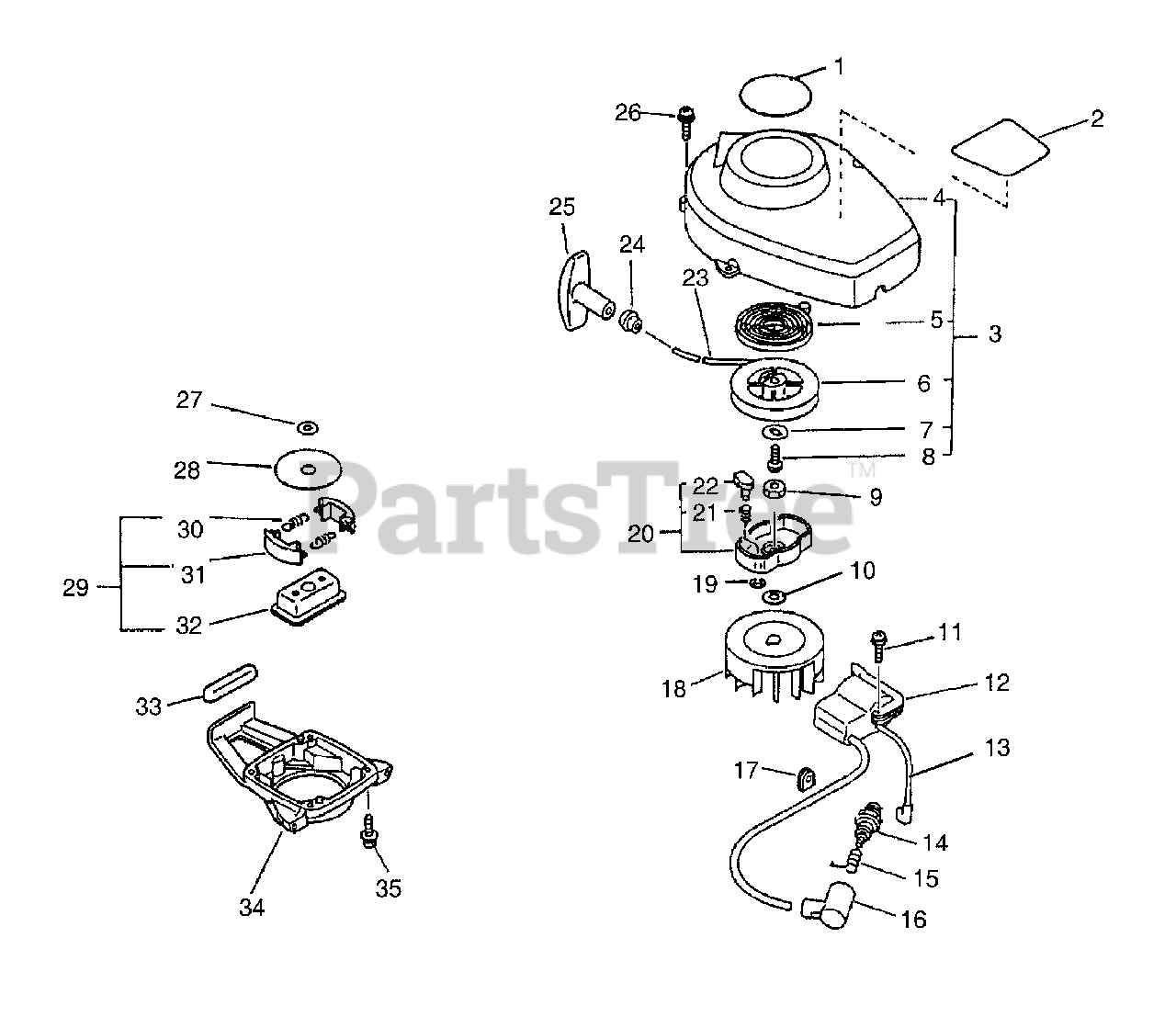

Ignition, Starter Assembly Parts Diagram

  • Title

1

Echo X503002950

LABEL, MODEL
(Superseded to Discontinued)

$

$

Not available

2

Echo X505000290

LABEL, CAUTION

$2.49

$

Usually ships in 2-4 days

0

3

Echo 17720005962

STARTER ASSY

Note: INCLUDES ITEMS 4-8, 23-25

$95.99

$

Usually ships in 2-4 days

0

4

Echo 17723205961

CASE, STARTER

$55.99

$

Usually ships in 2-4 days

0

5

Echo 177220-42030

SPRING, RECOIL
(Superseded to P022019680)

$11.99

$

In Stock, Qty 10

0

6

Echo 17721505960

REEL, ROPE

$15.99

$

In Stock, only 2 left!

0

7

Echo 17721442030

WASHER
(Superseded to V303000230)

$1.99

$

Usually ships in 2-4 days

0

8

Echo 177236-44330

SCREW
(Superseded to 17723644330)

$3.99

$

In Stock, Qty 10

0

9

Echo 90051200008

NUT 8

$1.49

$

Usually ships in 2-4 days

0

10

Echo 90060500008

WASHER, SPRING 8

$0.99

$

In Stock, Qty 20+

0

11

Echo 90016204022

SCREW 4×22

$0.99

$

In Stock, Qty 20+

0

12

Echo 156601-52130

COIL, IGNITION
(Superseded to 15660152131)

$143.99

$

In Stock, only 1 left!

0

13

Echo 16202152830

LEAD
(Superseded to V485001080)

$4.49

$

In Stock, only 2 left!

0

14

Echo 99944500071

SPARK PLUG - BPM-7Y

$

$

Not available

14

Echo 15901010230

SPARK PLUG - BPMR7A

Note: CANADA MODELS

$3.99

$

In Stock, Qty 20+

0

15

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

16

Echo 159012-01620

CAP, SPARK PLUG

$1.99

$

In Stock, Qty 10

0

17

Echo 15611004920

GROMMET

$0.99

$

In Stock, Qty 20+

0

18

Echo A409000000

FLYWHEEL
(Superseded to A409000100)

$68.99

$

Usually ships in 2-4 days

0

19

Echo 90070000004

E-RING 4

$0.99

$

In Stock, Qty 20+

0

20

Echo 17720207360

STARTER PAWL ASSY
(Superseded to 17720207361)

Note: INCLUDES ITEMS 21-22

$16.99

$

In Stock, only 2 left!

0

21

Echo 17723405960

SPRING, RETURN
(Superseded to P022007980)

$4.99

$

In Stock, Qty 6

0

22

Echo 17721842030

PAWL, STARTER

$4.49

$

Usually ships in 2-4 days

0

23

Echo 17722605960

ROPE, STARTER

Note: RePower BULK OPTION: 99944445000

$7.49

$

Usually ships in 2-4 days

0

24

Echo 177227-42030

GUIDE, ROPE
(Superseded to 17722742030)

$2.99

$

Usually ships in 2-4 days

0

25

Echo 177228-06530

GRIP, STARTER

$5.99

$

In Stock, Qty 5

0

26

Echo 90016304016

BOLT 4×16
(Superseded to V202000830)

$1.99

$

In Stock, Qty 18

0

27

Echo 17501405360

WASHER, CLUTCH

$2.49

$

Usually ships in 2-4 days

0

28

Echo 17501904920

PLATE, CLUTCH
(Superseded to Discontinued)

$

$

Not available

29

Echo 17500002962

CLUTCH ASSY

Note: INCLUDES ITEMS 30-32

$75.99

$

In Stock, only 2 left!

0

30

Echo 17501805960

SPRING, CLUTCH

$2.49

$

In Stock, Qty 14

0

31

Echo 17500905131

SHOE, CLUTCH

$25.99

$

In Stock, only 2 left!

0

32

Echo 17501607330

HUB, CLUTCH
(Superseded to Discontinued)

$

$

Not available

33

Echo 13192028230

CUSHION, FUEL TANK

$1.49

$

In Stock, only 1 left!

0

34

Echo 17505506960

HOUSING, CLUTCH

$55.99

$

In Stock, only 1 left!

0

35

Echo 90016304016

BOLT 4×16
(Superseded to V202000830)

$1.99

$

In Stock, Qty 18

0

Echo 99944440000

BULK STARTER ROPE - Ø 3.0 MM×61 M

Note: OPTIONAL

$35.99

$

In Stock, only 2 left!

0
