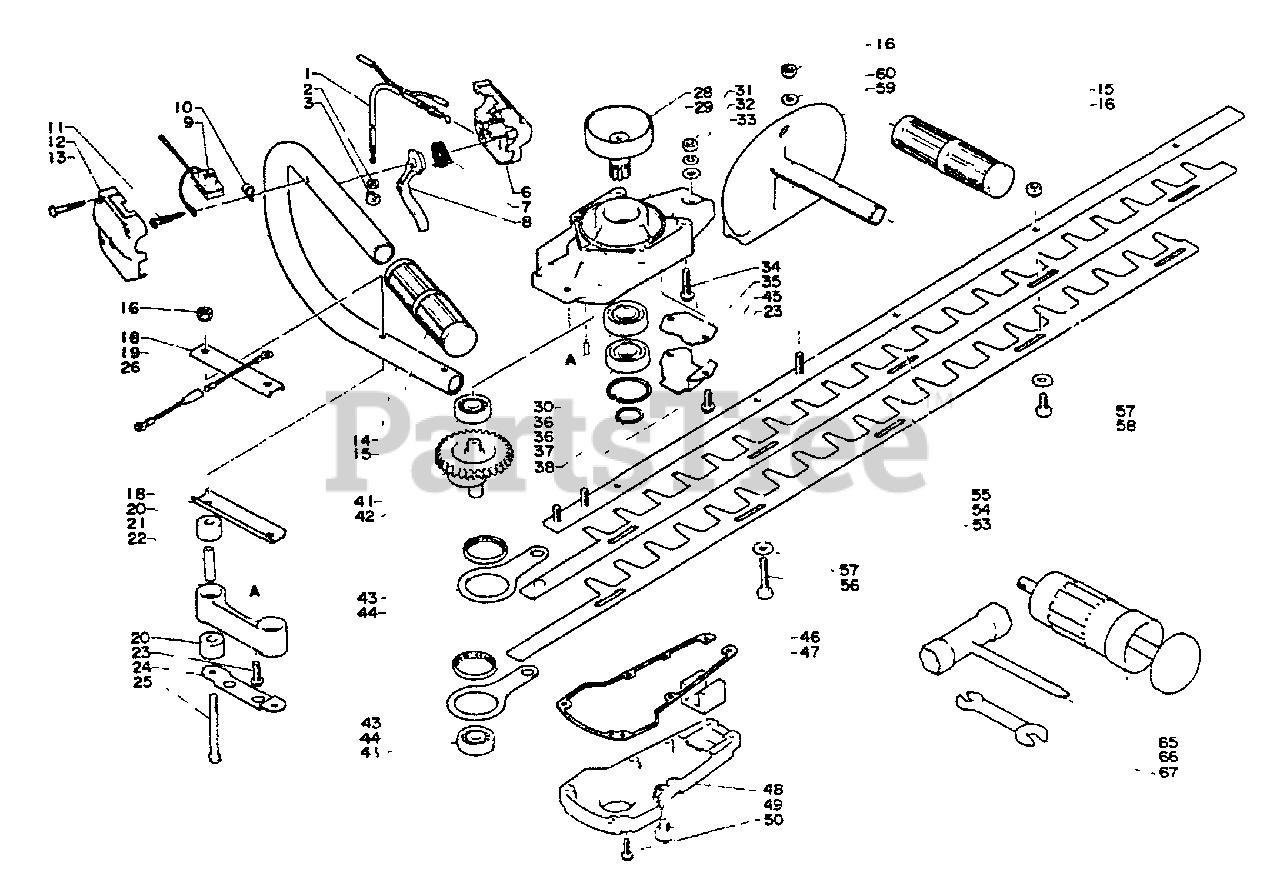

HC-200 - Echo Hedge Trimmer (Original Version) Gear Case, Handles, Blades, Throttle, Stop Switch, Tools Parts Diagram

Hedge Trimmer

Gear Case, Handles, Blades, Throttle, Stop Switch, Tools Parts Diagram

  • Title

1

Echo 17800101260

CABLE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

2

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 12

0

3

Echo 17802107330

NUT

$

$

Not available

6

Echo 17802401260

BRACKET, THROTTLE CONTROL - RIGHT
(Superseded to 17802401261)

$4.99

$

In Stock, only 2 left!

0

7

Echo 17804301260

SPRING, THROTTLE RETURN

$1.49

$

In Stock, only 3 left!

0

8

Echo 17801001260

TRIGGER, THROTTLE
(Superseded to 17801007660)

$5.49

$

In Stock, only 2 left!

0

9

Echo 16340007930

IGNITION SWITCH ASSY

$9.99

$

Usually ships in 2-4 days

0

10

Echo 15911301260

HOLDER
(Superseded to Discontinued)

$

$

Not available

11

Echo 90024704008

SCREW - 4×8
(Superseded to Discontinued)

$

$

Not available

12

Echo 17805201260

BRACKET, THROTTLE CONTROL - LEFT
(Superseded to 17805201261)

$4.99

$

In Stock, only 2 left!

0

13

Echo 90024504025

SCREW 4×25

$0.99

$

Usually ships in 2-4 days

0

14

Echo 35120501260

HANDLE, REAR
(Superseded to Discontinued)

$

$

Not available

15

Echo 35101201260

GRIP

$8.99

$

Usually ships in 2-4 days

0

16

Echo 433020-00830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 14

0

18

Echo 35124301260

BRACKET

$3.49

$

Usually ships in 2-4 days

0

19

Echo 16201001260

LEAD - GROUND

$2.49

$

Usually ships in 2-4 days

0

20

Echo 35122801260

CUSHION

$4.99

$

Usually ships in 2-4 days

0

21

Echo 35124101260

SPACER
(Superseded to 35124101261)

$3.49

$

In Stock, Qty 16

0

22

Echo 35121701260

BRACKET, HANDLE
(Superseded to Discontinued)

$

$

Not available

23

Echo 900242-05014

SCREW 5×14

$0.99

$

In Stock, Qty 20+

0

24

Echo 35124201260

PLATE
(Superseded to 35124201261)

$3.49

$

Usually ships in 2-4 days

0

25

Echo 90010505060

BOLT 5×60

$2.49

$

In Stock, only 3 left!

0

26

Echo 16201401260

LEAD - GROUND
(Superseded to Discontinued)

$

$

Not available

28

Echo 17500501260

DRUM, CLUTCH
(Superseded to 17500301261)

$98.99

$

Usually ships in 2-4 days

0

29

Echo 61041001260

CASE, GEAR
(Superseded to Discontinued)

$

$

Not available

30

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, only 4 left!

0

31

Echo 900500-00006

NUT, HEX M6

$0.99

$

In Stock, Qty 20+

0

32

Echo 90060500006

WASHER, SPRING 6

$0.99

$

In Stock, Qty 15

0

33

Echo 90060000006

WASHER 6.5×11.5×0.8

$0.99

$

In Stock, Qty 20+

0

34

Echo 90024245020

SCREW - 5×20

$

$

Currently unavailable

35

Echo 61044001260

GUIDE
(Superseded to Discontinued)

$

$

Not available

36

Echo 90081006200

BEARING, BALL 6200

$12.99

$

In Stock, only 1 left!

0

37

Echo 90070200032

RING, SNAP Ø32

$2.49

$

In Stock, only 2 left!

0

38

Echo 90070100017

RING, RETAINING - 17

$1.49

$

Usually ships in 2-4 days

0

41

Echo 90080206003

BEARING, BALL 6003

$20.99

$

Usually ships in 2-4 days

0

42

Echo 61030801260

GEAR
(Superseded to 61030201260)

$

$

Not available

43

Echo 61032701260

BEARING, NEEDLE
(Superseded to 61032701261)

$23.99

$

In Stock, Qty 9

0

44

Echo 61033001260

ROD, CONNECTING
(Superseded to 61030701260)

$

$

Not available

45

Echo 61044101260

GUIDE
(Superseded to Discontinued)

$

$

Not available

46

Echo 61041401260

GASKET, GEAR CASE

$1.99

$

In Stock, Qty 11

0

47

Echo 61042601260

SEAL

$3.49

$

In Stock, only 1 left!

0

48

Echo 61041101260

LID, GEAR CASE
(Superseded to Discontinued)

$

$

Not available

49

Echo 90010008008

BOLT 8×8 SP

$0.99

$

In Stock, Qty 10

0

50

Echo 900242-04016

SCREW 4×16

$0.99

$

In Stock, Qty 20+

0

53

Echo 69700001260

TRIMMER BLADE SET
(Superseded to Discontinued)

$

$

Not available

54

Echo 69700001260

TRIMMER BLADE SET
(Superseded to Discontinued)

$

$

Not available

55

Echo 69910501260

FRAME BAR
(Superseded to 69910002060)

$

$

Not available

56

Echo 35102701260

BOLT
(Superseded to 35102701262)

$

$

Not available

57

Echo 69911801260

WASHER
(Superseded to 69911801261)

$0.99

$

Usually ships in 2-4 days

0

58

Echo 69911501260

BOLT
(Superseded to Discontinued)

$

$

Not available

59

Echo 35101001260

HANDLE, FRONT
(Superseded to 35101002060)

$55.99

$

Usually ships in 2-4 days

0

60

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

65

Echo 88030001260

PUMP, GREASE
(Superseded to Discontinued)

$

$

Not available

66

Echo 89541007930

T-WRENCH

$12.99

$

Usually ships in 2-4 days

0

67

Echo 895112-00330

SPANNER 8×10

$0.99

$

In Stock, Qty 6

0
