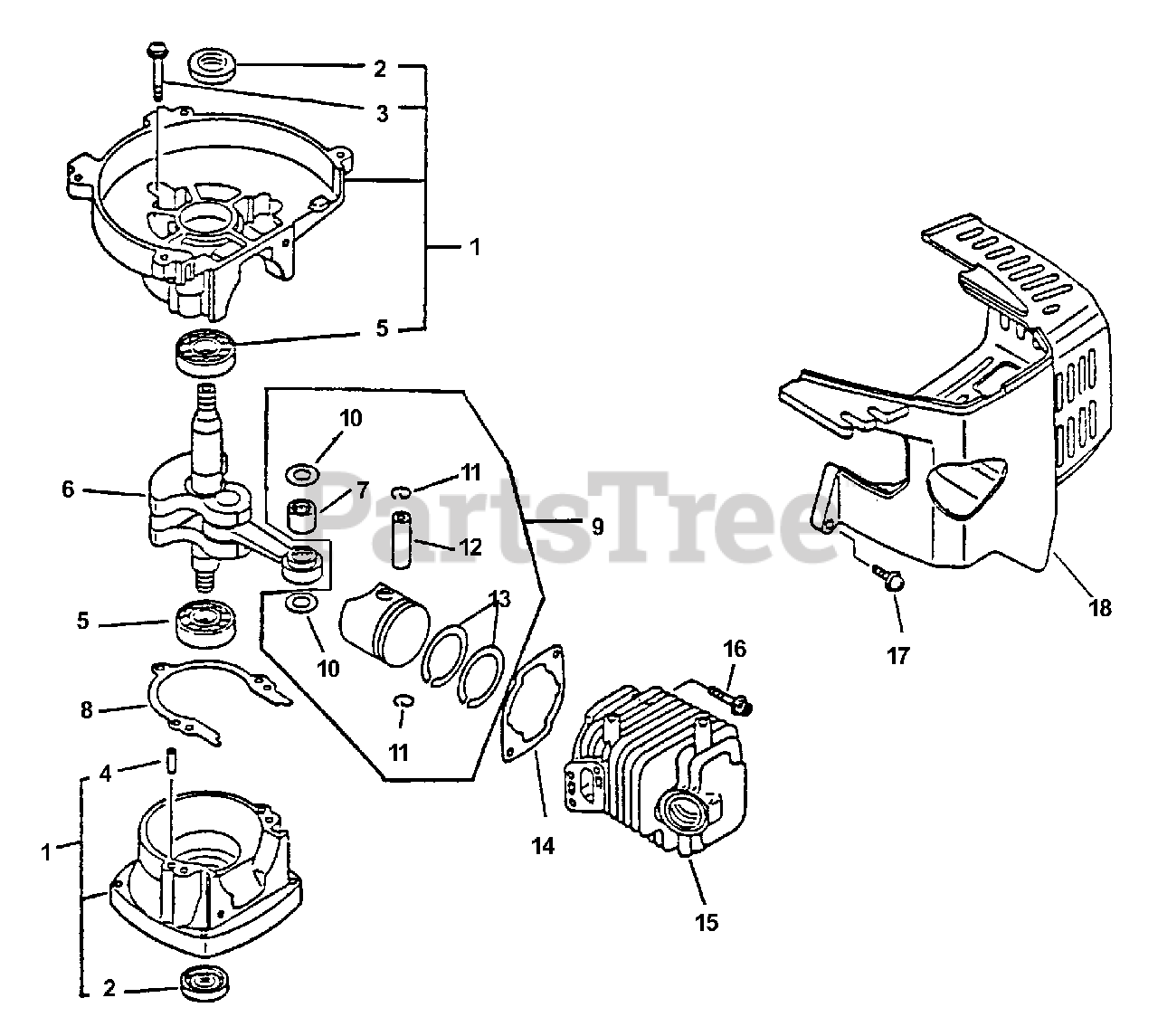

HC-2000 - Echo Hedge Trimmer (Type 1) Crankcase, Engine, Engine Cover, Fan Case Parts Diagram

Hedge Trimmer (Type 1)

Crankcase, Engine, Engine Cover, Fan Case Parts Diagram

  • Title

1

CRANKCASE KIT

Note: USE SB1032

$

$

Not available

2

Echo 100212-42031

SEAL, OIL 12

$7.99

$

In Stock, Qty 20+

0

3

Echo 900162-05028

BOLT 5×28

$2.49

$

In Stock, Qty 10

0

4

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, only 4 left!

0

5

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

6

CRANKSHAFT ASSY

Note: USE SB1032

$

$

Not available

7

Echo 10001251230

BEARING, NEEDLE
(Superseded to V553000010)

Note: S/N 001001 - 037263

$11.99

$

In Stock, only 2 left!

0

7

Echo 10011305930

BEARING, NEEDLE

Note: S/N 037264 & UP

$13.99

$

Usually ships in 2-4 days

0

8

GASKET, CRANKCASE

Note: INCLUDED IN KIT 88900006560

$

$

Not available

9

Echo 10000044330

PISTON KIT
(Superseded to 10000044331)

Note: S/N 001001 - 015999; INCLUDES ITEMS 10 - 13

$78.99

$

Usually ships in 2-4 days

0

9

Echo 10000011520

PISTON KIT
(Superseded to 10000011521)

Note: S/N 016000 & UP; INCLUDES ITEMS 10 - 13

$77.99

$

In Stock, only 2 left!

0

10

Echo 100014-11520

WASHER, THRUST

Note: S/N 001001 - 037263

$3.99

$

In Stock, only 2 left!

0

10

Echo 10001408960

WASHER, THRUST

Note: S/N 037264 & UP

$3.99

$

Usually ships in 2-4 days

0

11

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

12

Echo 100013-11520

PIN, PISTON 8

$8.49

$

In Stock, only 2 left!

0

13

Echo 100011-05330

RING, PISTON
(Superseded to 10001105330)

Note: (S/N 001001 - 015999 QTY 1)

$10.99

$

In Stock, Qty 8

0

14

Echo 101010-44332

GASKET, CYLINDER

Note: INCLUDED IN KIT 88900006560

$4.99

$

In Stock, Qty 6

0

15

Echo 101011-45230

CYLINDER

Note: S/N 001001 - 037263

$153.99

$

Usually ships in 2-4 days

0

15

Echo 10101106562

CYLINDER

Note: S/N 037264 & UP

$130.99

$

Usually ships in 2-4 days

0

16

Echo 900162-05022

BOLT 5×22

$0.99

$

In Stock, only 3 left!

0

17

Echo 900238-04022

SCREW 4×22

$0.99

$

In Stock, only 2 left!

0

18

Echo 10151408960

COVER, CYLINDER
(Superseded to Discontinued)

$

$

Not available

Echo SB1032

SHORT BLOCK HC-1600/2000 1E
(Superseded to Discontinued)

$

$

Not available

Echo 88900006560

GASKET KIT
(Superseded to P021000350)

Note: INCLUDES THE FOLLOWING ITEMS

$15.99

$

Usually ships in 2-4 days

0

GASKET, CRANKCASE

$

$

Not available

Echo 101010-44332

GASKET, CYLINDER

$4.99

$

In Stock, Qty 6

0

Echo V103000490

HEAT SHIELD, INTAKE
(Superseded to V103001360)

$2.99

$

In Stock, Qty 10

0

Echo 130016-42031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

Echo V104000160

GASKET, EXHAUST

$2.49

$

In Stock, Qty 20+

0

Echo 145866-42031

GASKET, EXHAUST

$2.99

$

In Stock, only 2 left!

0

Echo 61041405360

GASKET, GEAR CASE

$1.49

$

In Stock, only 2 left!

0
