HC-2000 - Echo Hedge Trimmer (Type 1) Fuel System, Handles, Ignition Switch, Throttle Parts Diagram

Hedge Trimmer (Type 1)

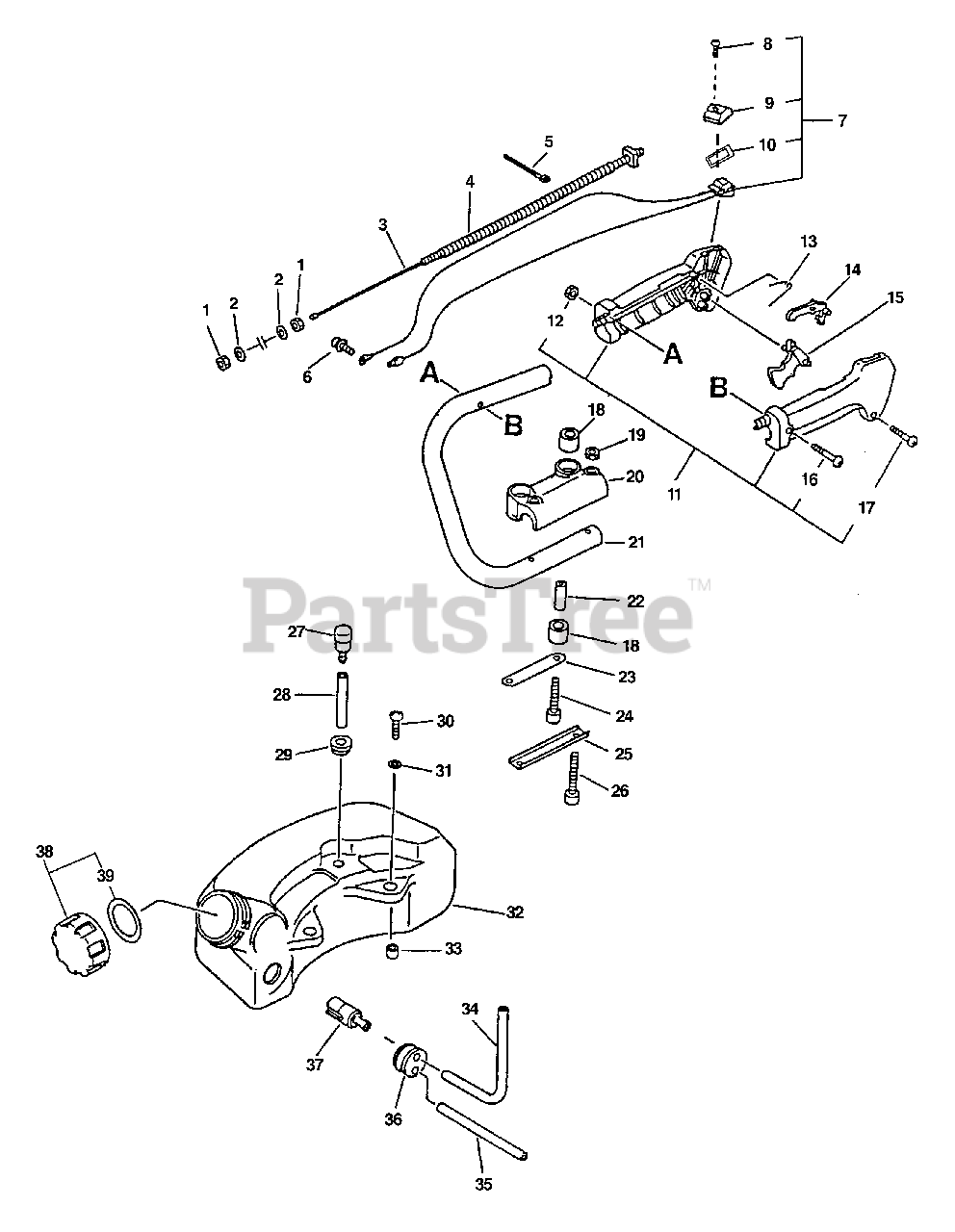

Fuel System, Handles, Ignition Switch, Throttle Parts Diagram

  • Title

1

Echo 90050200006

NUT - 6

$0.99

$

In Stock, Qty 20+

0

2

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

3

Echo 17800105960

CABLE, THROTTLE

$23.99

$

Usually ships in 2-4 days

0

4

Echo 17812705960

TUBE

$2.99

$

Usually ships in 2-4 days

0

5

Echo 17812110050

TIE, CABLE

$0.99

$

In Stock, Qty 6

0

6

Echo 90023805010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

7

Echo 16340005960

IGNITION SWITCH ASSY
(Superseded to A440000320)

Note: INCLUDES ITEMS 8-10

$10.99

$

Usually ships in 2-4 days

0

8

Echo 90022003010

SCREW - 3X10

$0.99

$

In Stock, Qty 12

0

9

Echo 16341049231

KNOB, SWITCH - ORANGE

$4.99

$

In Stock, Qty 20+

0

10

Echo 89015712330

COVER, SWITCH - STOP

$3.99

$

In Stock, only 2 left!

0

11

Echo 35110247530

THROTTLE CONTROL ASSY

Note: INCLUDES ITEMS 12, 16, 17

$41.99

$

In Stock, only 2 left!

0

12

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

13

Echo 17801335631

SPRING, LOCKOUT LEVER

$2.99

$

In Stock, Qty 5

0

14

Echo 17801205960

LOCKOUT, THROTTLE

$6.99

$

Usually ships in 2-4 days

0

15

Echo 17801005960

TRIGGER, THROTTLE

$6.49

$

In Stock, only 2 left!

0

16

Echo 90022005030

SCREW - 5X30

$0.99

$

Usually ships in 2-4 days

0

17

Echo 90024603025

SCREW - 3X25

$0.99

$

Usually ships in 2-4 days

0

18

Echo 35122807760

CUSHION

$3.49

$

In Stock, Qty 20+

0

19

Echo 90056000005

LOCKNUT - 5

$1.49

$

In Stock, Qty 20+

0

20

Echo 35121707760

SUPPORTER, HANDLE
(Superseded to 35121707761)

$15.99

$

Usually ships in 2-4 days

0

21

Echo 35120508961

HANDLE - REAR

$52.99

$

Usually ships in 2-4 days

0

22

Echo 35124101260

SPACER
(Superseded to 35124101261)

$3.49

$

In Stock, Qty 16

0

23

Echo 35124206960

PLATE
(Superseded to 35124206961)

$2.99

$

Usually ships in 2-4 days

0

24

Echo 90016205045

SCREW - 5X40

$1.99

$

Usually ships in 2-4 days

0

25

Echo 35124301260

BRACKET, HANDLE - LOWER

$3.49

$

Usually ships in 2-4 days

0

26

Echo 90016205035

SCREW - 5X35

$1.99

$

In Stock, Qty 17

0

27

Echo A356000031

VENT, FUEL TANK

$9.49

$

In Stock, Qty 20+

0

28

Echo 13201021160

PIPE - 3X6X35 -- BLACK
(Superseded to V471001180)

Note: RePower BULK OPTION: 90015

$2.49

$

In Stock, Qty 20+

0

29

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.99

$

In Stock, Qty 20+

0

30

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

31

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

32

Echo 13100208960

TANK, FUEL
(Superseded to 13100208961)

$

$

Not available

33

Echo 13104528230

SLEEVE

$1.99

$

In Stock, Qty 20+

0

34

Echo 13201002160

PIPE, FUEL - CORRUGATED

$6.99

$

In Stock, only 2 left!

0

35

Echo 13201006460

PIPE - 3X6X110 -- CLEAR

Note: RePower BULK OPTION: 90017

$3.99

$

In Stock, Qty 19

0

36

Echo 13211544330

GROMMET
(Superseded to 13211544331)

$2.49

$

In Stock, Qty 20+

0

37

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

Note: INCLUDED IN KIT 90008

$6.49

$

In Stock, Qty 20+

0

38

Echo 13100455830

CAP ASSY
(Superseded to P200000830)

Note: INCLUDES ITEM 39 (USE CAP/VENT KIT 90010)

$5.49

$

In Stock, only 2 left!

0

39

Echo 13101655830

GASKET, CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 19

0

Echo 90008

RePower FILTER KIT
(Superseded to 90152)

$21.99

$

In Stock, Qty 20+

0

Echo 90010

Repower CAP AND VENT KIT
(Superseded to 90248)

$

$

Not available
