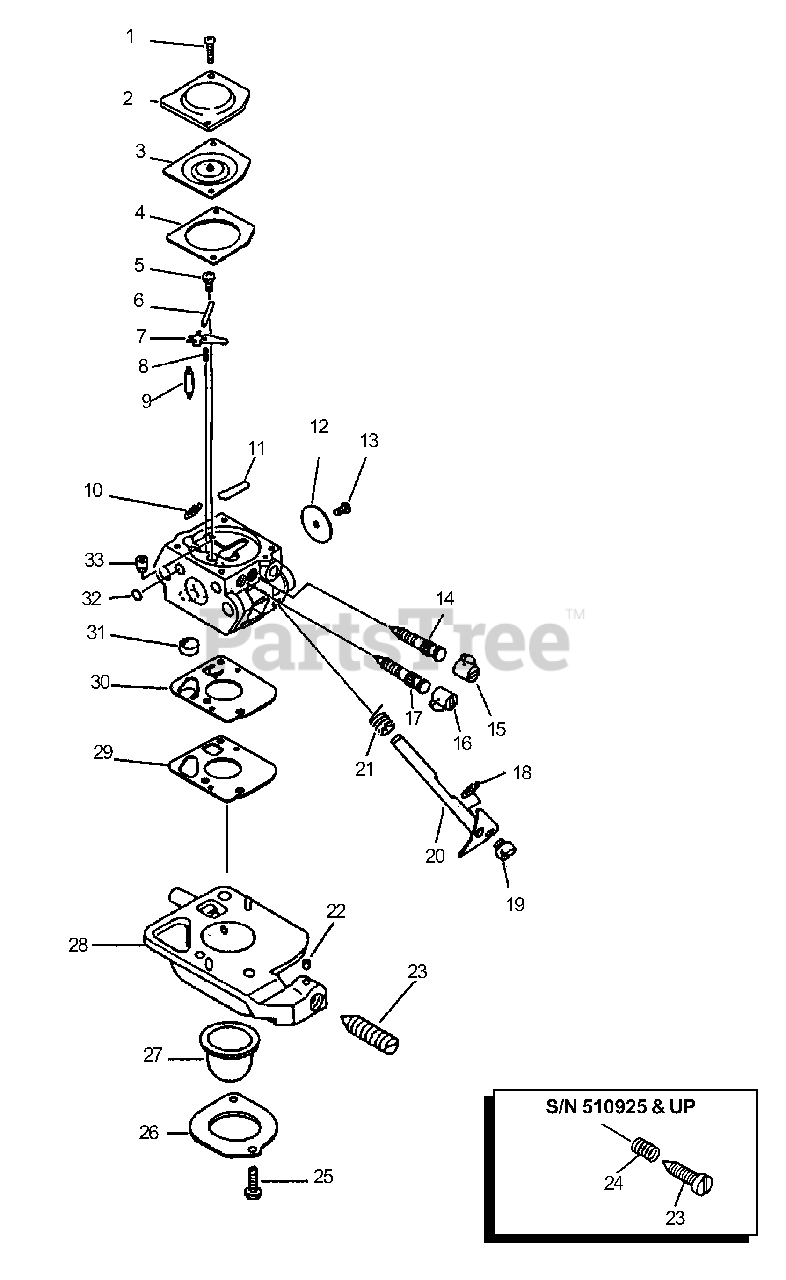

HC-2000 - Echo Hedge Trimmer (Type 1E) Carburetor Parts Diagram

Hedge Trimmer (Type 1E)

Carburetor Parts Diagram

  • Title

1

Echo 12534452130

SCREW

$0.99

$

In Stock, Qty 10

0

2

Echo 12534213210

COVER, METERING
(Superseded to 12534252130)

$4.49

$

Usually ships in 2-4 days

0

3

------------------

DIAPHRAGM, METERING

Note: Included in Gasket/Diaphragm Kit P/N 12530313310 & Repair Kit P/N 12530013310

$

$

Not available

4

------------------

GASKET, METERING

Note: Included in Gasket/Diaphragm Kit P/N 12530313310 & Repair Kit P/N 12530013310

$

$

Not available

5

Echo 12533942030

SCREW, METERING LEVER PIN

$0.99

$

In Stock, Qty 12

0

6

------------------

PIN, METERING LEVER

Note: Included in Repair Kit P/N 12530013310

$

$

Not available

7

------------------

LEVER, METERING

Note: Included in Repair Kit P/N 12530013310

$

$

Not available

8

------------------

SPRING, METERING LEVER

Note: Included in Repair Kit P/N 12530013310

$

$

Not available

9

------------------

VALVE, NEEDLE

Note: Included in Repair Kit P/N 12530013310

$

$

Not available

10

Echo 12532715130

RING, RETAINING

$0.99

$

In Stock, Qty 7

0

11

------------------

PLUG, WELCH

Note: Included in Repair Kit P/N 12530013310

$

$

Not available

12

Echo 12531649030

VALVE, THROTTLE

$2.99

$

Usually ships in 2-4 days

0

13

Echo 12531413930

SCREW

$1.49

$

Usually ships in 2-4 days

0

14

Echo 12531813120

NEEDLE - LOW SPEED

$5.49

$

Usually ships in 2-4 days

0

15

Echo 12532909860

CAP, LIMITER

$2.49

$

In Stock, Qty 13

0

16

Echo 12532939030

CAP, LIMITER

$1.99

$

In Stock, Qty 11

0

17

Echo 12532013310

NEEDLE - HIGH SPEED

$4.49

$

Usually ships in 2-4 days

0

18

Echo 12532713930

RING, RETAINING

$0.99

$

In Stock, Qty 7

0

19

Echo 12537242030

SWIVEL

$4.99

$

Usually ships in 2-4 days

0

20

Echo 12531713310

SHAFT, THROTTLE

$7.49

$

In Stock, only 1 left!

0

21

Echo 12531342030

SPRING, RETURN

$1.49

$

In Stock, Qty 12

0

22

Echo 12537813930

PIECE, FRICTION

Note: S/N 001001 - 510924

$1.99

$

Usually ships in 2-4 days

0

23

Echo 12533413930

SCREW, IDLE ADJUST

Note: S/N 001001 - 510924

$1.99

$

In Stock, only 4 left!

0

23

Echo 12533406960

SCREW, IDLE ADJUST

Note: S/N 510925 & UP

$5.49

$

Usually ships in 2-4 days

0

24

Echo 12533306960

SPRING, IDLE ADJUST

Note: S/N 510925 & UP

$1.49

$

In Stock, Qty 10

0

25

Echo 12531011610

SCREW, RETAINER

$1.49

$

In Stock, Qty 9

0

26

Echo 12536311610

RETAINER, PURGE BULB

$2.49

$

In Stock, Qty 20+

0

27

Echo 12538108660

BULB, PURGE
(Superseded to P005003120)

$6.99

$

In Stock, Qty 20+

0

28

Echo P005000990

BASE, PURGE

$25.99

$

In Stock, only 2 left!

0

29

------------------

GASKET, PURGE

Note: Included in Gasket/Diaphragm Kit P/N 12530313310 & Repair Kit P/N 12530013310

$

$

Not available

30

------------------

DIAPHRAGM, PURGE

Note: Included in Gasket/Diaphragm Kit P/N 12530313310 & Repair Kit P/N 12530013310

$

$

Not available

31

------------------

STRAINER

Note: Included in Repair Kit P/N 12530013310

$

$

Not available

32

Echo 12534513310

PLUG, WELCH

$1.49

$

Usually ships in 2-4 days

0

33

Echo 12537613120

NOZZLE, CHECK VALVE

$6.99

$

Usually ships in 2-4 days

0

A

Echo 12530313310

DIAPHRAGM/GASKET KIT

$9.99

$

In Stock, only 1 left!

0

B

Echo 12530013310

REPAIR KIT
(Superseded to P005002840)

$20.99

$

Usually ships in 2-4 days

0
