HC-2000 - Echo Hedge Trimmer (Type 1E) Gear Case, Blades, Handle Parts Diagram

Hedge Trimmer (Type 1E)

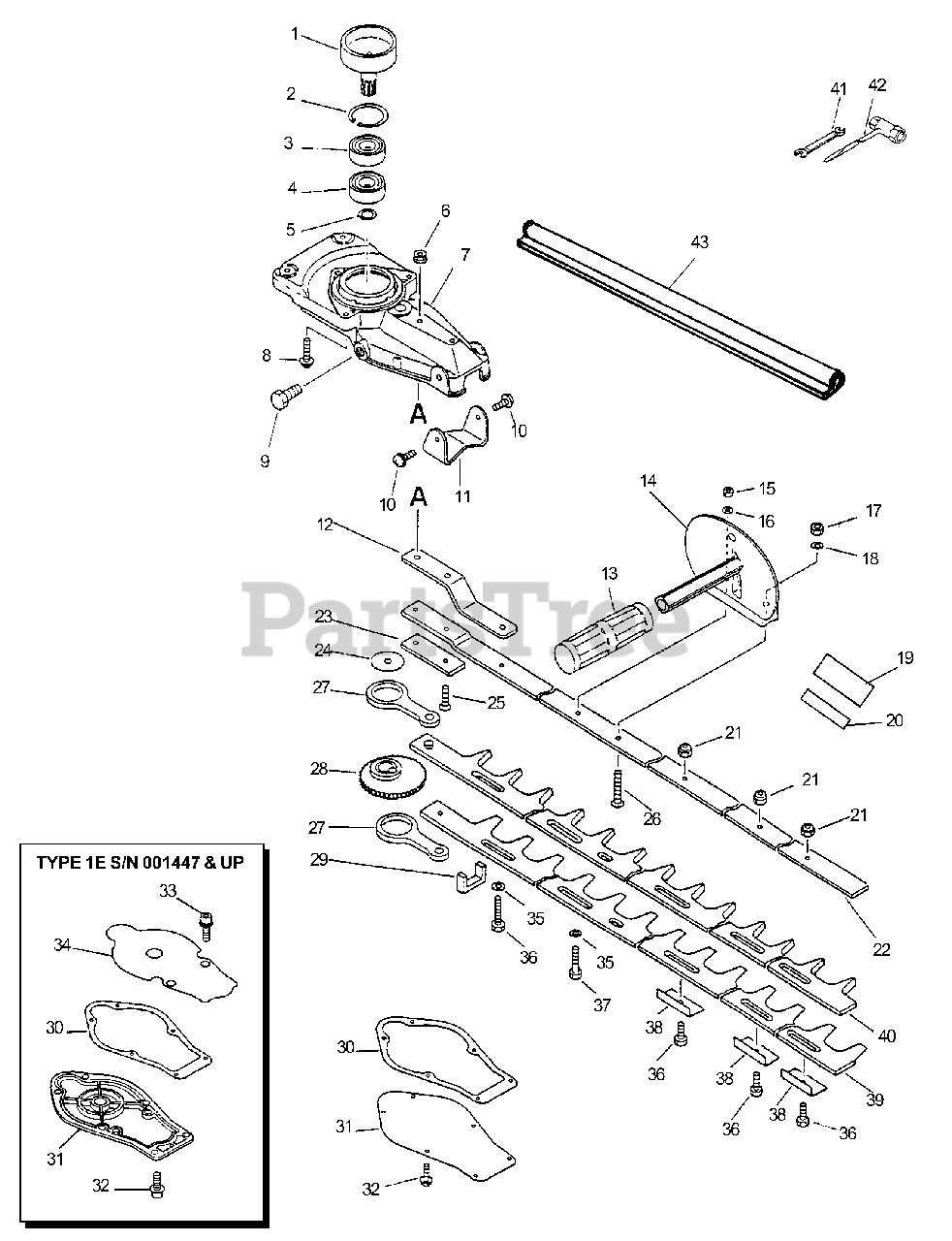

Gear Case, Blades, Handle Parts Diagram

  • Title

1

Echo 17500504560

DRUM, CLUTCH

$52.99

$

In Stock, only 3 left!

0

2

Echo 90070200030

E-RING 30

$2.49

$

Usually ships in 2-4 days

0

3

Echo 90081336202

BEARING, BALL 6202

$12.99

$

In Stock, only 3 left!

0

4

Echo 90081036202

BEARING, BALL 6202

$11.99

$

In Stock, only 2 left!

0

5

Echo 90070100014

RING, SNAP 14

$1.49

$

In Stock, only 2 left!

0

6

Echo 900500-00006

NUT, HEX M6

$0.99

$

In Stock, Qty 20+

0

7

Echo 61041007760

HOUSING, GEAR CASE

Note: S/N 001001 - 001446

$166.99

$

Usually ships in 2-4 days

0

7

Echo 61040707760

CASE, GEAR

Note: S/N 001447 & UP

$166.99

$

Usually ships in 2-4 days

0

8

Echo 900242-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

9

Echo 90010008008

BOLT 8×8 SP

$0.99

$

In Stock, Qty 10

0

10

Echo 90023805010

SCREW 5×10

Note: S/N 001001 - 01446

$0.99

$

In Stock, Qty 13

0

11

Echo 30511007760

STAND

Note: S/N 001001 - 001446

$5.99

$

Usually ships in 2-4 days

0

12

Echo 69912007760

PLATE, ANGLE
(Superseded to 69912006560)

$5.99

$

Usually ships in 2-4 days

0

13

Echo 35101201260

GRIP

$8.99

$

Usually ships in 2-4 days

0

14

Echo 35101002060

HANDLE, FRONT

$55.99

$

Usually ships in 2-4 days

0

15

Echo 90056000006

NUT, LOCK 6

$1.49

$

In Stock, Qty 20+

0

16

Echo 30021700610

WASHER 5.5×18×1

$0.99

$

In Stock, Qty 10

0

17

Echo 90056000005

NUT, LOCK M5

$1.49

$

In Stock, Qty 14

0

18

Echo 30021700610

WASHER 5.5×18×1

$0.99

$

In Stock, Qty 10

0

19

Echo X505000270

LABEL, CAUTION
(Superseded to X505000271)

$3.99

$

Usually ships in 2-4 days

0

20

Echo X505000280

LABEL, CAUTION - ISO

$2.49

$

Usually ships in 2-4 days

0

21

Echo 90056000006

NUT, LOCK 6

$1.49

$

In Stock, Qty 20+

0

22

Echo 69911007760

BAR, FRAME
(Superseded to X425000040)

$31.99

$

Usually ships in 2-4 days

0

23

Echo 69911807760

PLATE, EYE

$4.49

$

Usually ships in 2-4 days

0

24

Echo 61035004560

WASHER

$1.99

$

In Stock, only 3 left!

0

25

Echo 90021206025

SCREW 6×25

$0.99

$

In Stock, Qty 9

0

26

Echo 90021205030

SCREW 5×30

$0.99

$

In Stock, Qty 16

0

27

Echo 61033004560

ROD, CONNECTING
(Superseded to 61033004561)

$28.99

$

In Stock, only 2 left!

0

28

Echo 61031204560

GEAR

$91.99

$

In Stock, only 4 left!

0

29

Echo 61042504560

SEAL

$1.49

$

In Stock, Qty 5

0

30

Echo 61041405360

GASKET, GEAR CASE

Note: INCLUDED IN KIT P021000350

$1.49

$

In Stock, only 2 left!

0

31

Echo 61041105360

LID, GEAR CASE
(Superseded to 61041105361)

Note: S/N 001001 - 001446

$7.99

$

Usually ships in 2-4 days

0

31

Echo 61041107760

COVER, GEAR CASE

Note: S/N 001447 & UP

$93.99

$

Usually ships in 2-4 days

0

32

Echo 90016204010

BOLT 4×10

Note: S/N 001001 - 001446

$1.49

$

In Stock, Qty 20+

0

32

Echo 90016204012

BOLT 4×12

Note: S/N 001447 & UP

$1.49

$

In Stock, Qty 20+

0

33

Echo 90016205012

BOLT 5×12

Note: S/N 001447 & UP

$0.99

$

In Stock, Qty 20+

0

34

Echo 61044707760

PLATE, GEAR CASE
(Superseded to Discontinued)

Note: S/N 001447 & UP

$

$

Not available

35

Echo 69911804560

WASHER 6.5×15.5×0.6

$0.99

$

In Stock, Qty 20+

0

36

Echo 69911507760

BOLT, CUTTER

$3.99

$

In Stock, Qty 11

0

37

Echo 69911507360

BOLT

$

$

Currently unavailable

38

Echo 69921304160

INSULATOR

$5.99

$

In Stock, Qty 18

0

39

Echo 69701107760

BLADE - LOWER
(Superseded to X411000070)

$44.99

$

Usually ships in 2-4 days

0

40

Echo 69701007760

BLADE - UPPER
(Superseded to X411000060)

$44.99

$

Usually ships in 2-4 days

0

41

Echo 895112-00330

SPANNER 8×10

$0.99

$

In Stock, Qty 6

0

42

Echo 89541006960

T-WRENCH 13×19×180
(Superseded to 89541006961)

$4.49

$

In Stock, only 2 left!

0

43

Echo 89852302961

SCABBARD

$24.99

$

Usually ships in 2-4 days

0

Echo 12520005961

CARBURETOR - C1U-K51
(Superseded to 12520005962)

Note: S/N 001001 - 510924; INCLUDES THE FOLLOWING ITEMS

$95.99

$

In Stock, only 2 left!

0

Echo 12520005962

CARBURETOR - C1U-K51
(Superseded to 12520005963)

Note: S/N 510925 & UP; INCLUDES THE FOLLOWING ITEMS

$95.99

$

In Stock, only 2 left!

0

Echo P021000350

GASKET KIT
(Superseded to P021000351)

$15.99

$

Usually ships in 2-4 days

0
