HC-2000 - Echo Hedge Trimmer (Type 1E) Gear Case, Blades, Handle Parts Diagram

Hedge Trimmer (Type 1E)

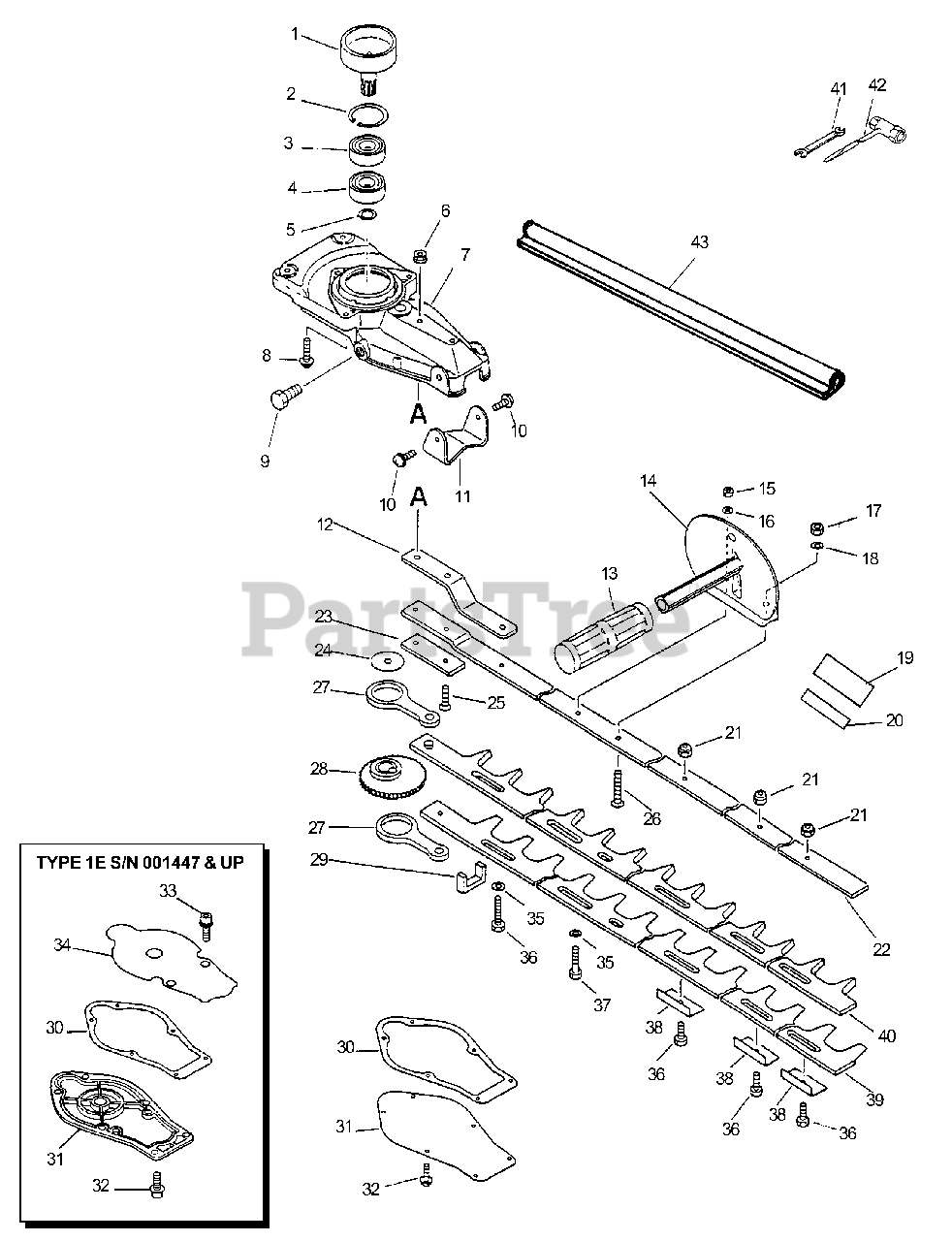

Gear Case, Blades, Handle Parts Diagram

  • Title

1

Echo 17500504560

DRUM, CLUTCH

$52.99

$

In Stock, only 3 left!

0

2

Echo 90070200030

RING, RETAINING - 30

$2.49

$

Usually ships in 2-4 days

0

3

Echo 90081336202

BEARING, BALL - 6202

$12.99

$

In Stock, only 1 left!

0

4

Echo 90081036202

BEARING, BALL - 6202

$11.99

$

In Stock, only 1 left!

0

5

Echo 90070100014

RING, RETAINING - 14

$1.49

$

In Stock, only 2 left!

0

6

Echo 90050000006

LOCKNUT - 6

$0.99

$

In Stock, Qty 20+

0

7

Echo 61041007760

CASE, GEAR

Note: S/N 001001 - 001446

$166.99

$

Usually ships in 2-4 days

0

7

Echo 61040707760

CASE, GEAR - UPPER

Note: S/N 001447 & UP

$166.99

$

Usually ships in 2-4 days

0

8

Echo 90024205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

9

Echo 90010008008

BOLT - 8X8

$0.99

$

In Stock, Qty 10

0

10

Echo 90023805010

SCREW - 5X10

Note: S/N 001001 - 01446

$0.99

$

In Stock, Qty 17

0

11

Echo 30511007760

STAND

Note: S/N 001001 - 001446

$5.99

$

Usually ships in 2-4 days

0

12

Echo 69912007760

PLATE, ANGLE
(Superseded to 69912006560)

$5.99

$

Usually ships in 2-4 days

0

13

Echo 35101201260

GRIP, HANDLE

$8.99

$

Usually ships in 2-4 days

0

14

Echo 35101002060

HANDLE - FRONT

$55.99

$

Usually ships in 2-4 days

0

15

Echo 90056000006

LOCKNUT

$1.49

$

In Stock, Qty 20+

0

16

Echo 30021700610

WASHER

$0.99

$

In Stock, only 3 left!

0

17

Echo 90056000005

LOCKNUT - 5

$1.49

$

In Stock, Qty 20+

0

18

Echo 30021700610

WASHER

$0.99

$

In Stock, only 3 left!

0

19

Echo X505000270

LABEL - CAUTION
(Superseded to X505000271)

$3.99

$

Usually ships in 2-4 days

0

20

Echo X505000280

LABEL - CAUTION

$2.49

$

Usually ships in 2-4 days

0

21

Echo 90056000006

LOCKNUT

$1.49

$

In Stock, Qty 20+

0

22

Echo 69911007760

SUPPORT, BLADE
(Superseded to X425000040)

$31.99

$

Usually ships in 2-4 days

0

23

Echo 69911807760

PLATE

$4.49

$

Usually ships in 2-4 days

0

24

Echo 61035004560

WASHER

$1.99

$

In Stock, only 3 left!

0

25

Echo 90021206025

SCREW - 6X25

$0.99

$

In Stock, Qty 10

0

26

Echo 90021205030

SCREW - 5X30

$0.99

$

In Stock, Qty 6

0

27

Echo 61033004560

ROD, CONNECTING
(Superseded to 61033004561)

$28.99

$

Usually ships in 2-4 days

0

28

Echo 61031204560

GEAR - DRIVE

$91.99

$

In Stock, only 4 left!

0

29

Echo 61042504560

SEAL, FELT

$1.49

$

In Stock, Qty 5

0

30

Echo 61041405360

GASKET, GEAR CASE

Note: INCLUDED IN KIT P021000350

$1.49

$

In Stock, only 2 left!

0

31

Echo 61041105360

LID, GEAR CASE
(Superseded to 61041105361)

Note: S/N 001001 - 001446

$7.99

$

Usually ships in 2-4 days

0

31

Echo 61041107760

LID, GEAR CASE - LOWER

Note: S/N 001447 & UP

$93.99

$

Usually ships in 2-4 days

0

32

Echo 90016204010

SCREW - 4X10

Note: S/N 001001 - 001446

$1.49

$

In Stock, Qty 20+

0

32

Echo 90016204012

SCREW - 4X12

Note: S/N 001447 & UP

$1.49

$

In Stock, Qty 20+

0

33

Echo 90016205012

SCREW - 5X12

Note: S/N 001447 & UP

$0.99

$

In Stock, Qty 20+

0

34

Echo 61044707760

LID, GEAR CASE
(Superseded to Discontinued)

Note: S/N 001447 & UP

$

$

Not available

35

Echo 69911804560

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

36

Echo 69911507760

BOLT - 6X22

$3.99

$

In Stock, Qty 11

0

37

Echo 69911507360

BOLT

$

$

Currently unavailable

38

Echo 69921304160

INSULATOR

$5.99

$

In Stock, Qty 18

0

39

Echo 69701107760

BLADE - LOWER
(Superseded to X411000070)

$44.99

$

Usually ships in 2-4 days

0

40

Echo 69701007760

BLADE - UPPER
(Superseded to X411000060)

$44.99

$

Usually ships in 2-4 days

0

41

Echo 89511200330

SPANNER - 8X10mm

$0.99

$

In Stock, Qty 6

0

42

Echo 89541006960

T-WRENCH - 13X19mm
(Superseded to 89541006961)

$4.49

$

In Stock, only 2 left!

0

43

Echo 89852302961

COVER, BLADE

$24.99

$

Usually ships in 2-4 days

0

Echo 12520005961

CARBURETOR C1U-K51
(Superseded to 12520005962)

Note: S/N 001001 - 510924; INCLUDES THE FOLLOWING ITEMS

$95.99

$

In Stock, only 2 left!

0

Echo 12520005962

CARBURETOR C1U-K51
(Superseded to 12520005963)

Note: S/N 510925 & UP; INCLUDES THE FOLLOWING ITEMS

$95.99

$

In Stock, only 2 left!

0

Echo P021000350

GASKET KIT
(Superseded to P021000351)

$15.99

$

Usually ships in 2-4 days

0
