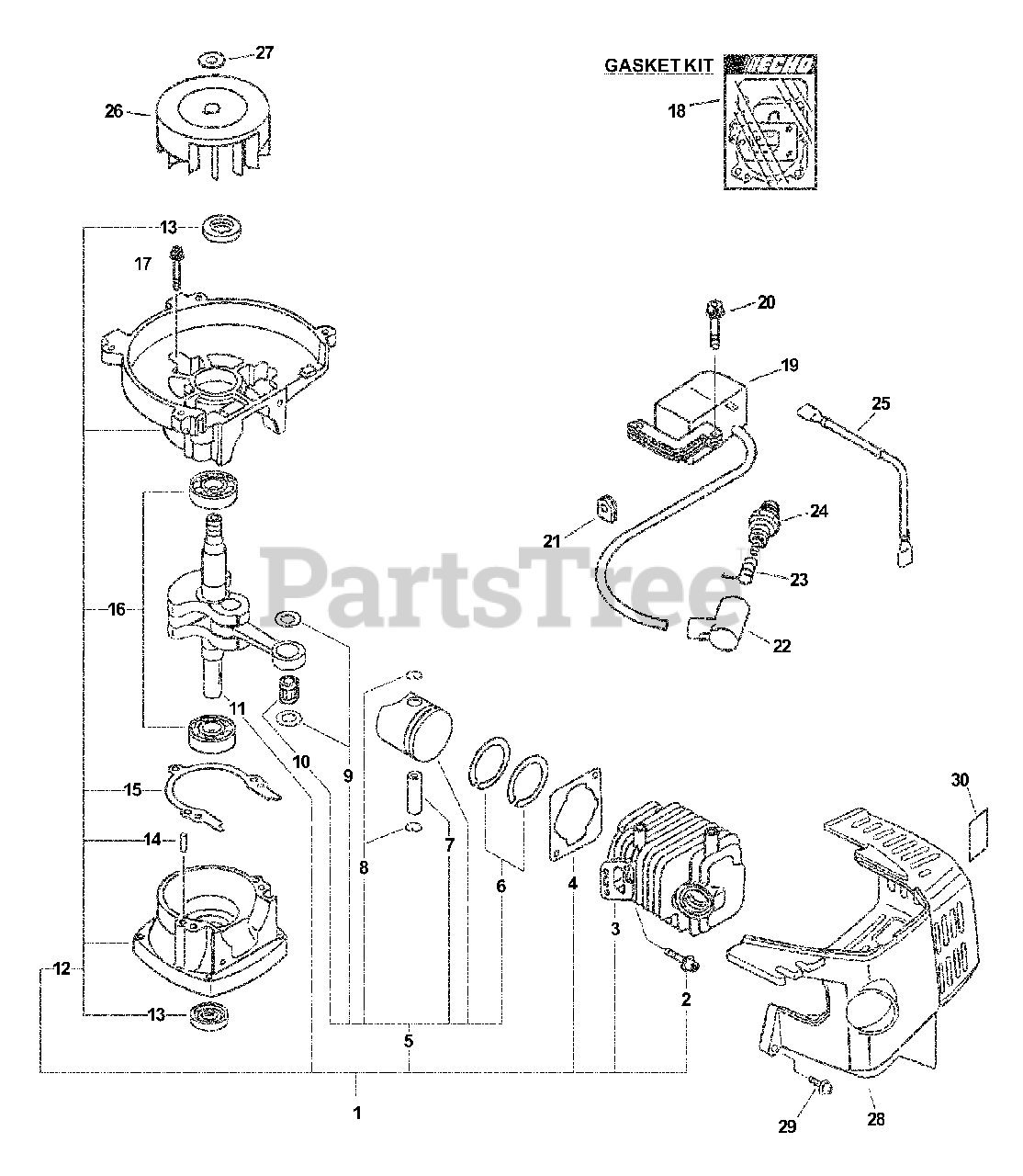

HC-201 - Echo Hedge Trimmer (SN: 02001001 - 02999999) Engine, Short Block, Ignition, Cylinder Cover Parts Diagram

Hedge Trimmer

Engine, Short Block, Ignition, Cylinder Cover Parts Diagram

  • Title

1

Echo SB1051

SHORT BLOCK -- SB1051
(Superseded to Discontinued)

Note: INCLUDES ITEM 2-17; OPTIONAL ENGINE REPOWER

$

$

Not available

2

Echo 90016204022

SCREW - 4X22

$0.99

$

In Stock, Qty 20+

0

3

Echo A130000100

CYLINDER
(Superseded to A130000101)

$128.99

$

Usually ships in 2-4 days

0

4

Echo V100000020

GASKET, CYLINDER
(Superseded to Discontinued)

$

$

Not available

5

Echo P021001111

PISTON KIT
(Superseded to P021001112)

Note: Includes ITEMS 6-10

$64.99

$

Usually ships in 2-4 days

0

6

Echo A101000000

RING, PISTON

$9.49

$

In Stock, Qty 20+

0

7

Echo 10001311520

PIN, PISTON

$7.99

$

Usually ships in 2-4 days

0

8

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

9

Echo 10001408960

WASHER

$3.99

$

Usually ships in 2-4 days

0

10

Echo 10011305930

BEARING, NEEDLE - 8

$12.99

$

Usually ships in 2-4 days

0

11

Echo A011000220

CRANKSHAFT ASSY
(Superseded to A011000221)

$179.99

$

Usually ships in 2-4 days

0

12

Echo 10020452132

CRANKCASE KIT
(Superseded to 10020452133)

Note: Includes ITEMS 13-17

$156.99

$

Usually ships in 2-4 days

0

13

Echo 10021242031

SEAL, OIL

$7.49

$

In Stock, Qty 18

0

14

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

15

Echo 10024242030

GASKET, CRANKCASE

$1.49

$

In Stock, Qty 20+

0

16

Echo 9403536201

BEARING, BALL - 6201

$8.99

$

In Stock, Qty 17

0

17

Echo 90016205028

SCREW - 5X28

$2.49

$

In Stock, Qty 11

0

18

Echo P021001851

GASKET KIT
(Superseded to Discontinued)

$

$

Not available

19

Echo 15660152130

COIL, IGNITION
(Superseded to 15660152131)

$133.99

$

In Stock, only 1 left!

0

20

Echo 90016204022

SCREW - 4X22

$0.99

$

In Stock, Qty 20+

0

21

Echo 15611004920

GROMMET

$0.99

$

In Stock, Qty 20+

0

22

Echo 15901201620

CAP, SPARK PLUG

$1.99

$

In Stock, Qty 9

0

23

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

24

Echo 99944500071

SPARK PLUG -- BPM-7Y

$

$

Not available

25

Echo 16202152830

LEAD - IGNITION
(Superseded to V485001080)

$4.49

$

In Stock, only 1 left!

0

26

Echo A409000000

FLYWHEEL
(Superseded to A409000100)

$63.99

$

Usually ships in 2-4 days

0

27

Echo 90060000008

WASHER - 8

$0.99

$

In Stock, Qty 7

0

28

Echo A160000160

COVER, ENGINE
(Superseded to A160000161)

$16.99

$

Usually ships in 2-4 days

0

29

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 19

0

30

Echo X505002310

LABEL - HOT SURFACE

$1.99

$

In Stock, only 4 left!

0
