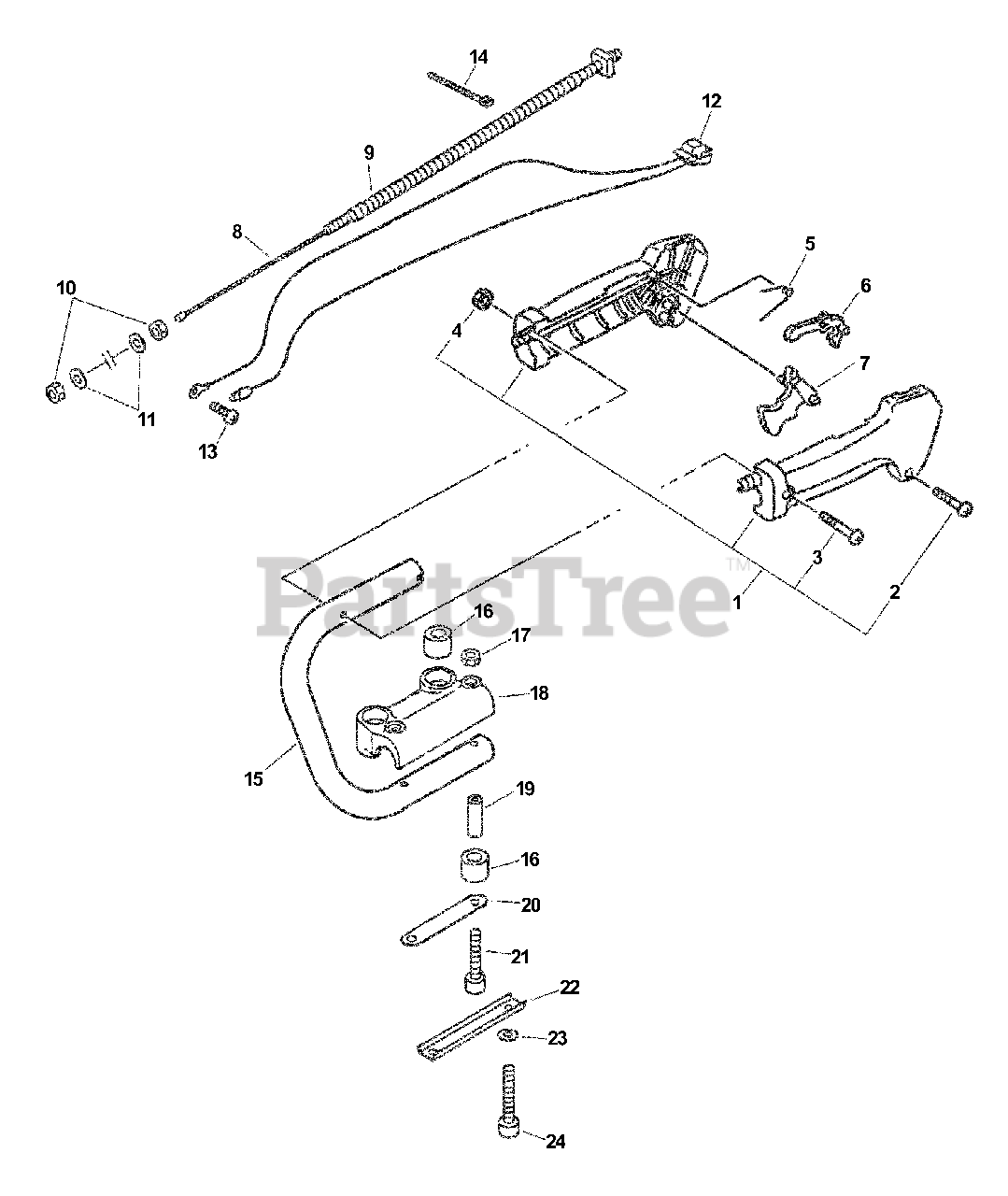

HC-201 - Echo Hedge Trimmer (SN: 02001001 - 02999999) Handle, Ignition Switch, Throttle Cable Parts Diagram

Hedge Trimmer

Handle, Ignition Switch, Throttle Cable Parts Diagram

  • Title

1

Echo 351102-47530

CONTROL HANDLE KIT

Note: INCLUDES ITEMS 2-4

$41.99

$

In Stock, only 2 left!

0

2

Echo 900246-03025

SCREW 3×25

$0.99

$

Usually ships in 2-4 days

0

3

Echo 900220-05030

SCREW 5×30

$0.99

$

Usually ships in 2-4 days

0

4

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

5

Echo 178013-35631

SPRING, TORSION

$2.99

$

In Stock, Qty 5

0

6

Echo 178012-05960

LOCKOUT, THROTTLE

$6.99

$

In Stock, only 2 left!

0

7

Echo 178010-05960

TRIGGER, THROTTLE

$6.49

$

In Stock, only 2 left!

0

8

Echo 17800105960

CABLE, THROTTLE

$23.99

$

Usually ships in 2-4 days

0

9

Echo 17812705960

PIPE

$2.99

$

Usually ships in 2-4 days

0

10

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 12

0

11

Echo 90060000006

WASHER 6.5×11.5×0.8

$0.99

$

In Stock, Qty 20+

0

12

Echo 16340005960

IGNITION SWITCH ASSY
(Superseded to A440000320)

$10.99

$

Usually ships in 2-4 days

0

13

Echo 90023805010

SCREW 5×10

$0.99

$

In Stock, Qty 13

0

14

Echo 17812110050

TIE, CABLE

$0.99

$

In Stock, Qty 6

0

15

Echo 35120508961

HANDLE, REAR

$52.99

$

Usually ships in 2-4 days

0

16

Echo 35122807760

CUSHION

$3.49

$

In Stock, Qty 20+

0

17

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

18

Echo 35121707760

SUPPORTER, HANDLE
(Superseded to 35121707761)

$15.99

$

Usually ships in 2-4 days

0

19

Echo 35124101260

SPACER
(Superseded to 35124101261)

$3.49

$

In Stock, Qty 16

0

20

Echo 35124206960

PLATE, EYE
(Superseded to 35124206961)

$2.99

$

Usually ships in 2-4 days

0

21

Echo 90016205045

BOLT 5×45

$1.99

$

Usually ships in 2-4 days

0

22

Echo 35124301260

BRACKET

$3.49

$

Usually ships in 2-4 days

0

23

Echo 30021700610

WASHER 5.5×18×1

$0.99

$

In Stock, Qty 10

0

24

Echo 90016205035

BOLT M5×35

$1.99

$

In Stock, Qty 16

0
