HC-201 - Echo Hedge Trimmer (SN: 09001001 - 09999999) Handle, Ignition Switch, Throttle Cable Parts Diagram

Hedge Trimmer

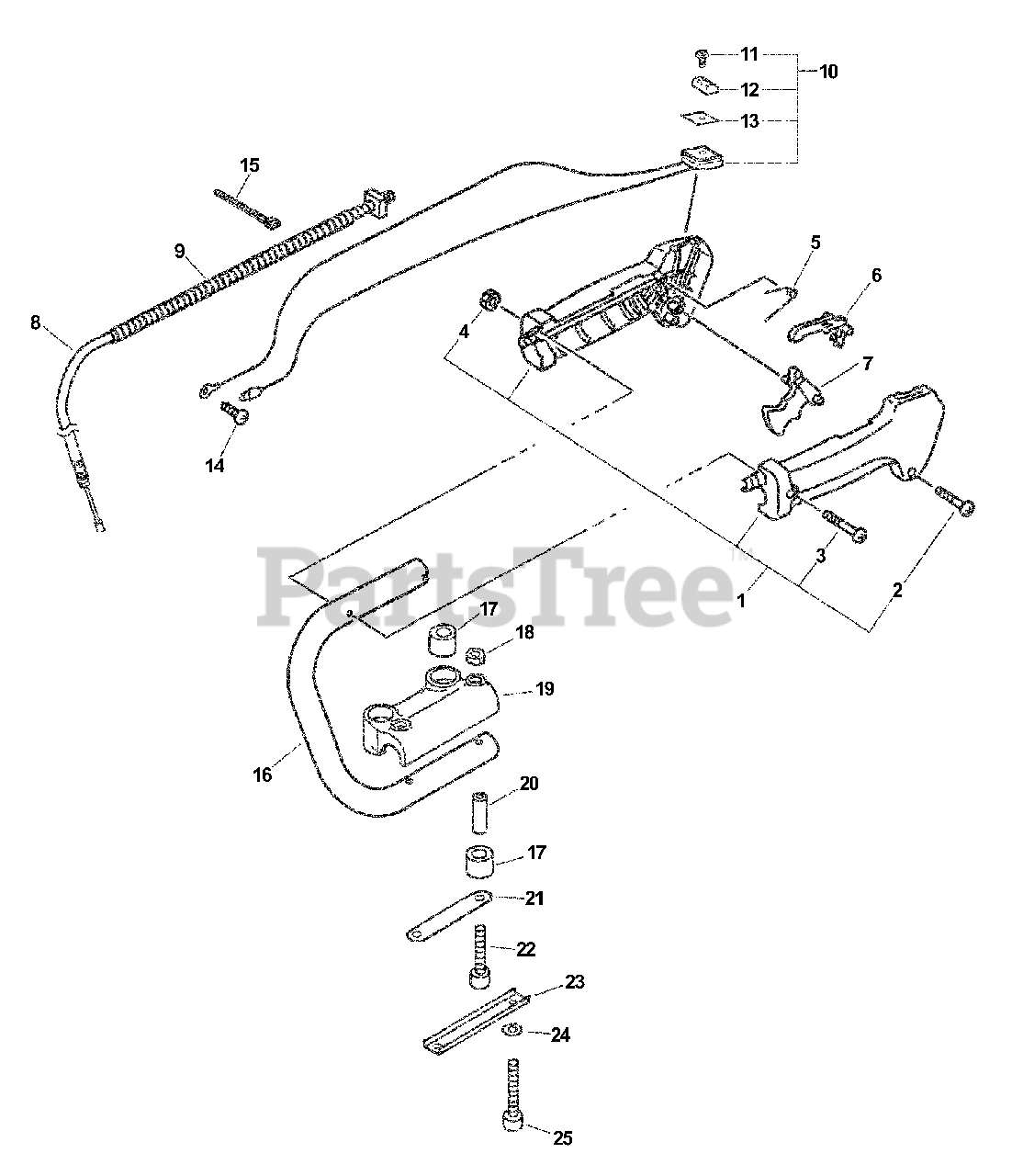

Handle, Ignition Switch, Throttle Cable Parts Diagram

  • Title

1

Echo 35110247530

THROTTLE CONTROL ASSY

Note: INCLUDES ITEMS 2-4

$38.99

$

In Stock, Qty 7

0

2

Echo 90024603025

SCREW - 3X25

$0.99

$

Usually ships in 2-4 days

0

3

Echo 90022005030

SCREW - 5X30

$0.99

$

In Stock, only 1 left!

0

4

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

5

Echo 17801335631

SPRING, LOCKOUT LEVER

$2.49

$

In Stock, Qty 7

0

6

Echo 17801205960

LOCKOUT, THROTTLE

$6.49

$

In Stock, only 2 left!

0

7

Echo 17801005960

TRIGGER, THROTTLE

$5.99

$

In Stock, only 3 left!

0

8

Echo V430000640

CABLE, THROTTLE

$13.99

$

Usually ships in 2-4 days

0

9

Echo 17812705960

TUBE

$2.49

$

Usually ships in 2-4 days

0

10

Echo A440000320

IGNITION SWITCH ASSY
(Superseded to P021017150)

Note: Includes ITEMS 11-13

$10.99

$

Usually ships in 2-4 days

0

11

Echo 9154503010

SCREW - 3X10

$0.99

$

In Stock, Qty 20+

0

12

Echo 16341049231

KNOB, SWITCH - ORANGE

$4.49

$

In Stock, Qty 20+

0

13

Echo 89015712330

COVER, SWITCH - STOP

$3.49

$

In Stock, Qty 10

0

14

Echo 90023805010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

15

Echo 17812110050

TIE, CABLE

$0.99

$

In Stock, Qty 6

0

16

Echo 35120508961

HANDLE - REAR

$48.99

$

Usually ships in 2-4 days

0

17

Echo 35122807760

CUSHION

$3.49

$

In Stock, Qty 20+

0

18

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

19

Echo 35121707761

BRACKET, HANDLE - UPPER

$14.99

$

Usually ships in 2-4 days

0

20

Echo 35124101260

SPACER
(Superseded to 35124101261)

$2.99

$

In Stock, Qty 16

0

21

Echo 35124206961

PLATE

$2.49

$

In Stock, only 2 left!

0

22

Echo 90016205045

SCREW - 5X40

$1.49

$

Usually ships in 2-4 days

0

23

Echo 35124301260

BRACKET, HANDLE - LOWER

$2.99

$

Usually ships in 2-4 days

0

24

Echo 30021700610

WASHER

$0.99

$

In Stock, Qty 9

0

25

Echo 90016205035

SCREW - 5X35

$1.49

$

In Stock, Qty 20+

0
