HC-2020 - Echo Hedge Trimmer (SN: U15015001001 - U15015999999) Fuel System Parts Diagram

Hedge Trimmer

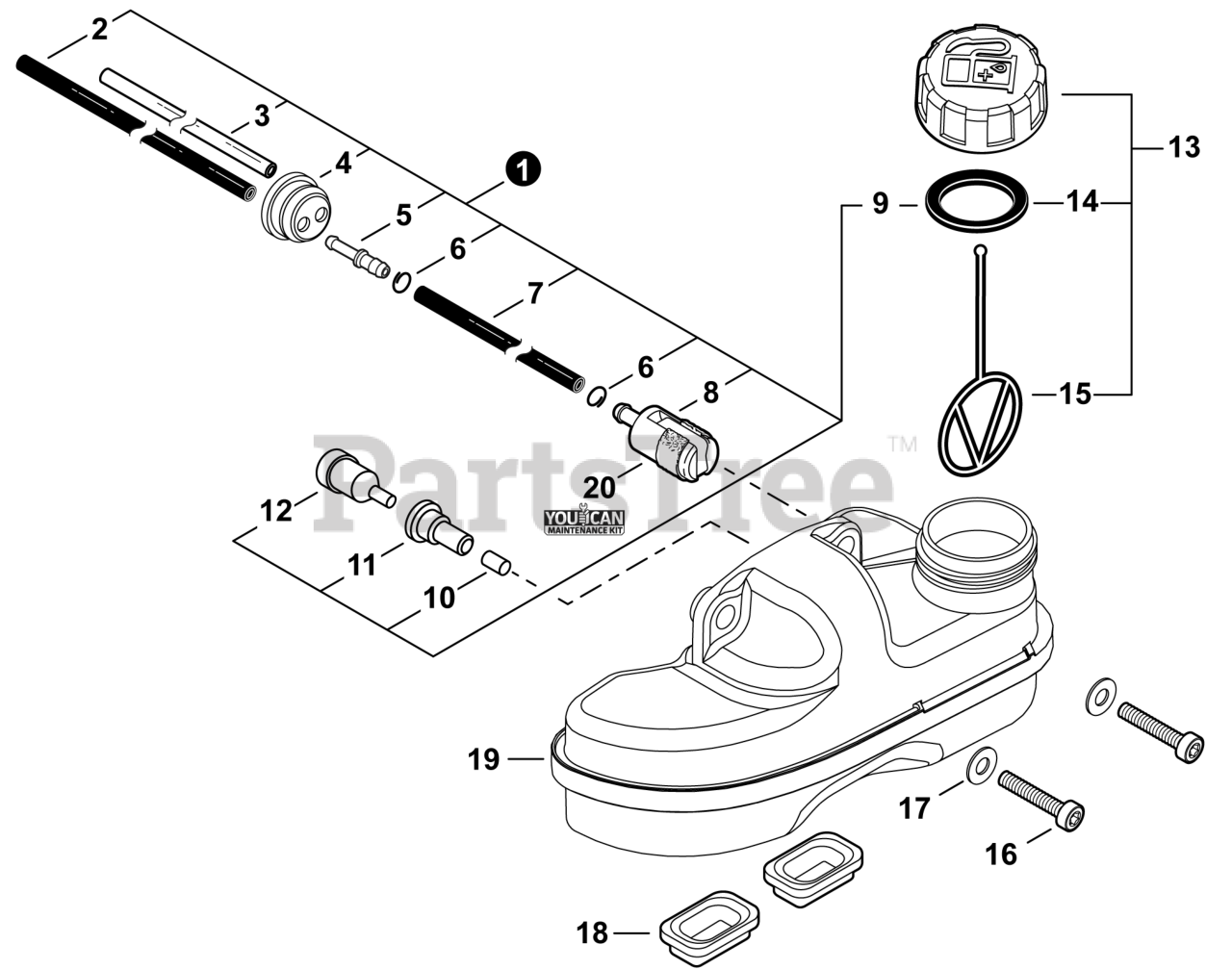

Fuel System Parts Diagram

  • Title

1

Echo 90191Y

FUEL SYSTEM KIT - YOUCANT

Note: Includes items 2-12

$32.99

$

In Stock, only 2 left!

0

2

Echo V471005670

PIPE, FUEL 3x5.5x91 BLACK

$4.49

$

Usually ships in 2-4 days

0

3

Echo 13201056330

PIPE, FUEL RETURN 3x6x90 MM CLEAR

$3.49

$

In Stock, Qty 18

0

4

Echo 13211544331

GROMMET, FUEL

$2.49

$

In Stock, Qty 20+

0

5

Echo V186000520

CONNECTOR, PIPE 5x3.5

$0.99

$

In Stock, Qty 20+

0

6

Echo V490001240

CLIP 6

$0.99

$

In Stock, Qty 20+

0

7

Echo V471003661

PIPE, FUEL 3x5x115 BLACK

$1.99

$

In Stock, only 2 left!

0

8

Echo A369000480

FILTER, FUEL

$6.49

$

In Stock, Qty 20+

0

9

Echo V107000190

GASKET, FUEL CAP

$1.49

$

In Stock, only 3 left!

0

10

Echo 13131435430

FILTER, VENT

$1.49

$

In Stock, Qty 7

0

11

Echo V137000150

GROMMET, FUEL

$1.49

$

Usually ships in 2-4 days

0

12

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

13

Echo P100006051

CAP ASSY, FUEL

Note: Includes items 14-15

$8.99

$

In Stock, only 2 left!

0

14

Echo V107000190

GASKET, FUEL CAP

$1.49

$

In Stock, only 3 left!

0

15

Echo A365000050

CONNECTOR, CAP L= 60 MM

$2.49

$

In Stock, only 2 left!

0

16

Echo V805000160

BOLT, TORX 5x20

$0.99

$

In Stock, Qty 20+

0

17

Echo 90060300005

WASHER 5.5x12x0.8

$0.99

$

In Stock, Qty 20+

0

18

Echo V420004490

CUSHION

$1.49

$

In Stock, only 4 left!

0

19

Echo A350002521

TANK, FUEL

$40.99

$

Usually ships in 2-4 days

0

20

Echo 90152Y
