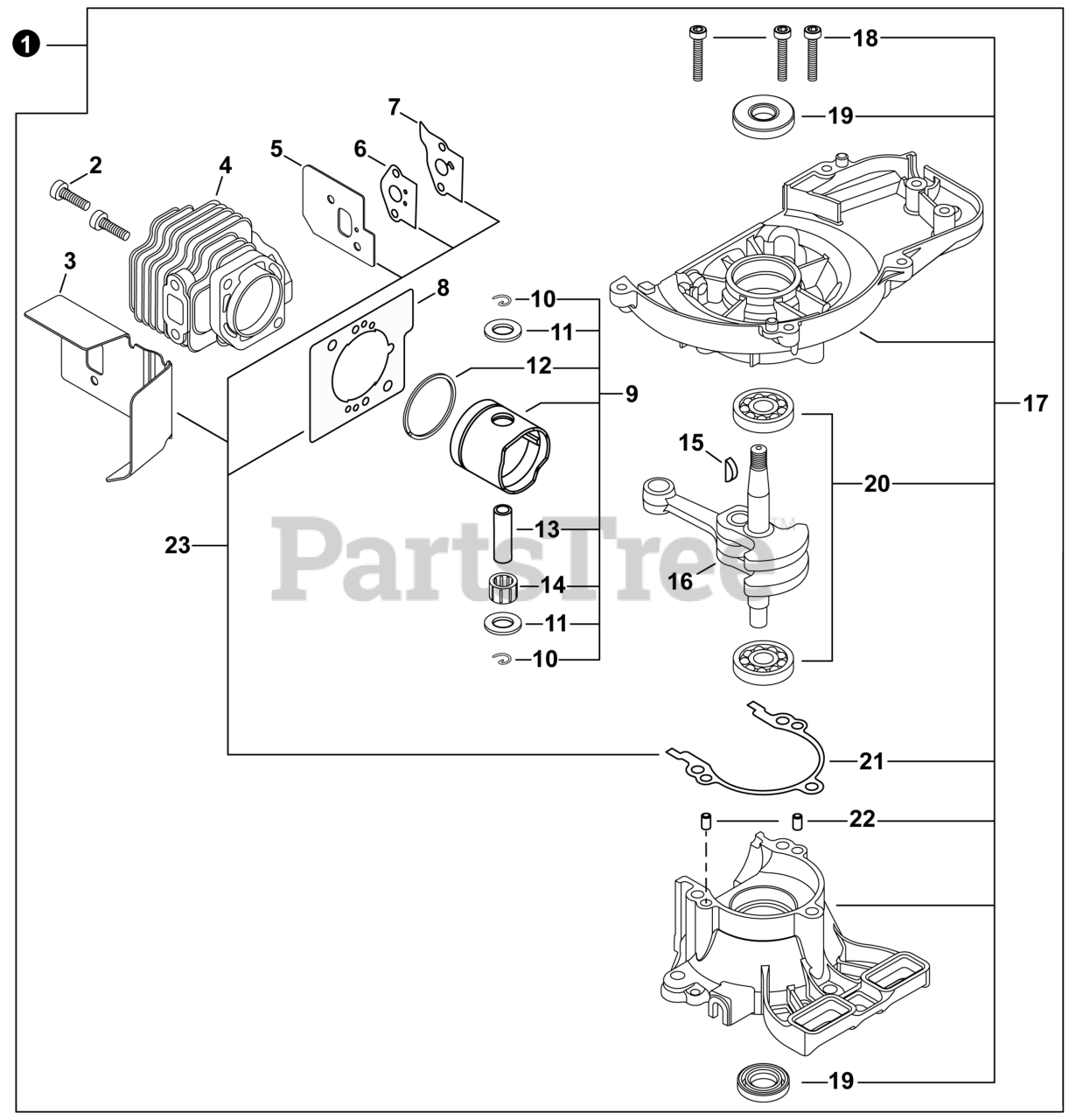

HC-2020 - Echo Hedge Trimmer (SN: U32926001001 - U32926999999) Engine Parts Diagram

Hedge Trimmer

Engine Parts Diagram

  • Title

1

Echo SB1123

SHORT BLOCK

Note: Includes items 2-22

$189.99

$

In Stock, only 1 left!

0

2

Echo V805000210

BOLT, TORX 5×20

$1.99

$

In Stock, Qty 20+

0

3

Echo V104002190

HEAT SHIELD, EXHAUST

Note: Included in Gasket Kit

$10.99

$

Usually ships in 2-4 days

0

4

Echo A130001960

CYLINDER

$137.99

$

In Stock, only 2 left!

0

5

Echo V103002030

GASKET, INTAKE

Note: Included in Gasket Kit

$1.99

$

In Stock, Qty 20+

0

6

Echo V103002020

GASKET, INTAKE

Note: Included in Gasket Kit

$1.49

$

In Stock, only 1 left!

0

7

Echo V103001740

GASKET, INTAKE

Note: Included in Gasket Kit

$6.49

$

In Stock, only 4 left!

0

8

Echo V100000720

GASKET, CYLINDER

Note: Included in Gasket Kit

$4.49

$

In Stock, only 1 left!

0

9

Echo P021007772

PISTON KIT

Note: Includes items 10-14

$52.99

$

Usually ships in 2-4 days

0

10

Echo 10001504630

RING, SNAP

$0.99

$

In Stock, Qty 20+

0

11

Echo 10001408960

WASHER, THRUST

$3.99

$

Usually ships in 2-4 days

0

12

Echo A101000090

RING, PISTON

$

$

Not available

13

Echo 10001311520

PIN, PISTON 8

$8.49

$

In Stock, only 2 left!

0

14

Echo 10011305930

BEARING, NEEDLE

$13.99

$

Usually ships in 2-4 days

0

15

Echo 10014212330

KEY, WOODRUFF

$1.99

$

In Stock, Qty 7

0

16

Echo A011001550

CRANKSHAFT ASSY

$125.99

$

Usually ships in 2-4 days

0

17

Echo P100006080

CRANKCASE SET

Note: Includes items 18-22

$145.99

$

Usually ships in 2-4 days

0

18

Echo V805000220

BOLT, TORX 5×25

$1.99

$

In Stock, Qty 20+

0

19

Echo 10021261830

SEAL, OIL

$9.49

$

Usually ships in 2-4 days

0

20

Echo 90081036000

BEARING, BALL

$8.49

$

In Stock, only 2 left!

0

21

Echo V102000240

GASKET, CRANKCASE

Note: Included in Gasket Kit

$2.49

$

Usually ships in 2-4 days

0

22

Echo 90033040080

PIN, LOCATING 4×8

$1.49

$

In Stock, Qty 13

0

23

Echo P021052750

GASKET KIT

Note: See Maintenance Kits

$10.99

$

In Stock, only 2 left!

0
