HC-210 E - Echo Hedge Trimmer Carburetor Parts Diagram

Hedge Trimmer

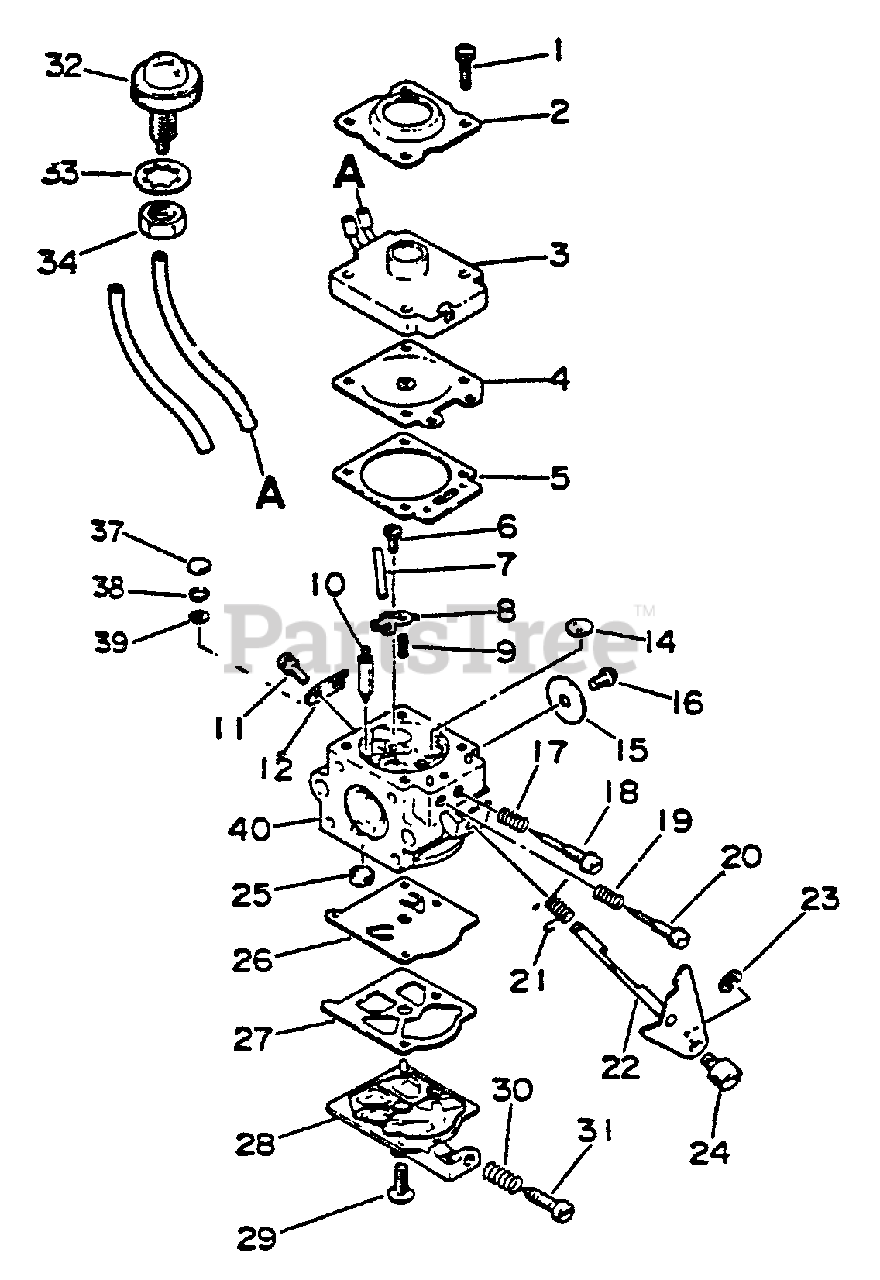

Carburetor Parts Diagram

  • Title

Echo 12300002961

CARBURETOR

$117.99

$

Usually ships in 2-4 days

0

1

SCREW

Note: Included In Kwik Kit P/N 12310002960

$

$

Not available

2

Echo 12314202960

RETAINER, PURGE BULB

$5.49

$

In Stock, only 2 left!

0

3

Echo 12318002960

BASE, PURGE
(Superseded to Discontinued)

$

$

Not available

4

DIAPHRAGM, METERING

Note: Included In Kwik Kit P/N 12310002960 & Diaphragm Kit P/N 12310110530

$

$

Not available

5

GASKET, METERING

Note: Included In Kwik Kit P/N 12310002960 & Diaphragm Kit P/N 12310110530

$

$

Not available

6

SCREW, METERING LEVER PIN

Note: Included In Kwik Kit P/N 12310002960

$

$

Not available

7

PIN, METERING LEVER

Note: Included In Kwik Kit P/N 12310002960

$

$

Not available

8

LEVER, METERING

Note: Included In Kwik Kit P/N 12310002960

$

$

Not available

9

SPRING, METERING LEVER

Note: Included In Kwik Kit P/N 12310002960

$

$

Not available

10

VALVE, INLET NEEDLE

Note: Included In Kwik Kit P/N 12310002960

$

$

Not available

11

Echo 12314403930

SCREW

$0.99

$

In Stock, Qty 9

0

12

Echo 12312703930

CLIP, THROTTLE SHAFT

$1.49

$

Usually ships in 2-4 days

0

14

PLUG, WELCH

Note: Included In Kwik Kit P/N 12310002960

$

$

Not available

15

Echo 12311605230

VALVE, THROTTLE

$2.49

$

In Stock, only 4 left!

0

16

Echo 12311403930

SCREW

$1.49

$

In Stock, Qty 8

0

17

SPRING, IDLE ADJUST

Note: Included In Kwik Kit P/N 12310002960

$

$

Not available

18

Echo 12311824430

NEEDLE, LOW SPEED

$4.99

$

Usually ships in 2-4 days

0

------------------

SPRING, NEEDLE

Note: Included In Kwik Kit P/N 12310002960

$

$

Not available

20

Echo 12312000760

NEEDLE, HIGH SPEED

$5.49

$

Usually ships in 2-4 days

0

21

Echo 12311303930

SPRING, THROTTLE RETURN
(Superseded to 12311309660)

$1.49

$

In Stock, Qty 11

0

22

Echo 12311702960

SHAFT, THROTTLE
(Superseded to Discontinued)

$

$

Not available

23

Echo 12312710630

RING, RETAINING
(Superseded to Discontinued)

$

$

Not available

24

Echo 12317204320

SWIVEL

$2.49

$

Usually ships in 2-4 days

0

25

STRAINER

Note: Included In Kwik Kit P/N 12310002960

$

$

Not available

------------------

DIAPHRAGM, PUMP

Note: Included In Kwik Kit P/N 12310002960 & Diaphragm Kit P/N 12310110530

$

$

Not available

------------------

GASKET, PUMP

Note: Included In Kwik Kit P/N 12310002960 & Diaphragm Kit P/N 12310110530

$

$

Not available

28

Echo 12312402960

COVER, PUMP

$6.99

$

Usually ships in 2-4 days

0

29

Echo 12311003930

SCREW

$0.99

$

Usually ships in 2-4 days

0

30

Echo 12313306320

SPRING

$1.99

$

Usually ships in 2-4 days

0

31

Echo 12313406320

SCREW, IDLE ADJUST

$2.49

$

In Stock, only 4 left!

0

32

Echo 12318102960

BODY ASSY, PURGE

$9.99

$

In Stock, only 2 left!

0

33

Echo 90061000010

WASHER, LOCK
(Superseded to Discontinued)

$

$

Not available

34

Echo 90052300010

NUT

$1.99

$

Usually ships in 2-4 days

0

37

PLUG, WELCH

Note: Included In Kwik Kit P/N 12310002960

$

$

Not available

38

RING

Note: Included in Kwik Kit P/N 12310002960

$

$

Not available

39

STRAINER

Note: Included In Kwik Kit P/N 12310002960

$

$

Not available

40

BODY, CARBURETOR

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

Echo 12310002960

REPAIR KIT, CARBURETOR

$19.99

$

Usually ships in 2-4 days

0

Echo 12310110530

GASKET / DIAPHRAGM KIT

$16.99

$

In Stock, only 2 left!

0
