HC-210 E - Echo Hedge Trimmer Engine,Crankcase,Ignition,Starter,Intake,Exhaust,Air Cleaner,Fuel Sys Parts Diagram

Hedge Trimmer

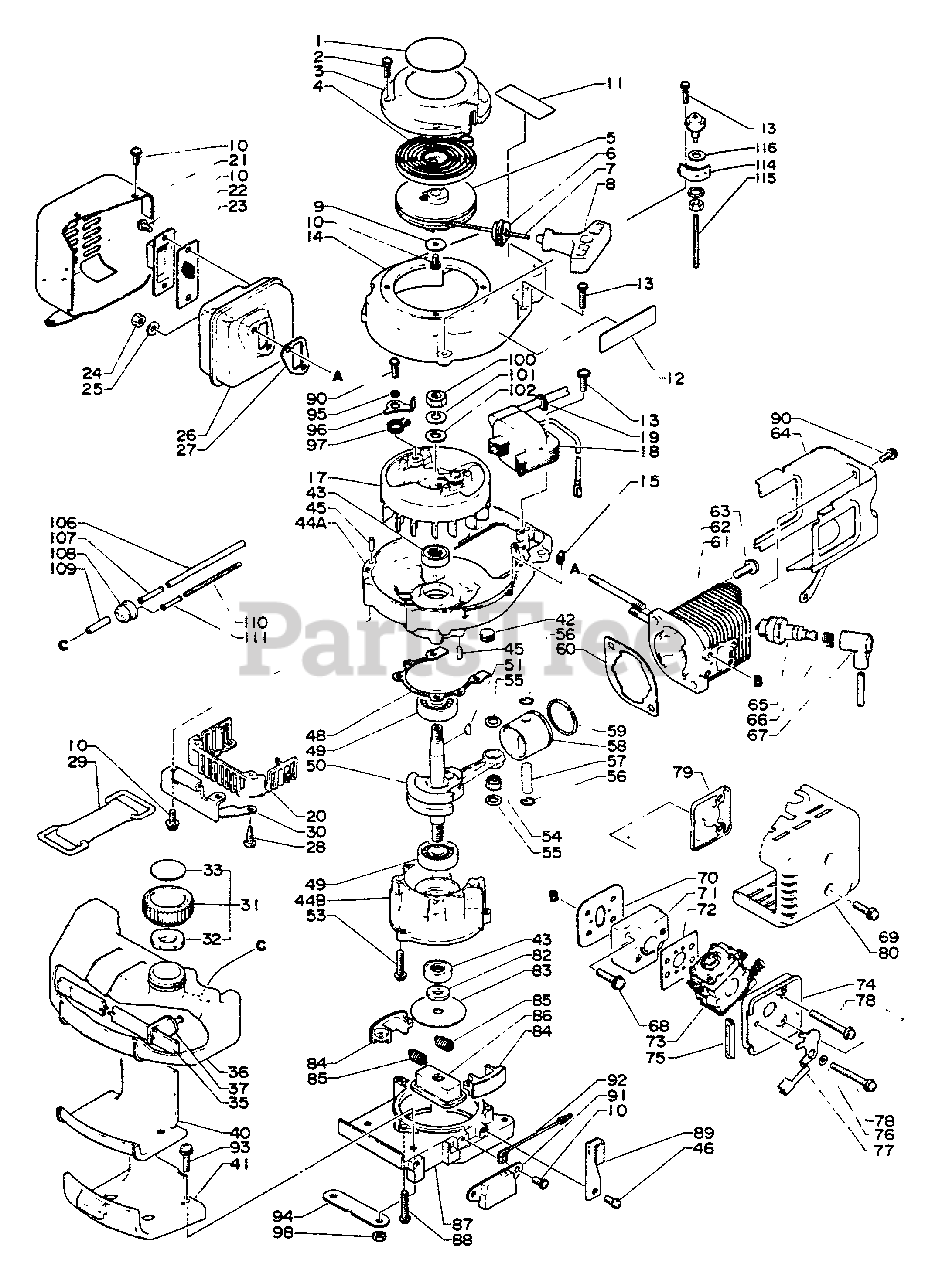

Engine,Crankcase,Ignition,Starter,Intake,Exhaust,Air Cleaner,Fuel Sys Parts Diagram

  • Title

1

Echo 89011206031

LABEL - ECHO
(Superseded to 89011844330)

$0.99

$

In Stock, Qty 6

0

2

Echo 90024204014

SCREW - 4X14

$0.99

$

In Stock, Qty 10

0

Echo 17720001260

STARTER ASSY
(Superseded to 17720001261)

Note: Use Gasket Kit P/N 88900002960

$

$

Not available

3

Echo 17720901260

CASE, STARTER
(Superseded to Discontinued)

$

$

Not available

4

Echo 17722006530

SPRING, REWIND

$15.99

$

In Stock, only 2 left!

0

5

Echo 17721506530

REEL, ROPE
(Superseded to Discontinued)

$

$

Not available

6

Echo 17722701260

GUIDE, ROPE

$3.99

$

Usually ships in 2-4 days

0

7

Echo 17722606530

ROPE, STARTER - 3X850

Note: RePower BULK OPTION: 99944445000

$6.99

$

In Stock, only 2 left!

0

8

Echo 17722806530

GRIP, STARTER

$5.49

$

In Stock, Qty 8

0

9

Echo 17721404630

WASHER

$0.99

$

In Stock, Qty 6

0

10

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

10

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

11

Echo 89011502960

LABEL - MODEL
(Superseded to Discontinued)

$

$

Not available

12

Echo 89016003930

LABEL - CAUTION
(Superseded to 89016002960)

$

$

Not available

13

Echo 90024204020

SCREW - 4X20

$0.99

$

In Stock, Qty 20+

0

14

Echo 10151102061

CASE, FAN
(Superseded to 10150202060)

$48.99

$

Usually ships in 2-4 days

0

15

Echo 15611407320

GROMMET

$0.99

$

Usually ships in 2-4 days

0

17

Echo 15280102060

FLYWHEEL
(Superseded to Discontinued)

$

$

Not available

18

Echo 15262602060

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

19

Echo 15011009130

BUSHING

$0.99

$

Usually ships in 2-4 days

0

20

Echo 10061606320

SEAL, DUST
(Superseded to Discontinued)

$

$

Not available

Echo 14580301260

MUFFLER ASSY
(Superseded to 14580301261)

$46.99

$

Usually ships in 2-4 days

0

10

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

21

Echo 14562101260

COVER, EXHAUST
(Superseded to Discontinued)

$

$

Not available

21

Echo 14590006520

MUFFLER ASSY
(Superseded to Discontinued)

$

$

Not available

10

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

22

Echo 14580906520

GUIDE, EXHAUST
(Superseded to 14580928430)

$

$

Not available

23

Echo 14586206520

SCREEN, SPARK ARRESTOR

$1.99

$

Usually ships in 2-4 days

0

26

Echo 14580606520

MUFFLER
(Superseded to Discontinued)

$

$

Not available

27

Echo 14551006520

GASKET, EXHAUST
(Superseded to 14551009030)

$

$

Not available

24

Echo 43302000830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 20+

0

25

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

28

Echo 90024504014

SCREW - 4X14 -- TAPPING

$0.99

$

Usually ships in 2-4 days

0

29

Echo 13191702960

STRAP
(Superseded to Discontinued)

$

$

Not available

30

Echo 13191002960

BRACKET, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

31

Echo 13160022130

CAP ASSY
(Superseded to Discontinued)

$

$

Not available

32

Echo 13131404930

VENT
(Superseded to Discontinued)

$

$

Not available

33

Echo 89015415130

LABEL - FUEL MIX

$1.49

$

In Stock, only 1 left!

0

37

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$6.49

$

In Stock, Qty 20+

0

35

Echo 13121602960

SEAL, FELT
(Superseded to Discontinued)

$

$

Not available

36

Echo 13101002960

TANK, FUEL
(Superseded to Discontinued)

$

$

Not available

40

Echo 13192002960

CUSHION
(Superseded to Discontinued)

$

$

Not available

41

Echo 13191802960

BRACKET, FUEL TANK
(Superseded to 13191802961)

$

$

Not available

42

Echo 10022307320

PLUG
(Superseded to Discontinued)

$

$

Not available

43

Echo 10021305530

SEAL, OIL

$6.99

$

In Stock, Qty 20+

0

44

Echo 10020002060

CRANKCASE KIT
(Superseded to Discontinued)

$

$

Not available

44A

Echo 10020002060

CRANKCASE KIT
(Superseded to Discontinued)

Note: See Ref No. 44, Crankcase set, P/N 10020002060

$

$

Not available

44B

Echo 10020002060

CRANKCASE KIT
(Superseded to Discontinued)

Note: See Ref No. 44, Crankcase set, P/N 10020002060

$

$

Not available

45

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

46

Echo 90024205014

SCREW - 5X14

$0.99

$

In Stock, Qty 20+

0

48

------------------

GASKET, CRANKCASE

Note: Use Gasket Kit P/N 88900002960

$

$

Not available

49

Echo 9403536201

BEARING, BALL - 6201

$8.99

$

In Stock, Qty 14

0

50

Echo 10010002060

CRANKSHAFT ASSY
(Superseded to Discontinued)

$

$

Not available

51

Echo 10014200330

KEY

$1.49

$

Usually ships in 2-4 days

0

53

Echo 90024205030

SCREW - 5X30

$0.99

$

In Stock, only 2 left!

0

54

Echo 10011305930

BEARING, NEEDLE - 8

$12.99

$

Usually ships in 2-4 days

0

55

Echo 10001406520

SPACER, PISTON

$3.49

$

Usually ships in 2-4 days

0

56

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

57

Echo 10001310210

PIN, PISTON

$7.49

$

Usually ships in 2-4 days

0

58

Echo 10001006520

PISTON
(Superseded to 10001006521)

$

$

Not available

59

Echo 10001105330

RING, PISTON

$9.49

$

In Stock, Qty 20+

0

60

Echo 10101004920

GASKET, CYLINDER
(Superseded to 10101004921)

Note: Included In GASKET KIT

$

$

Not available

61

Echo 10101109320

CYLINDER
(Superseded to Discontinued)

$

$

Not available

62

Echo 10101400560

STUD

$2.49

$

Usually ships in 2-4 days

0

63

Echo 90024206020

SCREW - 6X20

$0.99

$

In Stock, Qty 6

0

64

Echo 10151402960

SHIELD, CYLINDER
(Superseded to Discontinued)

$

$

Not available

65

Echo 15901000330

SPARK PLUG -- BM-6A

$

$

Not available

66

Echo 15901100510

TERMINAL, SPARK PLUG CAP
(Superseded to 15901103432)

$1.49

$

In Stock, Qty 20+

0

67

Echo 15901201620

CAP, SPARK PLUG

$1.99

$

In Stock, Qty 8

0

68

Echo 90024305020

SCREW - 5X20

$0.99

$

Usually ships in 2-4 days

0

69

Echo 90024204018

SCREW - 4X18

$0.99

$

In Stock, Qty 7

0

70

Echo 13001009220

GASKET, INTAKE
(Superseded to 13001009221)

$

$

Not available

71

Echo 13000709320

INSULATOR, INTAKE
(Superseded to Discontinued)

$

$

Not available

72

Echo 13001609220

GASKET, INTAKE
(Superseded to 13001609221)

$

$

Not available

73

Echo 12300002961

CARBURETOR WA-148A

$108.99

$

Usually ships in 2-4 days

0

74

Echo 13030102960

CASE, AIR FILTER

$7.49

$

Usually ships in 2-4 days

0

75

Echo 17881021630

GROMMET

$1.49

$

Usually ships in 2-4 days

0

76

Echo 17851600830

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

77

Echo 17851509220

SHUTTER, CHOKE

$3.49

$

Usually ships in 2-4 days

0

78

Echo 90024205040

SCREW - 5X40

$0.99

$

In Stock, Qty 15

0

79

Echo 13031006530

FILTER, AIR
(Superseded to Discontinued)

$

$

Not available

80

Echo 13030809220

COVER, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

82

Echo 10013206530

WASHER

$2.49

$

Usually ships in 2-4 days

0

83

Echo 17501904920

PLATE, CLUTCH
(Superseded to Discontinued)

$

$

Not available

84

Echo 17500905130

SHOE, CLUTCH
(Superseded to 17500905131)

$23.99

$

In Stock, only 2 left!

0

85

Echo 17501805130

SPRING, CLUTCH

$1.99

$

In Stock, only 2 left!

0

86

Echo 17501607330

HUB, CLUTCH
(Superseded to Discontinued)

$

$

Not available

87

Echo 17505502960

CASE, CLUTCH
(Superseded to 17505502961)

$

$

Not available

88

Echo 90016204025

SCREW - 4X25

$1.49

$

In Stock, Qty 7

0

89

Echo 15911202960

CLIP
(Superseded to Discontinued)

$

$

Not available

90

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

91

Echo 15260102060

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

92

Echo 15263402060

LEAD
(Superseded to Discontinued)

$

$

Not available

93

Echo 90024205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

94

Echo 13191102960

WASHER
(Superseded to Discontinued)

$

$

Not available

95

Echo 17724704630

SPACER

$2.49

$

In Stock, only 3 left!

0

96

Echo 17721806530

PAWL, STARTER
(Superseded to Discontinued)

$

$

Not available

97

Echo 17723406530

SPRING, RETURN

$1.49

$

In Stock, Qty 6

0

98

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

100

Echo 90051000008

NUT - 8 -- LEFT HAND

$1.49

$

Usually ships in 2-4 days

0

101

Echo 90060500008

LOCKWASHER - 8

$0.99

$

In Stock, Qty 20+

0

102

Echo 90060000008

WASHER - 8

$0.99

$

In Stock, Qty 7

0

106

Echo 13201202960

PIPE - 3X6X120 -- BLACK
(Superseded to 13201202961)

Note: RePower BULK OPTION: 90015

$4.49

$

Usually ships in 2-4 days

0

107

Echo 13202302960

CONNECTOR, PIPE

$1.49

$

Usually ships in 2-4 days

0

108

Echo 13211502960

GROMMET
(Superseded to 13211502961)

$2.99

$

Usually ships in 2-4 days

0

109

Echo 13201002961

PIPE - FUEL
(Superseded to Discontinued)

$

$

Not available

110

Echo 13271702960

PIPE - FUEL

$1.99

$

Usually ships in 2-4 days

0

111

Echo 13202102960

CONNECTOR, PIPE

$2.99

$

Usually ships in 2-4 days

0

114

Echo 13291002960

BRACKET

$4.49

$

Usually ships in 2-4 days

0

115

Echo 13271602960

PIPE, FUEL PUMP
(Superseded to Discontinued)

$

$

Not available

116

Echo 90060000010

WASHER - 10

$0.99

$

In Stock, Qty 17

0

117

Echo 13201302361

RETAINER, PIPE
(Superseded to 13011100530)

$0.99

$

In Stock, Qty 20+

0

Echo 88900002960

GASKET KIT
(Superseded to 88900002961)

$7.49

$

Usually ships in 2-4 days

0
