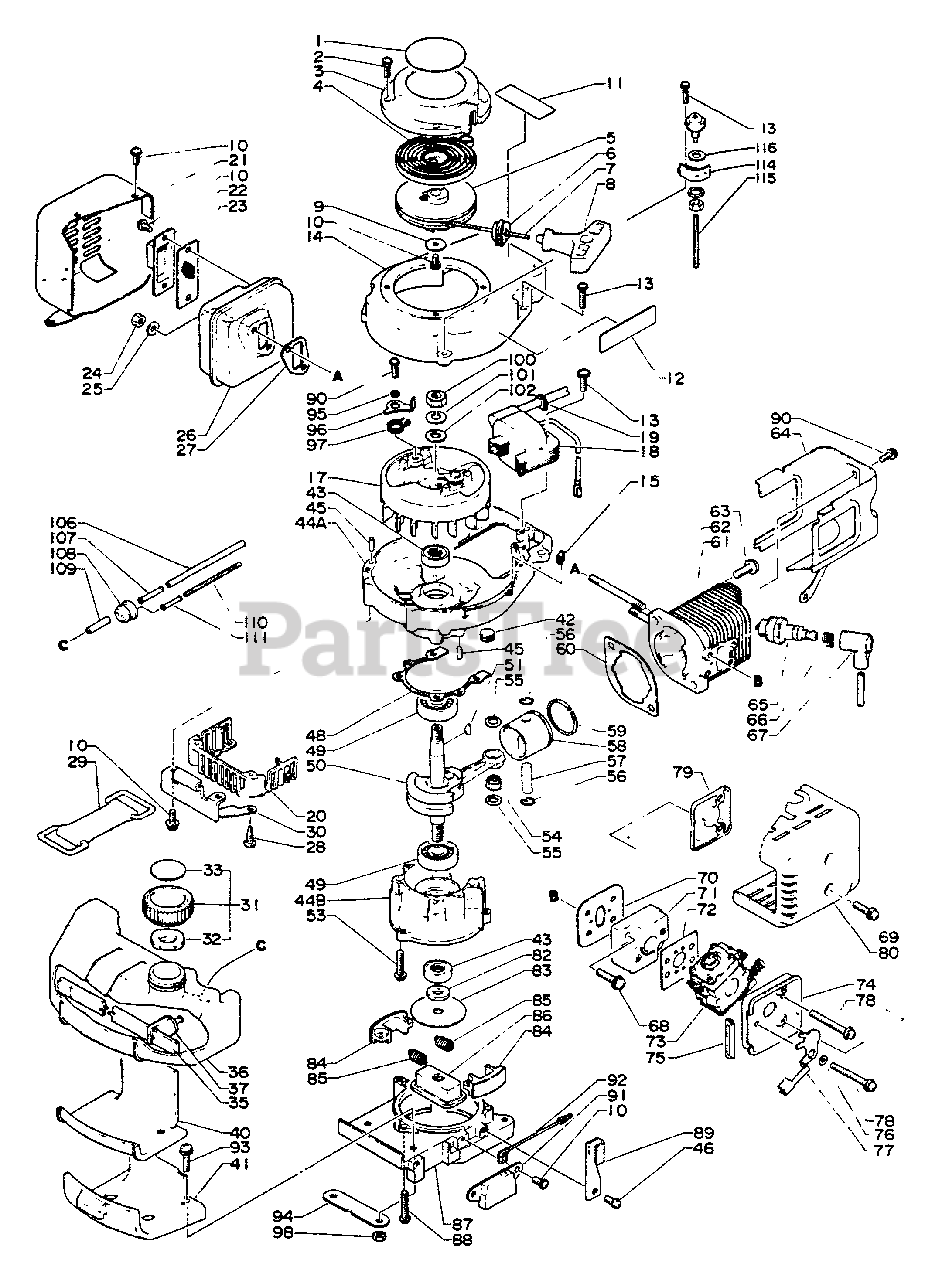

HC-210 E - Echo Hedge Trimmer Engine,Crankcase,Ignition,Starter,Intake,Exhaust,Air Cleaner,Fuel Sys Parts Diagram

Hedge Trimmer

Engine,Crankcase,Ignition,Starter,Intake,Exhaust,Air Cleaner,Fuel Sys Parts Diagram

  • Title

1

Echo 89011206031

LABEL - ECHO
(Superseded to 89011844330)

$0.99

$

In Stock, Qty 5

0

2

Echo 900242-04014

SCREW 4×14

$0.99

$

In Stock, Qty 5

0

Echo 17720001260

STARTER ASSY
(Superseded to 17720001261)

Note: Use Gasket Kit P/N 88900002960

$

$

Not available

3

Echo 17720901260

CASE, STARTER
(Superseded to Discontinued)

$

$

Not available

4

Echo 17722006530

SPRING, RECOIL

$16.99

$

In Stock, only 2 left!

0

5

Echo 17721506530

REEL, ROPE
(Superseded to Discontinued)

$

$

Not available

6

Echo 17722701260

GUIDE, ROPE

$4.49

$

Usually ships in 2-4 days

0

7

Echo 17722606530

ROPE, STARTER 3.0×850

Note: RePower BULK OPTION: 99944445000

$7.49

$

In Stock, only 3 left!

0

8

Echo 177228-06530

GRIP, STARTER

$5.99

$

In Stock, Qty 5

0

9

Echo 17721404630

WASHER 4.1×15.5×1T

$0.99

$

In Stock, Qty 5

0

10

Echo 900242-04010

SCREW 4×10

$0.99

$

In Stock, Qty 20+

0

10

Echo 900242-04010

SCREW 4×10

$0.99

$

In Stock, Qty 20+

0

11

Echo 89011502960

LABEL
(Superseded to Discontinued)

$

$

Not available

12

Echo 89016003930

LABEL - CAUTION
(Superseded to 89016002960)

$

$

Not available

13

Echo 900242-04020

SCREW 4×20

$0.99

$

In Stock, Qty 16

0

14

Echo 10151102061

CASE, FAN
(Superseded to 10150202060)

$48.99

$

Usually ships in 2-4 days

0

15

Echo 15611407320

GROMMET

$0.99

$

Usually ships in 2-4 days

0

17

Echo 15280102060

FLYWHEEL
(Superseded to Discontinued)

$

$

Not available

18

Echo 15262602060

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

19

Echo 15011009130

GROMMET

$0.99

$

Usually ships in 2-4 days

0

20

Echo 10061606320

SEAL, DUST
(Superseded to Discontinued)

$

$

Not available

Echo 14580301260

MUFFLER ASSY
(Superseded to 14580301261)

$49.99

$

Usually ships in 2-4 days

0

10

Echo 900242-04010

SCREW 4×10

$0.99

$

In Stock, Qty 20+

0

21

Echo 14562101260

COVER, MUFFLER
(Superseded to Discontinued)

$

$

Not available

21

Echo 14590006520

MUFFLER
(Superseded to Discontinued)

$

$

Not available

10

Echo 900242-04010

SCREW 4×10

$0.99

$

In Stock, Qty 20+

0

22

Echo 14580906520

SCREEN HOLDER
(Superseded to 14580928430)

$

$

Not available

23

Echo 14586206520

SCREEN, SPARK ARRESTER

$2.49

$

Usually ships in 2-4 days

0

26

Echo 14580606520

MUFFLER
(Superseded to Discontinued)

$

$

Not available

27

Echo 14551006520

GASKET, EXHAUST
(Superseded to 14551009030)

$

$

Not available

24

Echo 433020-00830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 14

0

25

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

28

Echo 90024504014

SCREW 4×14

$0.99

$

Usually ships in 2-4 days

0

29

Echo 13191702960

STRAP
(Superseded to Discontinued)

$

$

Not available

30

Echo 13191002960

BRACKET, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

31

Echo 13160022130

CAP ASSY
(Superseded to Discontinued)

$

$

Not available

32

Echo 13131404930

VALVE, CHECK
(Superseded to Discontinued)

$

$

Not available

33

Echo 89015415130

LABEL - FUEL MIX

$1.49

$

In Stock, only 1 left!

0

37

Echo 131205-07320

FILTER, FUEL

$6.49

$

In Stock, Qty 20+

0

35

Echo 13121602960

SEAL, FELT
(Superseded to Discontinued)

$

$

Not available

36

Echo 13101002960

TANK, FUEL
(Superseded to Discontinued)

$

$

Not available

40

Echo 13192002960

CUSHION, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

41

Echo 13191802960

BRACKET, FUEL TANK
(Superseded to 13191802961)

$

$

Not available

42

Echo 10022307320

PLUG
(Superseded to Discontinued)

$

$

Not available

43

Echo 10021305530

SEAL, OIL 12

$7.99

$

In Stock, Qty 11

0

44

Echo 10020002060

CRANKCASE KIT
(Superseded to Discontinued)

$

$

Not available

44A

Echo 10020002060

CRANKCASE KIT
(Superseded to Discontinued)

Note: See Ref No. 44, Crankcase set, P/N 10020002060

$

$

Not available

44B

Echo 10020002060

CRANKCASE KIT
(Superseded to Discontinued)

Note: See Ref No. 44, Crankcase set, P/N 10020002060

$

$

Not available

45

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, only 4 left!

0

46

Echo 900242-05014

SCREW 5×14

$0.99

$

In Stock, Qty 20+

0

48

GASKET, CRANKCASE

Note: Use Gasket Kit P/N 88900002960

$

$

Not available

49

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

50

Echo 10010002060

CRANKSHAFT ASSY
(Superseded to Discontinued)

$

$

Not available

51

Echo 10014200330

KEY

$1.99

$

Usually ships in 2-4 days

0

53

Echo 90024205030

SCREW 5×30

$0.99

$

In Stock, only 2 left!

0

54

Echo 10011305930

BEARING, NEEDLE

$13.99

$

Usually ships in 2-4 days

0

55

Echo 10001406520

WASHER, THRUST

$3.99

$

Usually ships in 2-4 days

0

56

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

57

Echo 10001310210

PIN, PISTON

$7.99

$

Usually ships in 2-4 days

0

58

Echo 10001006520

PISTON
(Superseded to 10001006521)

$

$

Not available

59

Echo 100011-05330

RING, PISTON
(Superseded to 10001105330)

$10.99

$

In Stock, Qty 8

0

60

Echo 10101004920

GASKET, CYLINDER
(Superseded to 10101004921)

Note: Included In GASKET KIT

$

$

Not available

61

Echo 10101109320

CYLINDER
(Superseded to Discontinued)

$

$

Not available

62

Echo 10101400560

BOLT, STUD

$2.99

$

Usually ships in 2-4 days

0

63

Echo 90024206020

SCREW 6×20

$0.99

$

In Stock, Qty 6

0

64

Echo 10151402960

SHIELD, CYLINDER
(Superseded to Discontinued)

$

$

Not available

65

Echo 159010-00330

SPARK PLUG - BM6A
(Superseded to Discontinued)

$

$

Not available

66

Echo 15901100510

TERMINAL, SPARK PLUG CAP
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

67

Echo 159012-01620

CAP, SPARK PLUG

$1.99

$

In Stock, Qty 11

0

68

Echo 90024305020

SCREW 5×20

$0.99

$

Usually ships in 2-4 days

0

69

Echo 90024204018

SCREW 4×18

$0.99

$

In Stock, Qty 7

0

70

Echo 13001009220

GASKET, INTAKE
(Superseded to 13001009221)

$

$

Not available

71

Echo 13000709320

INSULATOR
(Superseded to Discontinued)

$

$

Not available

72

Echo 13001609220

GASKET, INTAKE
(Superseded to 13001609221)

$

$

Not available

73

Echo 12300002961

CARBURETOR

$117.99

$

Usually ships in 2-4 days

0

74

Echo 13030102960

CASE, AIR FILTER

$7.99

$

Usually ships in 2-4 days

0

75

Echo 17881021630

GROMMET

$1.99

$

Usually ships in 2-4 days

0

76

Echo 178516-00830

WASHER 5.2×8×0.8T

$0.99

$

In Stock, Qty 20+

0

77

Echo 17851509220

SHUTTER, CHOKE

$3.49

$

Usually ships in 2-4 days

0

78

Echo 90024205040

SCREW 5×40

$0.99

$

In Stock, Qty 14

0

79

Echo 13031006530

FILTER, AIR
(Superseded to Discontinued)

$

$

Not available

80

Echo 13030809220

COVER, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

82

Echo 10013206530

WASHER

$2.99

$

Usually ships in 2-4 days

0

83

Echo 17501904920

PLATE, CLUTCH
(Superseded to Discontinued)

$

$

Not available

84

Echo 17500905130

SHOE, CLUTCH
(Superseded to 17500905131)

$25.99

$

In Stock, only 2 left!

0

85

Echo 17501805130

SPRING, CLUTCH

$1.99

$

In Stock, only 2 left!

0

86

Echo 17501607330

HUB, CLUTCH
(Superseded to Discontinued)

$

$

Not available

87

Echo 17505502960

HOUSING, CLUTCH
(Superseded to 17505502961)

$

$

Not available

88

Echo 90016204025

BOLT 4×25

$1.49

$

In Stock, Qty 7

0

89

Echo 15911202960

CLIP
(Superseded to Discontinued)

$

$

Not available

90

Echo 900242-05010

SCREW 5×10

$0.99

$

In Stock, Qty 20+

0

91

Echo 15260102060

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

92

Echo 15263402060

LEAD
(Superseded to Discontinued)

$

$

Not available

93

Echo 900242-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

94

Echo 13191102960

WASHER
(Superseded to Discontinued)

$

$

Not available

95

Echo 17724704630

SPACER 5.2×8×2.1

$2.49

$

In Stock, only 2 left!

0

96

Echo 17721806530

RATCHET
(Superseded to Discontinued)

$

$

Not available

97

Echo 17723406530

SPRING

$1.49

$

In Stock, Qty 6

0

98

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

100

Echo 90051000008

NUT

$1.49

$

Usually ships in 2-4 days

0

101

Echo 90060500008

WASHER, SPRING 8

$0.99

$

In Stock, Qty 20+

0

102

Echo 90060000008

WASHER 8.5×16×1.2

$0.99

$

Usually ships in 2-4 days

0

106

Echo 13201202960

PIPE, FUEL 3×6×120 BLACK
(Superseded to 13201202961)

Note: RePower BULK OPTION: 90015

$4.49

$

Usually ships in 2-4 days

0

107

Echo 13202302960

CONNECTOR, PIPE

$1.49

$

Usually ships in 2-4 days

0

108

Echo 13211502960

GROMMET
(Superseded to 13211502961)

$3.49

$

Usually ships in 2-4 days

0

109

Echo 13201002961

PIPE, FUEL
(Superseded to Discontinued)

$

$

Not available

110

Echo 13271702960

PIPE, FUEL

$2.49

$

Usually ships in 2-4 days

0

111

Echo 13202102960

CONNECTOR, PIPE

$3.49

$

Usually ships in 2-4 days

0

114

Echo 13291002960

BRACKET, PUMP

$4.99

$

Usually ships in 2-4 days

0

115

Echo 13271602960

PIPE, FUEL PUMP
(Superseded to Discontinued)

$

$

Not available

116

Echo 900600-00010

WASHER 10.5×18×1.6

$0.99

$

In Stock, Qty 9

0

117

Echo 13201302361

RETAINER, PIPE
(Superseded to 13011100530)

$0.99

$

In Stock, Qty 20+

0

Echo 88900002960

GASKET KIT
(Superseded to 88900002961)

$

$

Not available
