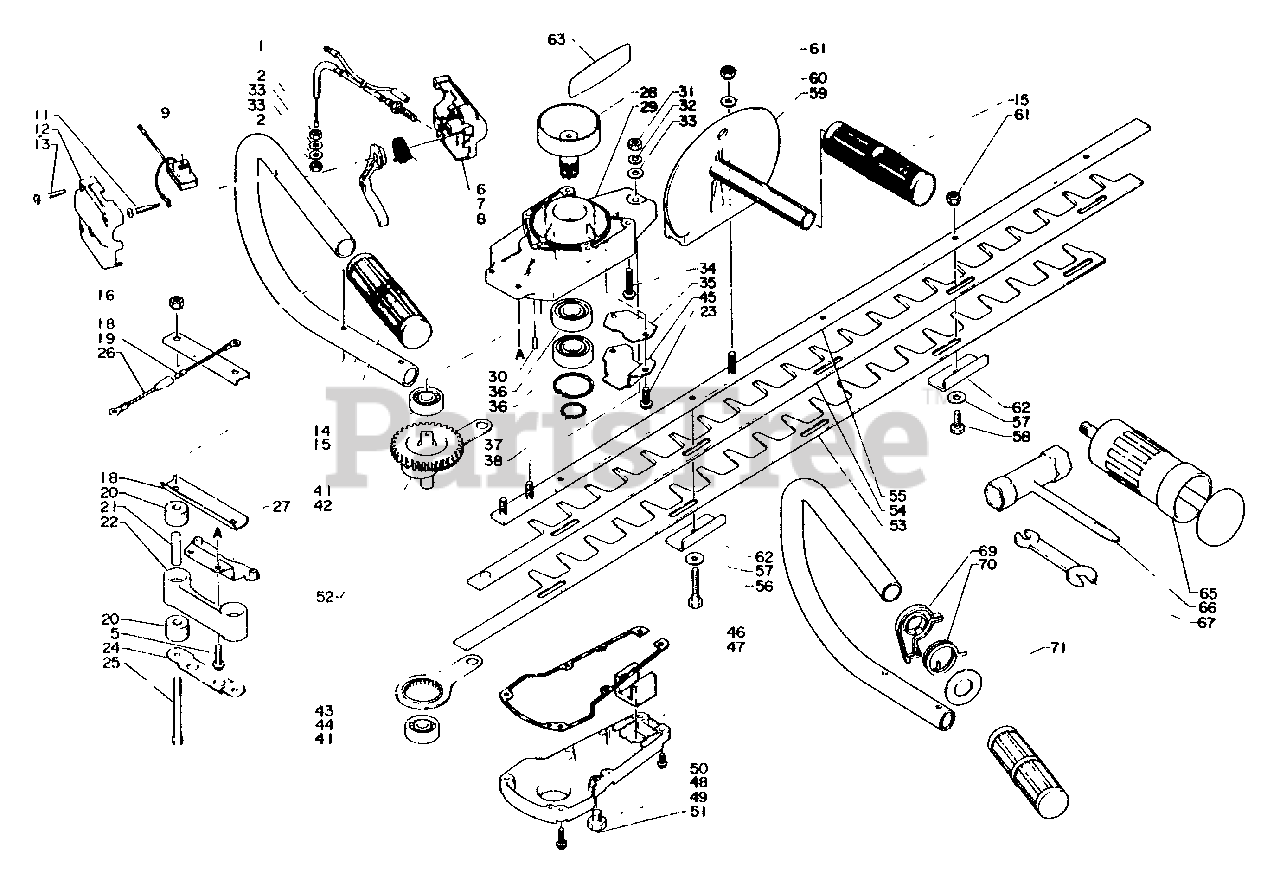

HC-210 E - Echo Hedge Trimmer Gear Case, Handles, Blades, Throttle, Stop Switch, Tools Parts Diagram

Hedge Trimmer

Gear Case, Handles, Blades, Throttle, Stop Switch, Tools Parts Diagram

  • Title

1

Echo 17800102960

CABLE, THROTTLE

$25.99

$

Usually ships in 2-4 days

0

2

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 12

0

5

Echo 900242-05016

SCREW 5×16

$0.99

$

In Stock, only 4 left!

0

6

Echo 17802401260

BRACKET, THROTTLE CONTROL - RIGHT
(Superseded to 17802401261)

$4.99

$

In Stock, only 2 left!

0

7

Echo 17804301260

SPRING, THROTTLE RETURN

$1.49

$

In Stock, only 3 left!

0

8

Echo 17801001260

TRIGGER, THROTTLE
(Superseded to 17801007660)

$5.49

$

In Stock, only 2 left!

0

9

Echo 16340007930

IGNITION SWITCH ASSY

$9.99

$

Usually ships in 2-4 days

0

11

Echo 90024504030

SCREW 4×30

$0.99

$

In Stock, only 4 left!

0

12

Echo 17805201260

BRACKET, THROTTLE CONTROL - LEFT
(Superseded to 17805201261)

$4.99

$

In Stock, only 2 left!

0

13

Echo 90024504025

SCREW 4×25

$0.99

$

Usually ships in 2-4 days

0

14

Echo 35120502061

HANDLE - REAR
(Superseded to Discontinued)

$

$

Not available

15

Echo 35101201260

GRIP

$8.99

$

Usually ships in 2-4 days

0

16

Echo 433020-00830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 14

0

18

Echo 35124301260

BRACKET

$3.49

$

Usually ships in 2-4 days

0

19

Echo 16201001260

LEAD - GROUND

$2.49

$

Usually ships in 2-4 days

0

20

Echo 35122801260

CUSHION

$4.99

$

Usually ships in 2-4 days

0

21

Echo 35124101260

SPACER
(Superseded to 35124101261)

$3.49

$

In Stock, Qty 16

0

22

Echo 35121701260

BRACKET, HANDLE
(Superseded to Discontinued)

$

$

Not available

23

Echo 90016205014

BOLT 5×14

$1.49

$

In Stock, Qty 7

0

24

Echo 35124201261

PLATE

$3.49

$

Usually ships in 2-4 days

0

25

Echo 90010505060

BOLT 5×60

$2.49

$

In Stock, only 3 left!

0

26

Echo 16201401260

LEAD - GROUND
(Superseded to Discontinued)

$

$

Not available

27

Echo 61043801260

PLATE

$5.99

$

Usually ships in 2-4 days

0

28

Echo 17500501261

DRUM, CLUTCH
(Superseded to 17500301261)

$98.99

$

Usually ships in 2-4 days

0

29

Echo 61041002060

CASE, GEAR
(Superseded to 61040602060)

$130.99

$

Usually ships in 2-4 days

0

30

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, only 4 left!

0

31

Echo 900500-00006

NUT, HEX M6

$0.99

$

In Stock, Qty 20+

0

32

Echo 90060500006

WASHER, SPRING 6

$0.99

$

In Stock, Qty 15

0

33

Echo 90060000006

WASHER 6.5×11.5×0.8

$0.99

$

In Stock, Qty 20+

0

34

Echo 90024205030

SCREW 5×30

$0.99

$

In Stock, only 2 left!

0

35

Echo 61044001260

GUIDE
(Superseded to Discontinued)

$

$

Not available

36

Echo 90080206003

BEARING, BALL 6003

$20.99

$

Usually ships in 2-4 days

0

37

Echo 90070200035

RING, SNAP 35

$2.49

$

In Stock, Qty 9

0

38

Echo 90070100016

RING, RETAINING - 16

$1.49

$

Usually ships in 2-4 days

0

41

Echo 90081006200

BEARING, BALL 6200

$12.99

$

In Stock, only 1 left!

0

45

Echo 61044102060

GUIDE
(Superseded to Discontinued)

$

$

Not available

46

Echo 61041401260

GASKET, GEAR CASE

$1.99

$

In Stock, Qty 11

0

47

Echo 61042601260

SEAL

$3.49

$

In Stock, only 1 left!

0

48

Echo 61041102060

LID, GEAR CASE
(Superseded to 61041102061)

$

$

Not available

49

Echo 90010008008

BOLT 8×8 SP

$0.99

$

In Stock, Qty 10

0

50

Echo 900242-04014

SCREW 4×14

$0.99

$

In Stock, Qty 5

0

51

Echo 90024204022

SCREW 4×22

$0.99

$

In Stock, Qty 8

0

52

Echo 61030201260

GEAR ASSY
(Superseded to 61030201261)

$

$

Not available

42

GEAR

$

$

Not available

44

Echo 61030701260

CONNECTING ROD ASSY
(Superseded to 61030701261)

$

$

Not available

43

Echo 61032701260

BEARING, NEEDLE
(Superseded to 61032701261)

$23.99

$

In Stock, Qty 9

0

53

Echo 69700002060

TRIMMER BLADE SET

Note: Blade Set Not Available. Order As Seperate Items. Upper Blade P/N 69701002060 & Lower Blade P/N 69701102060

$133.99

$

Usually ships in 2-4 days

0

54

Echo 69700002060

TRIMMER BLADE SET

Note: Blade Set Not Available. Order As Seperate Items. Upper Blade P/N 69701002060 & Lower Blade P/N 69701102060

$133.99

$

Usually ships in 2-4 days

0

55

Echo 69910502061

BAR, FRAME
(Superseded to X425000100)

$45.99

$

Usually ships in 2-4 days

0

56

Echo 35102702060

BOLT 6×40

$7.99

$

Usually ships in 2-4 days

0

57

Echo 69911801261

WASHER

$0.99

$

Usually ships in 2-4 days

0

58

Echo 69911502062

BOLT 6×22

$5.99

$

Usually ships in 2-4 days

0

59

Echo 35101002060

HANDLE, FRONT

$55.99

$

Usually ships in 2-4 days

0

60

Echo 900602-00006

WASHER 6

$0.99

$

In Stock, Qty 18

0

61

Echo 145710-00230

LOCKNUT - 6
(Superseded to 90056000006)

$1.49

$

In Stock, Qty 20+

0

62

Echo 69921302062

INSULATOR
(Superseded to 69921302063)

$5.99

$

In Stock, only 2 left!

0

63

Echo 89013824030

LABEL - ECHO
(Superseded to 89013844330)

$0.99

$

In Stock, Qty 5

0

65

Echo 88030001260

PUMP, GREASE
(Superseded to Discontinued)

$

$

Not available

66

Echo 89541000431

WRENCH 14×19 W/S.DRIVER
(Superseded to 89541006961)

$4.49

$

In Stock, only 2 left!

0

67

Echo 895112-00330

SPANNER 8×10

$0.99

$

In Stock, Qty 6

0

69

Echo 17801202060

LOCKOUT, TRIGGER
(Superseded to 17801202061)

$6.49

$

Usually ships in 2-4 days

0

70

Echo 17801302060

SPRING, THROTTLE LOCKOUT

$2.99

$

Usually ships in 2-4 days

0

71

Echo 17807002060

SPACER
(Superseded to 17807002061)

$1.99

$

In Stock, only 3 left!

0
