HC-2100 - Echo Hedge Trimmer Clutch, Ignition, Starter Parts Diagram

Hedge Trimmer

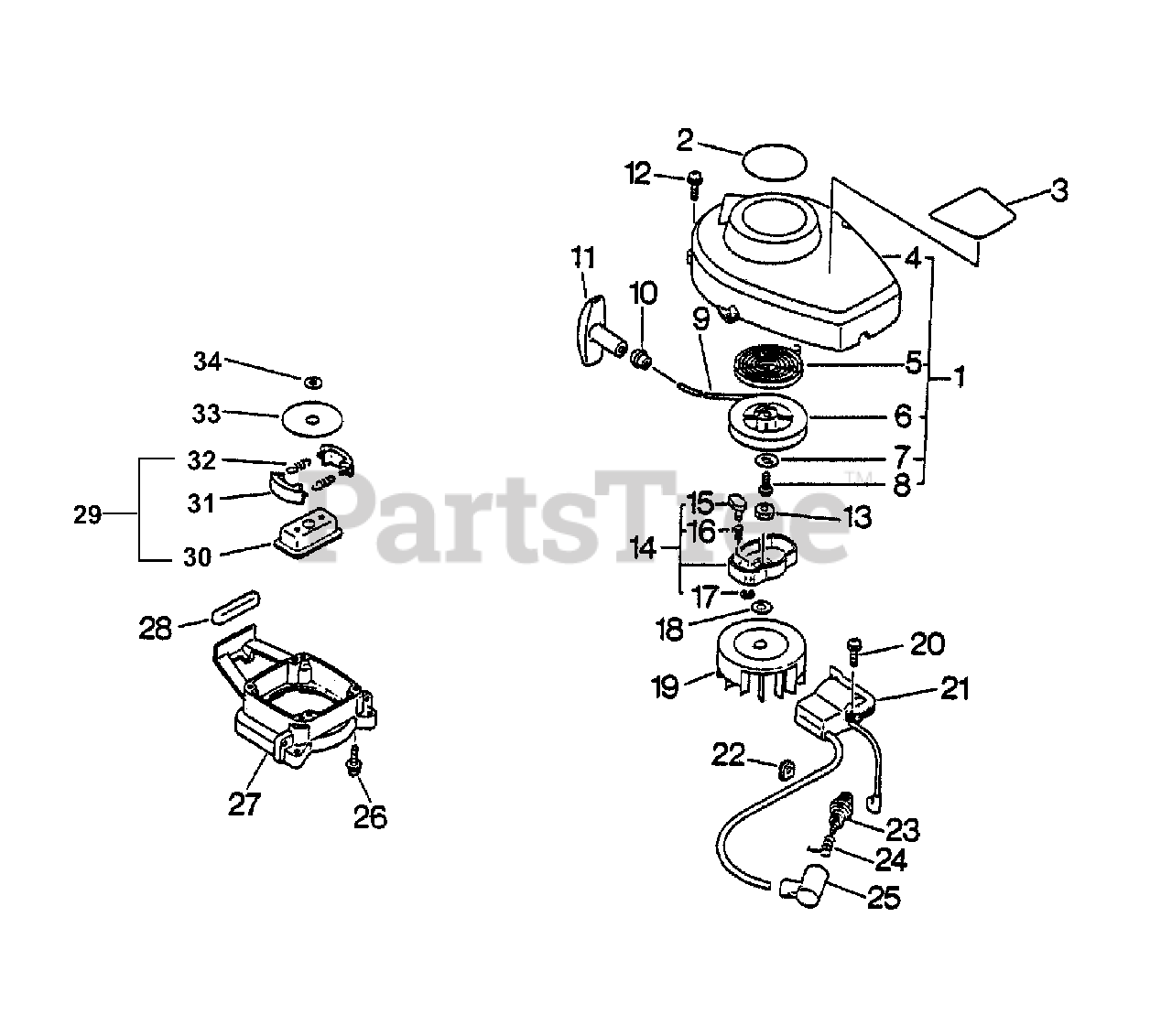

Clutch, Ignition, Starter Parts Diagram

  • Title

1

Echo 17720105960

STARTER ASSY
(Superseded to 17720005960)

Note: INCLUDES ITEMS 2- 11

$95.99

$

Usually ships in 2-4 days

0

2

Echo 890118-49130

LABEL, ECHO

$0.99

$

In Stock, Qty 20+

0

3

Echo 89011205960

LABEL, HC-2100

$2.49

$

Usually ships in 2-4 days

0

4

Echo 17723205960

CASE, STARTER
(Superseded to 17723205961)

$55.99

$

Usually ships in 2-4 days

0

5

Echo 17722044330

SPRING, REWIND
(Superseded to 17722042030)

$11.99

$

In Stock, Qty 10

0

6

Echo 17721505960

REEL, ROPE

$15.99

$

In Stock, only 2 left!

0

7

Echo 17721442030

WASHER
(Superseded to V303000230)

$1.99

$

Usually ships in 2-4 days

0

8

Echo 17723640630

SCREW

$4.99

$

In Stock, Qty 13

0

9

Echo 17722605530

ROPE, STARTER

Note: RePower BULK OPTION: 99944440000

$4.99

$

In Stock, Qty 5

0

10

Echo 177227-42030

GUIDE, ROPE
(Superseded to 17722742030)

$2.99

$

Usually ships in 2-4 days

0

11

Echo 177228-06530

GRIP, STARTER

$5.99

$

In Stock, Qty 5

0

12

Echo 900238-04016

SCREW 4×16

$0.99

$

Usually ships in 2-4 days

0

13

Echo 90051200008

NUT 8

$1.49

$

Usually ships in 2-4 days

0

14

Echo 17720205960

STARTER PAWL ASSY
(Superseded to 17720207360)

Note: Includes ITEMS 15-17

$16.99

$

In Stock, only 2 left!

0

15

Echo 17721842030

PAWL, STARTER

$4.49

$

Usually ships in 2-4 days

0

16

Echo 17723405960

SPRING, RETURN
(Superseded to P022007980)

$4.99

$

In Stock, Qty 6

0

17

Echo 90070000004

E-RING 4

$0.99

$

In Stock, Qty 20+

0

18

Echo 90060000008

WASHER 8.5×16×1.2

$0.99

$

Usually ships in 2-4 days

0

19

Echo 15680144730

FLYWHEEL
(Superseded to 15680144731)

$126.99

$

Usually ships in 2-4 days

0

20

Echo 900238-04022

SCREW 4×22

$0.99

$

In Stock, only 2 left!

0

21

Echo 15660144730

COIL, IGNITION
(Superseded to 15660144731)

$

$

Not available

22

Echo 15611004920

GROMMET

$0.99

$

In Stock, Qty 20+

0

23

Echo 15901010630

SPARK PLUG - BPM7A
(Superseded to 15901010230)

$3.99

$

In Stock, Qty 20+

0

23

Echo 159017-10230

SPARK PLUG - RCJ7Y

Note: CANADA MODELS

$4.99

$

In Stock, Qty 20+

0

24

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

25

Echo 159012-01620

CAP, SPARK PLUG

$1.99

$

In Stock, Qty 11

0

26

Echo 900238-04016

SCREW 4×16

$0.99

$

Usually ships in 2-4 days

0

27

Echo 61022305960

CASE, CLUTCH

$58.99

$

Usually ships in 2-4 days

0

28

Echo 13192028230

CUSHION, FUEL TANK

$1.49

$

In Stock, only 1 left!

0

29

Echo 17500002961

CLUTCH ASSY
(Superseded to 17500002962)

Note: INCLUDES ITEMS 30 - 32

$75.99

$

In Stock, only 2 left!

0

30

Echo 17501607330

HUB, CLUTCH
(Superseded to Discontinued)

$

$

Not available

31

Echo 17500905131

SHOE, CLUTCH

$25.99

$

In Stock, only 2 left!

0

32

Echo 17501805130

SPRING, CLUTCH

$1.99

$

In Stock, only 2 left!

0

33

Echo 17501904920

PLATE, CLUTCH
(Superseded to Discontinued)

$

$

Not available

34

Echo 17501405360

WASHER, CLUTCH

$2.49

$

Usually ships in 2-4 days

0

Echo 99944400040

BULK ROPE - 3×1000
(Superseded to 99944440000)

$35.99

$

In Stock, only 2 left!

0
