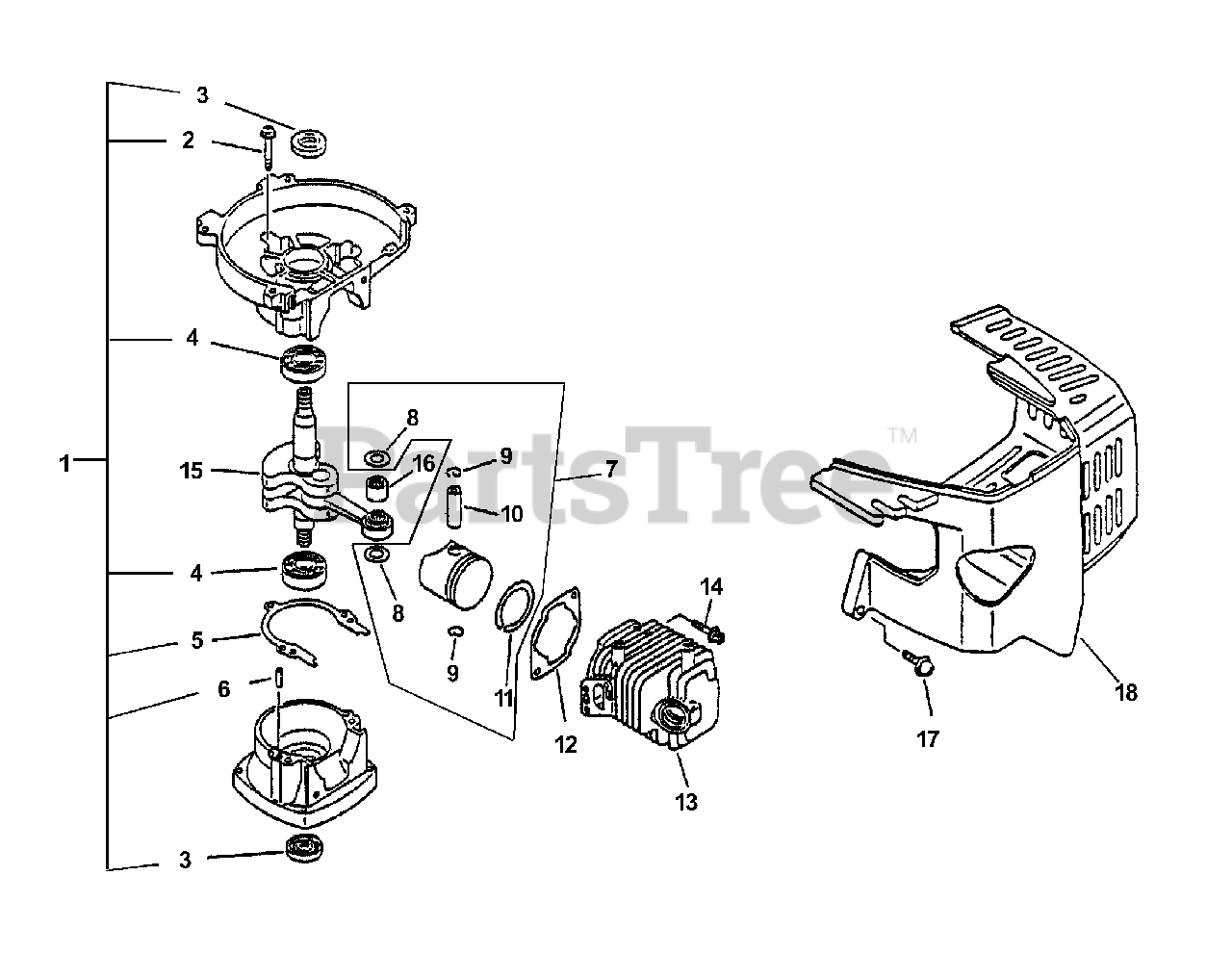

HC-2100 - Echo Hedge Trimmer Crankcase, Engine, Engine Cover, Fan Case Parts Diagram

Hedge Trimmer

Crankcase, Engine, Engine Cover, Fan Case Parts Diagram

  • Title

1

Echo 10020442030

CRANKCASE KIT
(Superseded to 10020451030)

Note: INCLUDES ITEMS 2 - 6

$157.99

$

Usually ships in 2-4 days

0

2

Echo 90016205028

SCREW - 5X28

$2.49

$

In Stock, Qty 11

0

3

Echo 10021242031

SEAL, OIL

$7.99

$

In Stock, Qty 5

0

4

Echo 9403536201

BEARING, BALL - 6201

$9.99

$

In Stock, only 3 left!

0

5

------------------

GASKET, CRANKCASE

Note: USE KIT P/N 88900005960

$

$

Not available

6

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 5

0

7

Echo 10000044330

PISTON KIT
(Superseded to 10000044331)

Note: INCLUDES ITEMS 8 - 11

$78.99

$

Usually ships in 2-4 days

0

8

Echo 10001411520

SPACER, PISTON

$3.99

$

Usually ships in 2-4 days

0

9

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

10

Echo 10001311520

PIN, PISTON

$8.49

$

In Stock, only 2 left!

0

11

Echo 10001105330

RING, PISTON

$10.99

$

In Stock, Qty 15

0

12

Echo 10101042031

GASKET, CYLINDER
(Superseded to 10101044330)

Note: USE KIT P/N 88900005960

$4.99

$

In Stock, Qty 12

0

13

Echo 10101145230

CYLINDER

$153.99

$

Usually ships in 2-4 days

0

14

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 5

0

15

Echo 10010005960

CRANKSHAFT ASSY
(Superseded to 10010005961)

$

$

Not available

16

Echo 10001211520

BEARING, NEEDLE
(Superseded to 10001251230)

$11.99

$

In Stock, only 2 left!

0

17

Echo 90024204020

SCREW - 4X20

$0.99

$

In Stock, Qty 16

0

18

Echo 10151405960

COVER, ENGINE
(Superseded to 10151408960)

$

$

Not available

Echo SB1022

SHORT BLOCK -- SB1022
(Superseded to SB1032)

$

$

Not available

Echo 88900005960

GASKET KIT
(Superseded to Discontinued)

Note: INCLUDES ALL ITEMS BELOW

$

$

Not available

------------------

GASKET, CRANKCASE

$

$

Not available

Echo 10101042031

GASKET, CYLINDER
(Superseded to 10101044330)

$4.99

$

In Stock, Qty 12

0

Echo 13001005960

GASKET, INTAKE

$1.99

$

In Stock, Qty 9

0

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

$2.99

$

In Stock, Qty 20+

0

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

$2.99

$

In Stock, Qty 20+

0

Echo 13001642031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

Echo V104000160

GASKET, EXHAUST

$2.49

$

In Stock, Qty 20+

0

Echo 14586642031

GASKET, EXHAUST

$2.99

$

In Stock, only 4 left!

0

Echo 61041401260

GASKET, GEAR CASE

$1.99

$

In Stock, Qty 11

0
