HC-2100 - Echo Hedge Trimmer Crankcase, Engine, Engine Cover, Fan Case Parts Diagram

Hedge Trimmer

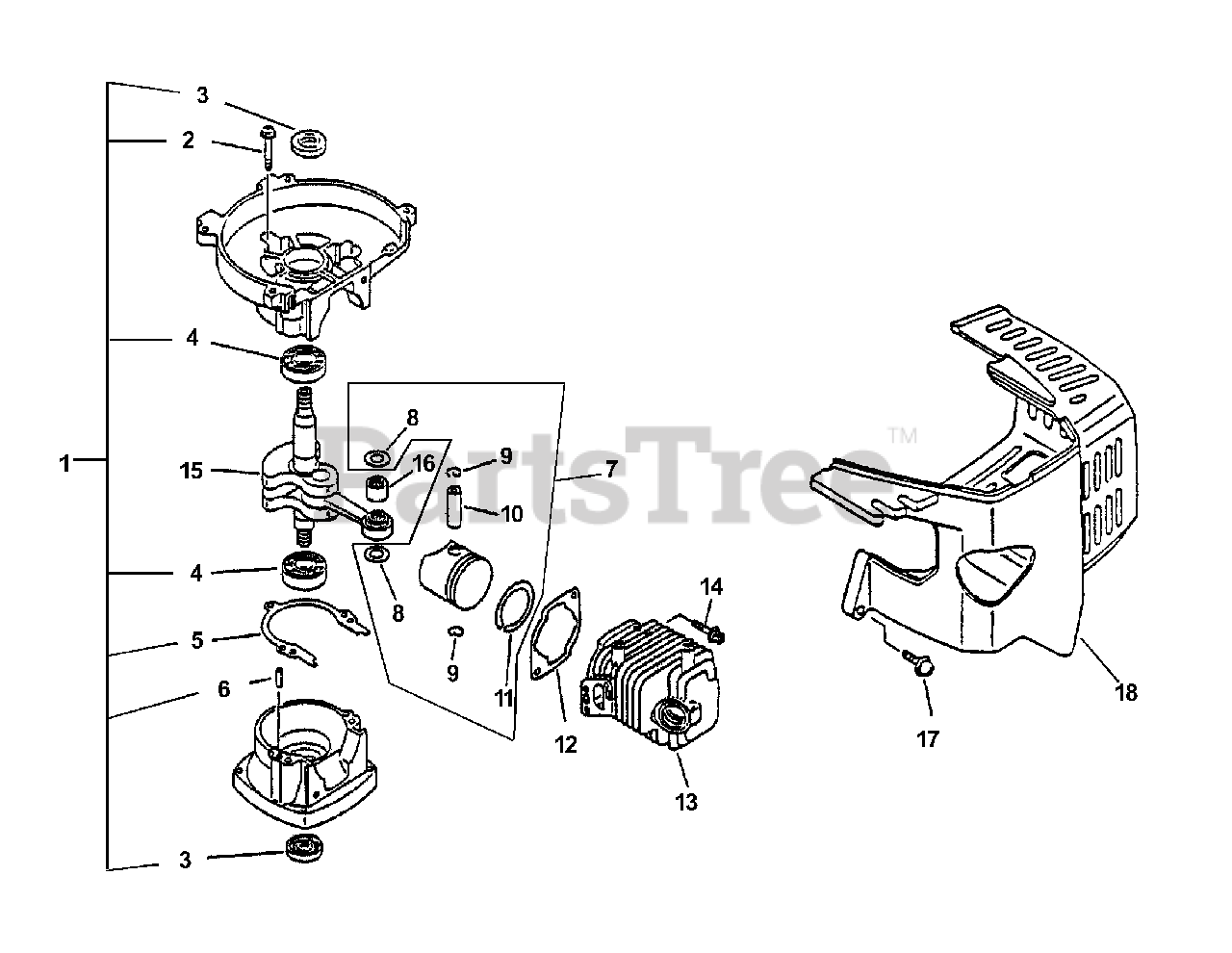

Crankcase, Engine, Engine Cover, Fan Case Parts Diagram

  • Title

1

Echo 10020442030

CRANKCASE KIT
(Superseded to 10020451030)

Note: INCLUDES ITEMS 2 - 6

$157.99

$

Usually ships in 2-4 days

0

2

Echo 900162-05028

BOLT 5×28

$2.49

$

In Stock, Qty 10

0

3

Echo 100212-42031

SEAL, OIL 12

$7.99

$

In Stock, Qty 20+

0

4

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

5

GASKET, CRANKCASE

Note: USE KIT P/N 88900005960

$

$

Not available

6

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, only 4 left!

0

7

Echo 10000044330

PISTON KIT
(Superseded to 10000044331)

Note: INCLUDES ITEMS 8 - 11

$78.99

$

Usually ships in 2-4 days

0

8

Echo 100014-11520

WASHER, THRUST

$3.99

$

In Stock, only 2 left!

0

9

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

10

Echo 100013-11520

PIN, PISTON 8

$8.49

$

In Stock, only 2 left!

0

11

Echo 100011-05330

RING, PISTON
(Superseded to 10001105330)

$10.99

$

In Stock, Qty 8

0

12

Echo 10101042031

GASKET, CYLINDER
(Superseded to 10101044330)

Note: USE KIT P/N 88900005960

$4.99

$

In Stock, Qty 6

0

13

Echo 101011-45230

CYLINDER

$153.99

$

Usually ships in 2-4 days

0

14

Echo 900162-05022

BOLT 5×22

$0.99

$

In Stock, only 3 left!

0

15

Echo 10010005960

CRANKSHAFT ASSY
(Superseded to 10010005961)

$

$

Not available

16

Echo 10001211520

BEARING, NEEDLE
(Superseded to 10001251230)

$11.99

$

In Stock, only 2 left!

0

17

Echo 900242-04020

SCREW 4×20

$0.99

$

In Stock, Qty 16

0

18

Echo 10151405960

COVER, ENGINE
(Superseded to 10151408960)

$

$

Not available

Echo SB1022

SHORT BLOCK - SB1022
(Superseded to SB1032)

$

$

Not available

Echo 88900005960

GASKET KIT
(Superseded to Discontinued)

Note: INCLUDES ALL ITEMS BELOW

$

$

Not available

GASKET, CRANKCASE

$

$

Not available

Echo 10101042031

GASKET, CYLINDER
(Superseded to 10101044330)

$4.99

$

In Stock, Qty 6

0

Echo 13001005960

GASKET, CARBURETOR

$1.99

$

In Stock, Qty 6

0

Echo V103000490

HEAT SHIELD, INTAKE
(Superseded to V103001360)

$2.99

$

In Stock, Qty 10

0

Echo V103000490

HEAT SHIELD, INTAKE
(Superseded to V103001360)

$2.99

$

In Stock, Qty 10

0

Echo 130016-42031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

Echo V104000160

GASKET, EXHAUST

$2.49

$

In Stock, Qty 20+

0

Echo 145866-42031

GASKET, EXHAUST

$2.99

$

In Stock, only 2 left!

0

Echo 61041401260

GASKET, GEAR CASE

$1.99

$

In Stock, Qty 11

0
