HC-2100 - Echo Hedge Trimmer Intake, Exhaust, Air Filter Parts Diagram

Hedge Trimmer

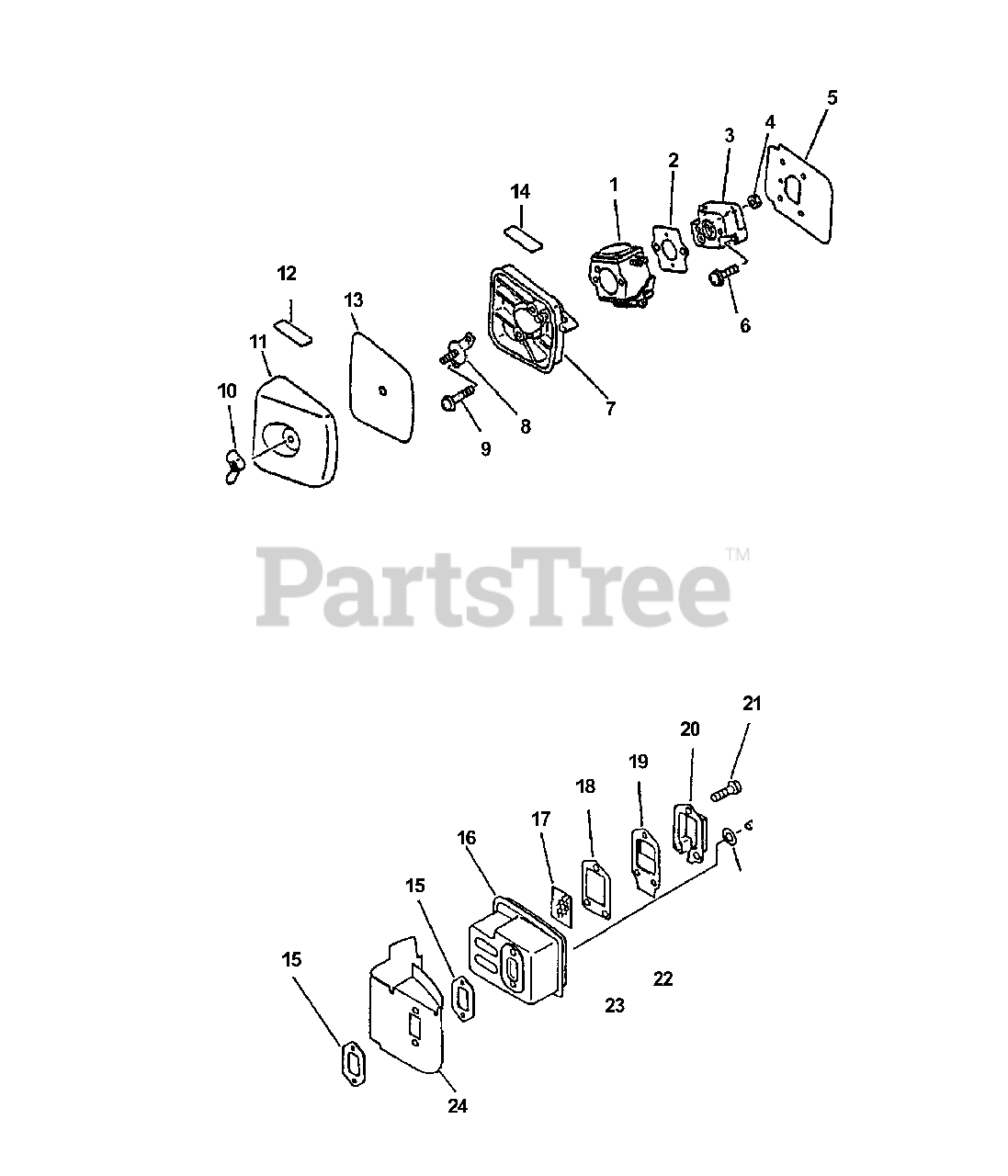

Intake, Exhaust, Air Filter Parts Diagram

  • Title

1

Echo 12300005961

CARBURETOR - WT -168A
(Superseded to Discontinued)

Note: S/N: 001001 - 012000

$

$

Not available

1

Echo 12520006960

CARBURETOR - C1U-K18
(Superseded to 12520006962)

Note: S/N: 001001 - 012000

$95.99

$

In Stock, only 4 left!

0

2

Echo 13001005960

GASKET, CARBURETOR

Note: S/N: 001001 - 012000

$1.99

$

In Stock, Qty 15

0

2

Echo 130016-42031

GASKET, INTAKE

Note: S/N: 001001 - 012000

$1.49

$

In Stock, Qty 20+

0

3

Echo 130017-42031

INSULATOR, INTAKE

$11.99

$

In Stock, Qty 20+

0

4

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

5

Echo V103000490

HEAT SHIELD, INTAKE
(Superseded to V103001360)

$2.99

$

In Stock, Qty 20+

0

6

Echo 900238-05020

SCREW 5×20

$0.99

$

In Stock, Qty 20+

0

7

Echo 13080605360

CASE, AIR FILTER
(Superseded to 13030705360)

Note: Includes ITEM 8 S/N: 001001 - 012000

$

$

Not available

7

Echo 13030705361

CASE, AIR FILTER
(Superseded to Discontinued)

Note: Includes ITEM 8 S/N: 012001 - 999999

$

$

Not available

8

Echo 13041005360

PLATE, PREVENT

Note: S/N: 001001 - 012000

$11.99

$

In Stock, only 2 left!

0

8

Echo 12901105060

PLATE, PREVENT

$6.99

$

In Stock, Qty 7

0

9

Echo 90024205064

SCREW 5×64

$1.49

$

In Stock, Qty 9

0

10

Echo 90052800005

WINGNUT - 6

$1.99

$

In Stock, Qty 15

0

11

Echo 13031344330

COVER, AIR FILTER
(Superseded to 13031344331)

Note: Includes ITEM 12

$5.49

$

Usually ships in 2-4 days

0

12

Echo 89018706960

LABEL - TOP

$3.99

$

Usually ships in 2-4 days

0

13

Echo 13031004560

FILTER, AIR

$5.99

$

In Stock, Qty 6

0

14

Echo 89012105360

LABEL, CHOKE

$1.99

$

In Stock, Qty 13

0

15

Echo V104000160

GASKET, EXHAUST

$2.49

$

In Stock, Qty 20+

0

16

Echo 145806-42030

MUFFLER

$55.99

$

In Stock, Qty 7

0

17

Echo 14586240630

SCREEN, SPARK ARRESTER

$2.49

$

In Stock, Qty 20+

0

18

Echo 145866-42031

GASKET, EXHAUST

$2.99

$

In Stock, Qty 20+

0

19

Echo 14587642030

GUIDE, EXHAUST

$4.99

$

In Stock, only 3 left!

0

20

Echo 14586306960

GUIDE, EXHAUST - INNER
(Superseded to 14586311520)

$5.49

$

Usually ships in 2-4 days

0

21

Echo 900242-04010

SCREW 4×10

$0.99

$

In Stock, Qty 20+

0

22

Echo 900105-05055

BOLT 5×55

$1.99

$

In Stock, Qty 20+

0

23

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

24

Echo 14587144330

COVER, EXHAUST
(Superseded to 14587144331)

$5.99

$

In Stock, Qty 12

0
