HC-225 - Echo Hedge Trimmer (SN: S85213001001 - S85213999999) Engine, Short Block -- SB1075 Parts Diagram

Hedge Trimmer

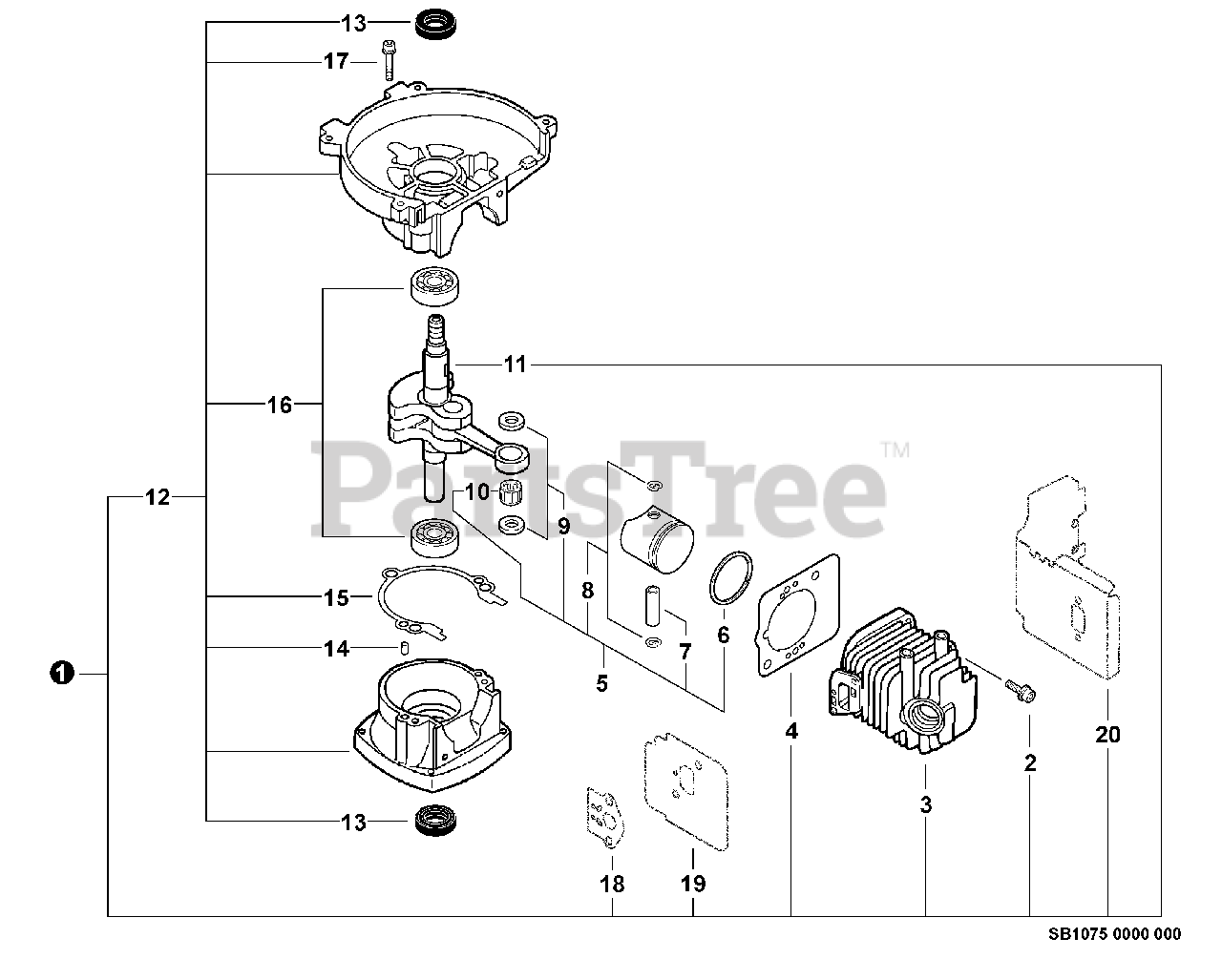

Engine, Short Block -- SB1075 Parts Diagram

  • Title

1

Echo SB1075

SHORT BLOCK -- SB1075

Note: Includes ITEM 2-20

$257.99

$

In Stock, only 3 left!

0

2

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

3

Echo A130000550

CYLINDER

$100.99

$

In Stock, only 2 left!

0

4

Echo V100000160

GASKET, CYLINDER

$6.99

$

In Stock, Qty 13

0

5

Echo P021007772

PISTON KIT

Note: Includes ITEMS 6-10

$52.99

$

Usually ships in 2-4 days

0

6

Echo A101000090

RING, PISTON

$

$

Not available

7

Echo 10001311520

PIN, PISTON

$7.99

$

Usually ships in 2-4 days

0

8

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

9

Echo 10001408960

WASHER

$3.99

$

Usually ships in 2-4 days

0

10

Echo 10011305930

BEARING, NEEDLE - 8

$12.99

$

Usually ships in 2-4 days

0

11

Echo A011000223

CRANKSHAFT ASSY

$179.99

$

Usually ships in 2-4 days

0

12

Echo 10020452132

CRANKCASE KIT
(Superseded to 10020452133)

Note: Includes ITEMS 13-17

$156.99

$

Usually ships in 2-4 days

0

13

Echo 10021242031

SEAL, OIL

$7.49

$

In Stock, Qty 13

0

14

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

15

Echo 10024242030

GASKET, CRANKCASE

$1.49

$

In Stock, Qty 20+

0

16

Echo 9403536201

BEARING, BALL - 6201

$8.99

$

In Stock, Qty 17

0

17

Echo 90016205028

SCREW - 5X28

$2.49

$

In Stock, Qty 11

0

18

------------------

SHIELD, EXHAUST

$

$

Not available

19

------------------

SHIELD, INTAKE

$

$

Not available

20

------------------

GASKET, INTAKE

$

$

Not available
