HC-225 - Echo Hedge Trimmer (SN: S85213001001 - S85213999999) Gear Case, Front Handle, Blades Parts Diagram

Hedge Trimmer

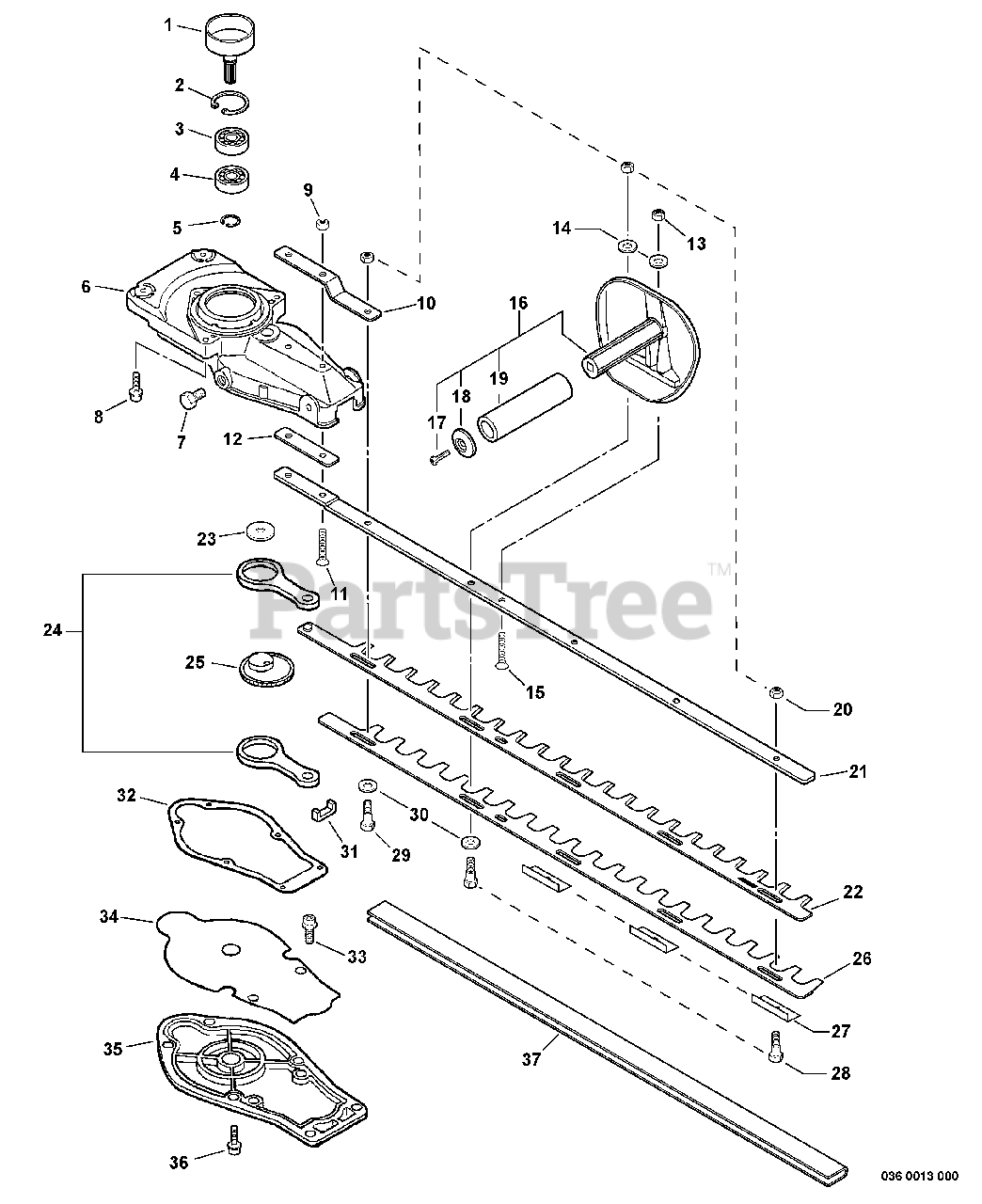

Gear Case, Front Handle, Blades Parts Diagram

  • Title

1

Echo 17500504560

DRUM, CLUTCH

$52.99

$

In Stock, only 3 left!

0

2

Echo 90070200035

RING, SNAP 35

$2.49

$

In Stock, Qty 9

0

3

Echo 90081336202

BEARING, BALL 6202

$12.99

$

In Stock, only 3 left!

0

4

Echo 90081036202

BEARING, BALL 6202

$11.99

$

In Stock, only 2 left!

0

5

Echo 90070100014

RING, SNAP 14

$1.49

$

In Stock, only 2 left!

0

6

Echo 61040707760

CASE, GEAR

$166.99

$

Usually ships in 2-4 days

0

7

Echo 90010008008

BOLT 8×8 SP

$0.99

$

In Stock, Qty 10

0

8

Echo 90016205025

BOLT 5×25

$0.99

$

In Stock, Qty 20+

0

9

Echo 900500-00006

NUT, HEX M6

$0.99

$

In Stock, Qty 20+

0

10

Echo 69912006560

PLATE, ANGLE

$5.99

$

Usually ships in 2-4 days

0

11

Echo 90021206025

SCREW 6×25

$0.99

$

In Stock, Qty 9

0

12

Echo 69911807760

PLATE, EYE

$4.49

$

Usually ships in 2-4 days

0

13

Echo 43302206460

NUT M6

$1.49

$

In Stock, Qty 20+

0

14

Echo 30021700610

WASHER 5.5×18×1

$0.99

$

In Stock, Qty 10

0

15

Echo 90021206030

SCREW 6×30

$1.99

$

In Stock, Qty 8

0

16

Echo 35120007363

HANDLE ASSY, FRONT

Note: Includes ITEMS 17-19

$24.99

$

In Stock, only 2 left!

0

17

Echo 90025305014

SCREW 5×14

$1.49

$

In Stock, Qty 5

0

18

Echo 35121707361

CAP

$1.99

$

Usually ships in 2-4 days

0

19

Echo 35101207361

GRIP, HANDLE

$9.49

$

In Stock, Qty 5

0

20

Echo 43302206460

NUT M6

$1.49

$

In Stock, Qty 20+

0

21

Echo X425000250

SUPPORT, BLADE

$31.99

$

Usually ships in 2-4 days

0

22

Echo X411000360

CUTTER, UPPER

$44.99

$

Usually ships in 2-4 days

0

23

Echo 61035004560

WASHER

$1.99

$

In Stock, only 3 left!

0

24

Echo C532000120

CONROD
(Superseded to C532000121)

$28.99

$

In Stock, only 2 left!

0

25

Echo 61031204560

GEAR

$91.99

$

In Stock, only 4 left!

0

26

Echo X411000370

CUTTER, LOWER

$44.99

$

Usually ships in 2-4 days

0

27

Echo 69921304160

INSULATOR

$5.99

$

In Stock, Qty 18

0

28

Echo 69911507760

BOLT, CUTTER

$3.99

$

In Stock, Qty 11

0

29

Echo 69911505360

BOLT 6×35

$2.99

$

Usually ships in 2-4 days

0

30

Echo 69911804560

WASHER 6.5×15.5×0.6

$0.99

$

In Stock, Qty 20+

0

31

Echo 61042504560

SEAL

$1.49

$

In Stock, Qty 5

0

32

Echo 61041405360

GASKET, GEAR CASE

Note: Included In GASKET KIT P021001851 ONLY

$1.49

$

In Stock, only 2 left!

0

33

Echo 90016205012

BOLT 5×12

$0.99

$

In Stock, Qty 20+

0

34

Echo 61044707760

PLATE, GEAR CASE
(Superseded to Discontinued)

$

$

Not available

35

Echo 61041107760

COVER, GEAR CASE

$93.99

$

Usually ships in 2-4 days

0

36

Echo 90016204012

BOLT 4×12

$1.49

$

In Stock, Qty 20+

0

37

Echo 89852302961

SCABBARD

$24.99

$

Usually ships in 2-4 days

0
