HC-225 - Echo Hedge Trimmer (SN: S85213001001 - S85213999999) Starter Parts Diagram

Hedge Trimmer

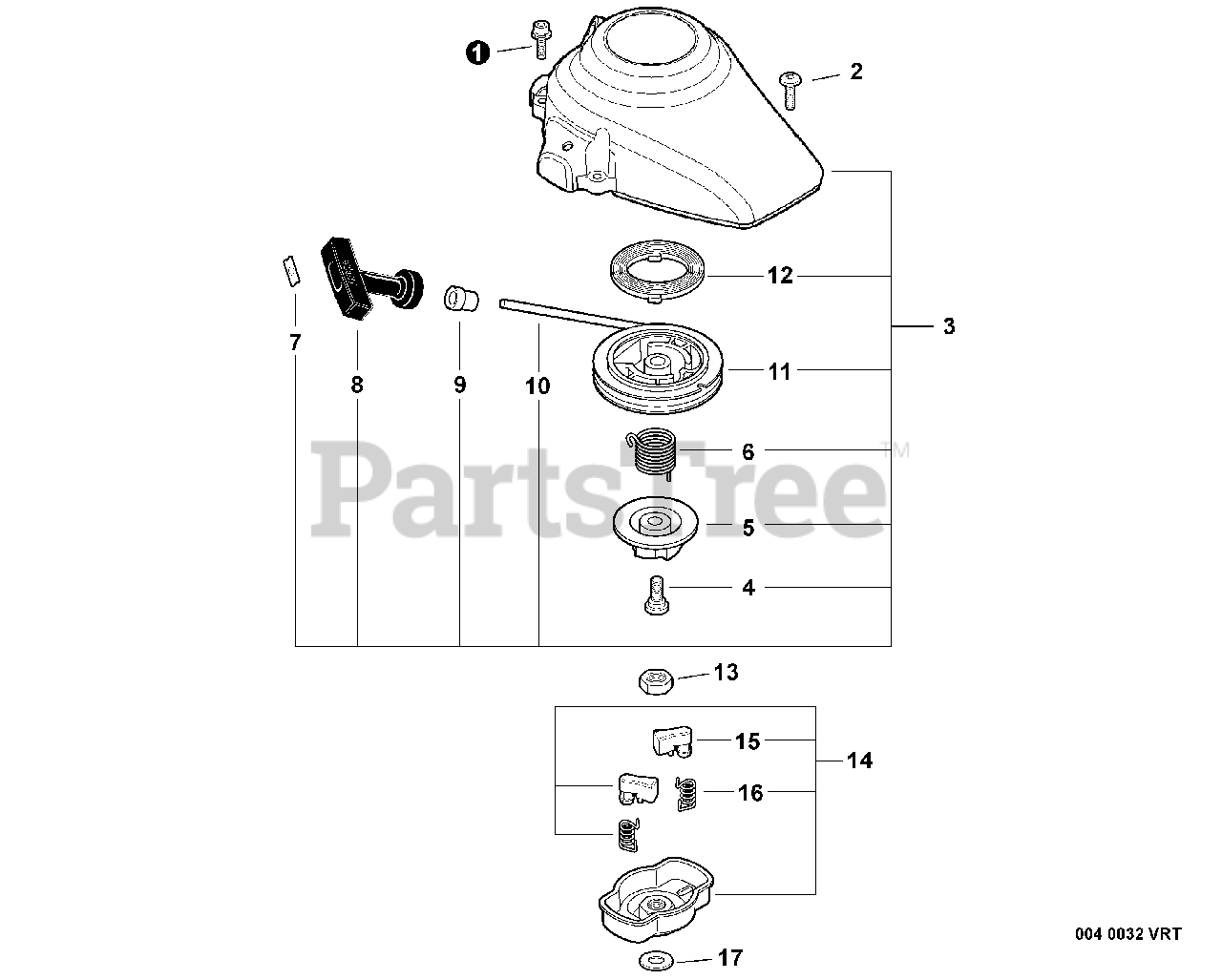

Starter Parts Diagram

  • Title

1

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.99

$

In Stock, Qty 20+

0

2

Echo V202000030

SCREW - 4

$1.49

$

In Stock, Qty 5

0

3

Echo A051001110

STARTER ASSY
(Superseded to A051001111)

Note: Includes ITEMS 4-12

$60.99

$

In Stock, only 3 left!

0

4

Echo 17723661830

SCREW
(Superseded to V253000310)

$1.99

$

In Stock, only 2 left!

0

5

Echo A507000030

CATCHER, PAWL

$8.49

$

Usually ships in 2-4 days

0

6

Echo V452000150

SPRING

$6.49

$

In Stock, only 2 left!

0

7

Echo 17724611120

RETAINER, ROPE
(Superseded to P022037670)

$2.49

$

In Stock, only 2 left!

0

8

Echo 17722827030

GRIP, STARTER

$6.99

$

In Stock, Qty 15

0

9

Echo 17722742030

GUIDE, ROPE

$2.99

$

Usually ships in 2-4 days

0

10

Echo P022008260

ROPE, STARTER - 3X700

Note: RePower BULK OPTION: 99944440000

$5.99

$

Usually ships in 2-4 days

0

11

Echo P022006830

REEL, ROPE
(Superseded to P050009900)

$17.99

$

In Stock, Qty 20+

0

12

Echo 17722042030

SPRING, REWIND
(Superseded to P022019680)

$10.99

$

In Stock, Qty 20+

0

13

Echo 90051200008

NUT - LEFT HAND

$1.49

$

Usually ships in 2-4 days

0

14

Echo A052000210

STARTER PAWL ASSY

Note: Includes ITEMS 15-16

$15.99

$

Usually ships in 2-4 days

0

15

Echo P022020030

PAWL, STARTER

$3.49

$

In Stock, Qty 9

0

16

Echo P022007980

SPRING, RETURN

$4.49

$

In Stock, Qty 6

0

17

Echo 90060000008

WASHER - 8

$0.99

$

In Stock, Qty 7

0
