HC-230 - Echo Hedge Trimmer (SN: S76512001001 - S76512999999) Engine, Short Block -- SB1063 Parts Diagram

Hedge Trimmer

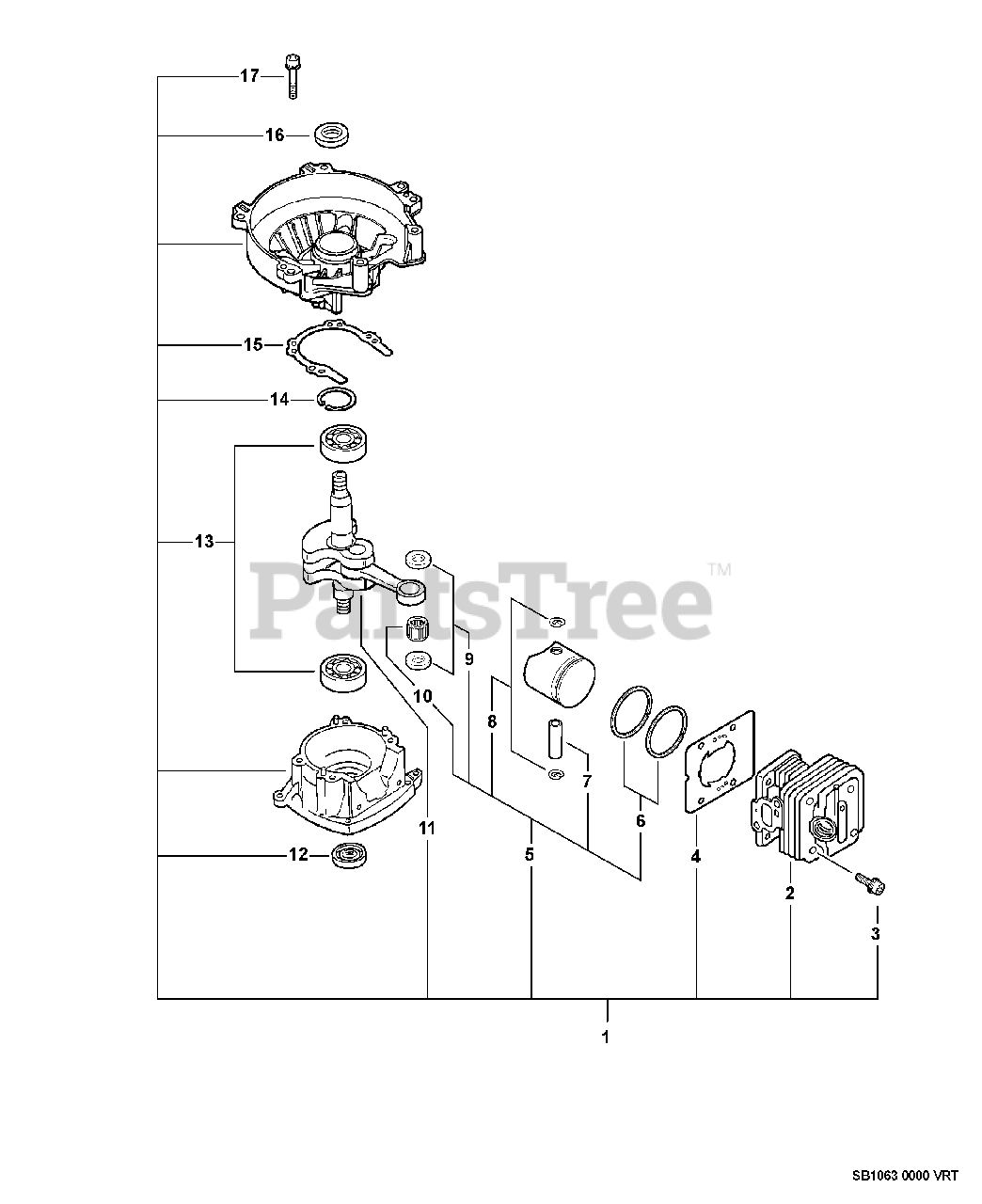

Engine, Short Block -- SB1063 Parts Diagram

  • Title

1

Echo SB1063

SHORT BLOCK -- SB1063

Note: Includes ITEM 2-17

$201.99

$

Usually ships in 2-4 days

0

2

Echo A130000341

CYLINDER

$184.99

$

Usually ships in 2-4 days

0

3

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 19

0

4

Echo V100000060

GASKET, CYLINDER

$7.49

$

In Stock, only 2 left!

0

5

Echo P021003861

PISTON KIT

Note: Includes ITEMS 6-10

$64.99

$

Usually ships in 2-4 days

0

6

Echo A101000000

RING, PISTON

$9.49

$

In Stock, Qty 20+

0

7

Echo 10001311520

PIN, PISTON

$7.99

$

Usually ships in 2-4 days

0

8

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

9

Echo 10001455930

SPACER, PISTON

$3.99

$

Usually ships in 2-4 days

0

10

Echo V553000020

BEARING, NEEDLE - 8
(Superseded to V553000140)

$11.99

$

Usually ships in 2-4 days

0

11

Echo A011000061

CRANKSHAFT ASSY
(Superseded to A011000062)

$175.99

$

Usually ships in 2-4 days

0

12

Echo 10021305530

SEAL, OIL

$6.99

$

In Stock, Qty 20+

0

13

Echo 90080036001

BEARING, BALL - 6001C3

$10.99

$

In Stock, only 3 left!

0

14

Echo 90070200028

RING, RETAINING - 28

$1.99

$

In Stock, Qty 20+

0

15

Echo 10024255930

GASKET, CRANKCASE

$3.99

$

In Stock, only 4 left!

0

16

Echo 10021228230

SEAL, OIL - 12

$4.99

$

In Stock, Qty 8

0

17

Echo 90016205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0
