HC-230 - Echo Hedge Trimmer (SN: S76512001001 - S76512999999) Handle, Ignition Switch, Throttle Cable Parts Diagram

Hedge Trimmer

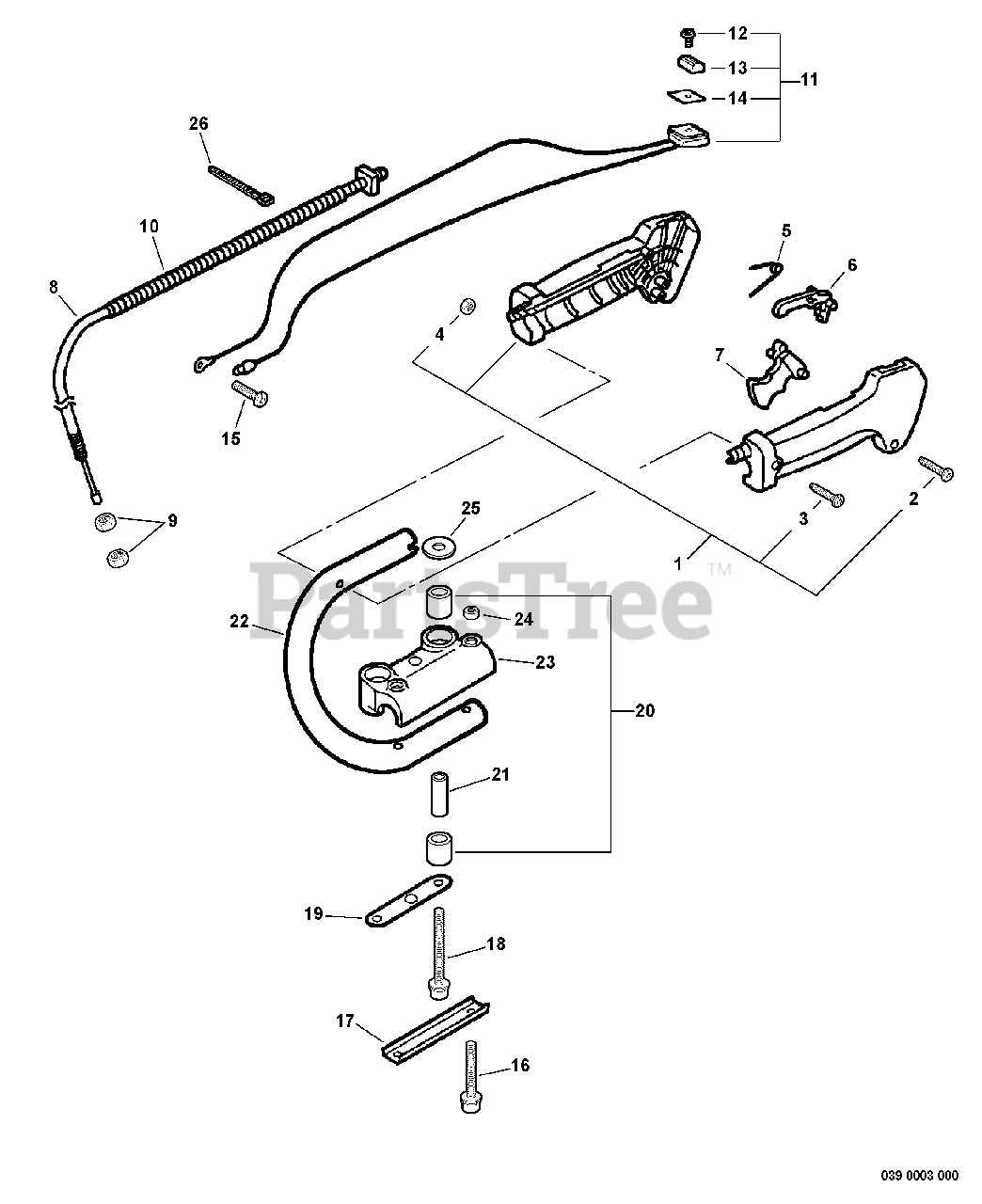

Handle, Ignition Switch, Throttle Cable Parts Diagram

  • Title

1

Echo 351102-47530

CONTROL HANDLE KIT

Note: INCLUDES ITEMS 2-4

$41.99

$

In Stock, only 2 left!

0

2

Echo 900246-03025

SCREW 3×25

$0.99

$

Usually ships in 2-4 days

0

3

Echo 900220-05030

SCREW 5×30

$0.99

$

Usually ships in 2-4 days

0

4

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

5

Echo 178013-35631

SPRING, TORSION

$2.99

$

In Stock, Qty 5

0

6

Echo 178012-05960

LOCKOUT, THROTTLE

$6.99

$

In Stock, only 2 left!

0

7

Echo 178010-05960

TRIGGER, THROTTLE

$6.49

$

In Stock, only 2 left!

0

8

Echo V430000090

CABLE, THROTTLE

$19.99

$

Usually ships in 2-4 days

0

9

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 12

0

10

Echo V475000840

TUBE, FLEXIBLE
(Superseded to Discontinued)

$

$

Not available

11

Echo A440000121

SWITCH, ON-OFF

Note: Includes ITEMS 12-14

$16.99

$

Usually ships in 2-4 days

0

12

Echo 9154503010

SCREW 3×10

$0.99

$

In Stock, Qty 20+

0

13

Echo 16341049231

KNOB, SWITCH - ORANGE

$4.99

$

In Stock, Qty 19

0

14

Echo 89015712330

LABEL, SWITCH

$3.99

$

In Stock, only 1 left!

0

15

Echo 900242-05010

SCREW 5×10

$0.99

$

In Stock, Qty 20+

0

16

Echo 90016205035

BOLT M5×35

$1.99

$

In Stock, Qty 16

0

17

Echo 35124301260

BRACKET

$3.49

$

Usually ships in 2-4 days

0

18

Echo 90016205045

BOLT 5×45

$1.99

$

Usually ships in 2-4 days

0

19

Echo 35124206961

PLATE, EYE

$2.99

$

Usually ships in 2-4 days

0

20

Echo 35122807760

CUSHION

$3.49

$

In Stock, Qty 20+

0

21

Echo 35124101260

SPACER
(Superseded to 35124101261)

$3.49

$

In Stock, Qty 16

0

22

Echo C410000170

HANDLE, REAR

$45.99

$

Usually ships in 2-4 days

0

23

Echo 35121707761

BRACKET, HANDLE - UPPER

$15.99

$

Usually ships in 2-4 days

0

24

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

25

Echo 30021700610

WASHER 5.5×18×1

$0.99

$

In Stock, Qty 10

0

26

Echo 178121-43230

STRAP, TIE

$3.99

$

In Stock, only 3 left!

0
