HC-231 - Echo Hedge Trimmer (SN: 05001001 - 05999999) Handle, Ignition Switch, Throttle Cable S/N: 05002451 - 05002722 Parts Diagram

Hedge Trimmer

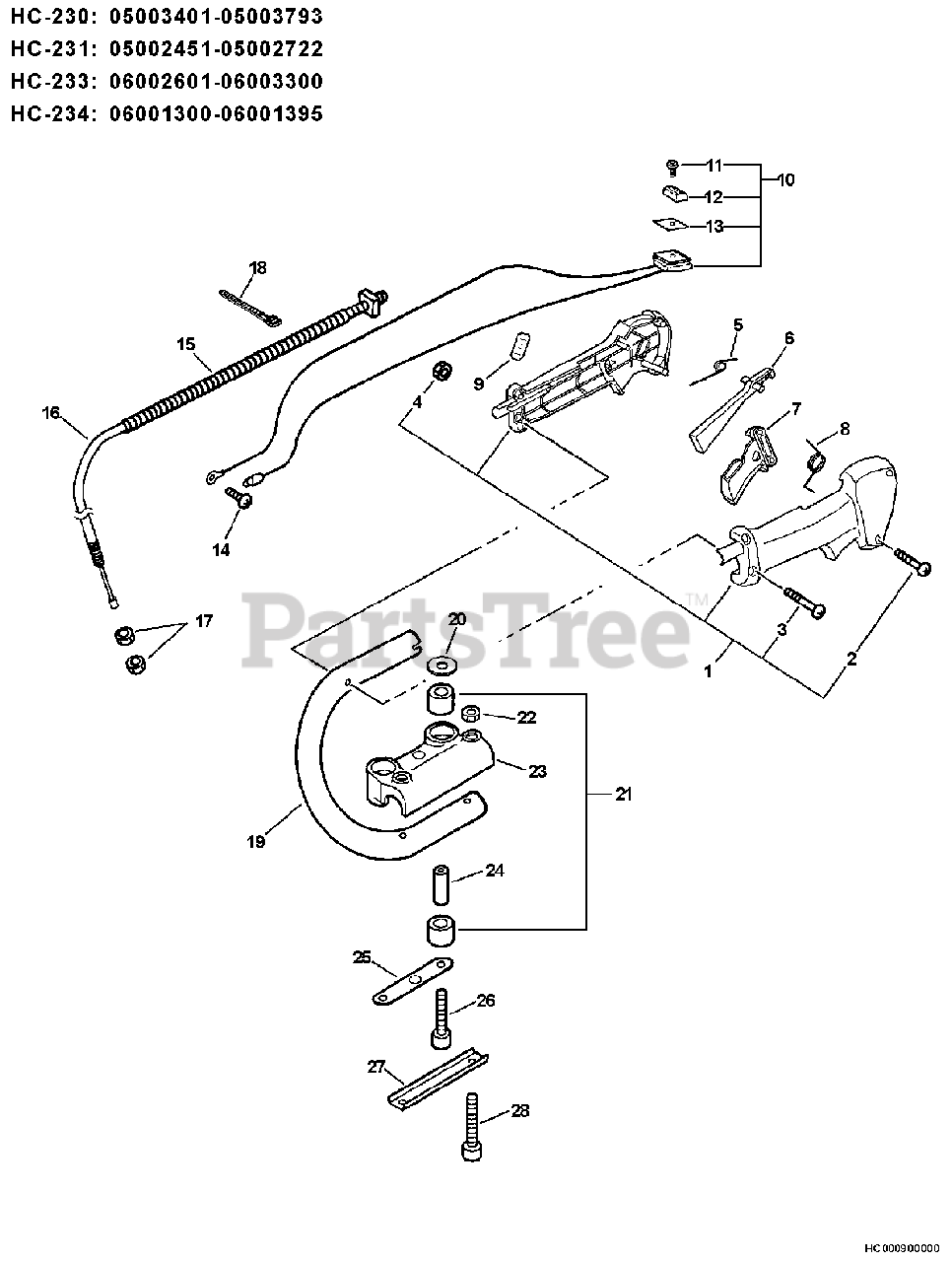

Handle, Ignition Switch, Throttle Cable S/N: 05002451 - 05002722 Parts Diagram

  • Title

1

Echo P021002611

FRONT HANDLE GRIP ASSY
(Superseded to P021002612)

Note: INCLUDES ITEMS 2-4

$40.99

$

In Stock, only 2 left!

0

2

Echo 90025304016

SCREW 4×16

$0.99

$

In Stock, Qty 10

0

3

Echo 900220-05030

SCREW 5×30

$0.99

$

Usually ships in 2-4 days

0

4

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

5

Echo V452000050

SPRING, TORSION

$1.99

$

In Stock, Qty 5

0

6

Echo C460000011

LOCKOUT, THROTTLE

$5.99

$

In Stock, only 2 left!

0

7

Echo C450000022

TRIGGER, THROTTLE

$13.99

$

In Stock, only 2 left!

0

8

Echo V452000060

SPRING, TORSION

$1.99

$

In Stock, Qty 5

0

9

Echo V162000130

PLUG

$2.99

$

In Stock, Qty 7

0

10

Echo A440000121

SWITCH, ON-OFF

Note: Includes ITEMS 11-13

$16.99

$

Usually ships in 2-4 days

0

11

Echo 9154503010

SCREW 3×10

$0.99

$

In Stock, Qty 20+

0

12

Echo 16341049231

KNOB, SWITCH - ORANGE

$4.99

$

In Stock, Qty 19

0

13

Echo 89015712330

LABEL, SWITCH

$3.99

$

In Stock, only 1 left!

0

14

Echo 900242-05010

SCREW 5×10

$0.99

$

In Stock, Qty 20+

0

15

Echo V475000840

TUBE, FLEXIBLE
(Superseded to Discontinued)

$

$

Not available

16

Echo V430000090

CABLE, THROTTLE

$19.99

$

Usually ships in 2-4 days

0

17

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 12

0

18

Echo 178121-43230

STRAP, TIE

$3.99

$

In Stock, only 3 left!

0

19

Echo C410000170

HANDLE, REAR

$45.99

$

Usually ships in 2-4 days

0

20

Echo 30021700610

WASHER 5.5×18×1

$0.99

$

In Stock, Qty 10

0

21

Echo 35122807760

CUSHION

$3.49

$

In Stock, Qty 20+

0

22

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

23

Echo 35121707761

BRACKET, HANDLE - UPPER

$15.99

$

Usually ships in 2-4 days

0

24

Echo 35124101260

SPACER
(Superseded to 35124101261)

$3.49

$

In Stock, Qty 16

0

25

Echo 35124206961

PLATE, EYE

$2.99

$

Usually ships in 2-4 days

0

26

Echo 90016205045

BOLT 5×45

$1.99

$

Usually ships in 2-4 days

0

27

Echo 35124301260

BRACKET

$3.49

$

Usually ships in 2-4 days

0

28

Echo 90016205035

BOLT M5×35

$1.99

$

In Stock, Qty 16

0
