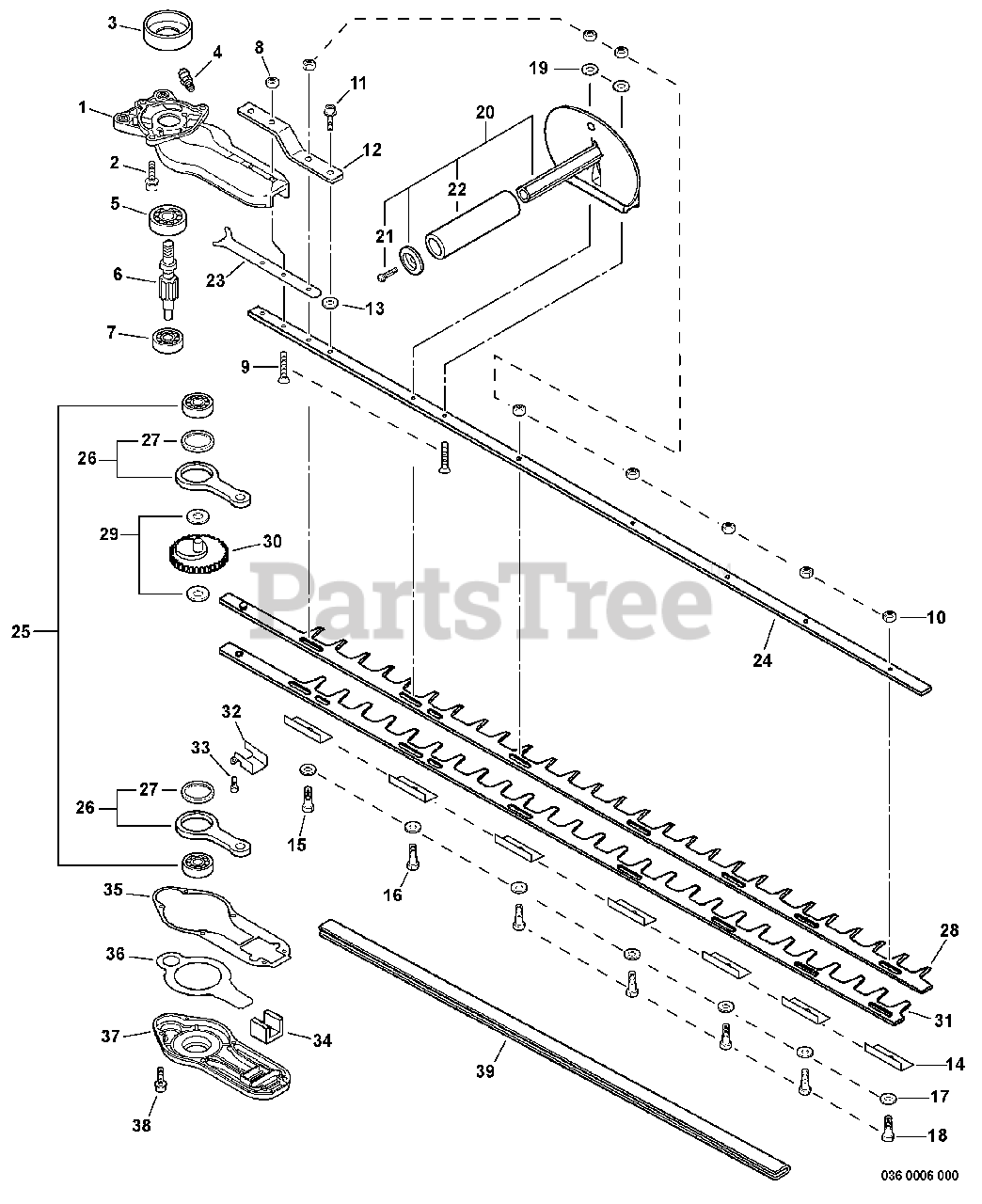

HC-231 - Echo Hedge Trimmer (SN: S78113001001 - S78113999999) Gear Case, Blades, Front Handle Parts Diagram

Hedge Trimmer

Gear Case, Blades, Front Handle Parts Diagram

  • Title

1

Echo C531000270

CASE, GEAR - UPPER

$86.99

$

Usually ships in 2-4 days

0

2

Echo 90016206018

BOLT 6×18

$1.49

$

Usually ships in 2-4 days

0

3

Echo A556000301

DRUM, CLUTCH

$44.99

$

In Stock, only 1 left!

0

4

Echo 88011010860

FITTING, GREASE

$6.49

$

Usually ships in 2-4 days

0

5

Echo 90081206200

BEARING, BALL 6200

$14.99

$

Usually ships in 2-4 days

0

6

Echo V650000160

GEAR, SPUR

$47.99

$

Usually ships in 2-4 days

0

7

Echo 90080400608

BEARING, BALL 608ZZ

$15.99

$

In Stock, only 2 left!

0

8

Echo 90051800006

NUT, FLANGE M6

$1.99

$

In Stock, Qty 20+

0

9

Echo 9110306030

BOLT 6×30

$1.99

$

Usually ships in 2-4 days

0

10

Echo 43302206460

NUT M6

$1.49

$

In Stock, Qty 20+

0

11

Echo 90016206012

SCREW - 6×12
(Superseded to 90010306012)

$0.99

$

Usually ships in 2-4 days

0

12

Echo 69921308960

BRACKET, BLADE

$6.99

$

Usually ships in 2-4 days

0

13

Echo 90063000006

WASHER

$0.99

$

In Stock, Qty 10

0

14

Echo 69921302063

GUIDE, BLADE

$5.99

$

In Stock, only 2 left!

0

15

Echo 69911505360

BOLT 6×35

$2.99

$

Usually ships in 2-4 days

0

16

Echo 35102702060

BOLT 6×40

$7.99

$

Usually ships in 2-4 days

0

17

Echo 69911801261

WASHER

$0.99

$

Usually ships in 2-4 days

0

18

Echo 69911502062

BOLT 6×22

$5.99

$

Usually ships in 2-4 days

0

19

Echo 90060300006

WASHER 6.5×13×1

$0.99

$

In Stock, Qty 20+

0

20

Echo 35120007361

FRONT HANDLE ASSY
(Superseded to 35120007362)

Note: INCLUDES ITEMS 21-22

$26.99

$

Usually ships in 2-4 days

0

21

Echo 90025305014

SCREW 5×14

$1.49

$

In Stock, Qty 5

0

22

Echo 35101207361

GRIP, HANDLE

$9.49

$

In Stock, Qty 5

0

23

Echo V150001240

PLATE, EYE

$11.99

$

Usually ships in 2-4 days

0

24

Echo X425000280

SUPPORT, BLADE 40"

$97.99

$

Usually ships in 2-4 days

0

25

Echo 90081006200

BEARING, BALL 6200

$12.99

$

In Stock, only 1 left!

0

26

Echo C532000080

ROD, CONNECTING
(Superseded to P021008400)

Note: Includes ITEM 27

$78.99

$

In Stock, only 2 left!

0

27

Echo 61032701261

BEARING, NEEDLE 30

$23.99

$

In Stock, Qty 9

0

28

Echo X411000460

BLADE, UPPER 40"

$81.99

$

Usually ships in 2-4 days

0

29

Echo V307000050

WASHER, THRUST 10

$5.99

$

In Stock, only 3 left!

0

30

Echo V060000030

GEAR, SPUR
(Superseded to V060000050)

$107.99

$

Usually ships in 2-4 days

0

31

Echo X411000450

BLADE, LOWER 40"

$81.99

$

Usually ships in 2-4 days

0

32

Echo C538000090

GUIDE, BLADE

$10.99

$

Usually ships in 2-4 days

0

33

Echo 90016304016

BOLT 4×16
(Superseded to V202000830)

$1.99

$

In Stock, Qty 18

0

34

Echo V541000100

SEAL

$4.49

$

Usually ships in 2-4 days

0

35

Echo V110000030

GASKET, GEAR CASE

Note: Included In GASKET KIT

$9.49

$

In Stock, Qty 5

0

36

Echo C542000020

PLATE, GEAR CASE

$13.99

$

Usually ships in 2-4 days

0

37

Echo C531000280

COVER, GEAR CASE

$52.99

$

In Stock, only 2 left!

0

38

Echo 90016304016

BOLT 4×16
(Superseded to V202000830)

$1.99

$

In Stock, Qty 18

0

39

Echo 89852308960

SCABBARD

$29.99

$

Usually ships in 2-4 days

0
