HC-233 - Echo Hedge Trimmer (SN: 02001001 - 02999999) Blades, Gear Case, Side Handle, Tools Parts Diagram

Hedge Trimmer

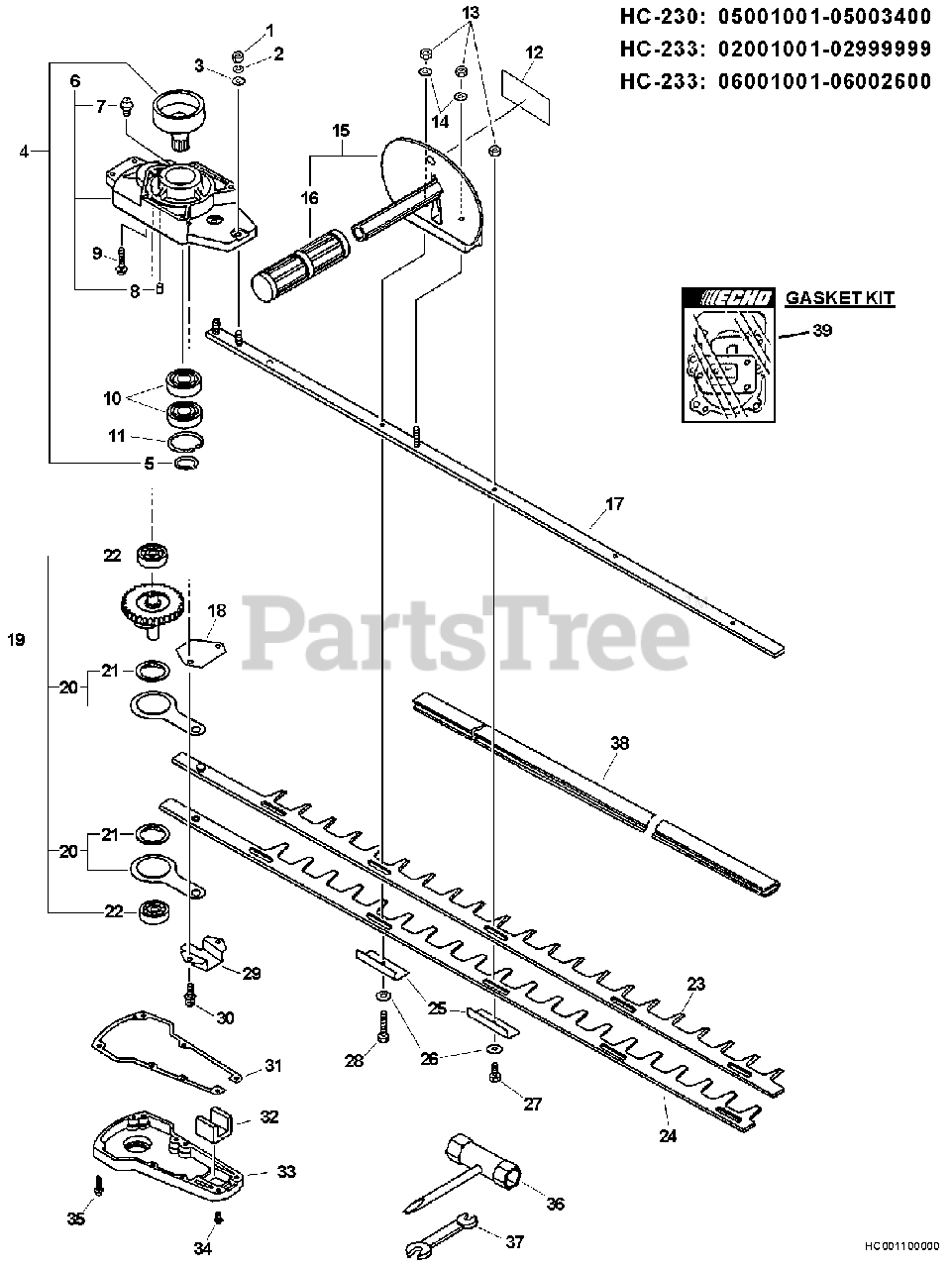

Blades, Gear Case, Side Handle, Tools Parts Diagram

  • Title

1

Echo 900500-00006

NUT, HEX M6

$0.99

$

In Stock, Qty 20+

0

2

Echo 90060500006

WASHER, SPRING 6

$0.99

$

In Stock, Qty 15

0

3

Echo 90060000006

WASHER 6.5×11.5×0.8

$0.99

$

In Stock, Qty 20+

0

4

Echo 17500301261

DRUM, CLUTCH

Note: Includes ITEM 5

$98.99

$

Usually ships in 2-4 days

0

5

Echo 90070100016

RING, RETAINING - 16

$1.49

$

Usually ships in 2-4 days

0

6

Echo 61040708561

CASE, GEAR
(Superseded to 61040708562)

Note: INCLUDES ITEMS 7-8

$74.99

$

Usually ships in 2-4 days

0

7

Echo 88011010860

FITTING, GREASE

$6.49

$

Usually ships in 2-4 days

0

8

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, only 4 left!

0

9

Echo 90016205030

BOLT 5×30

$1.49

$

In Stock, only 2 left!

0

10

Echo 90080206003

BEARING, BALL 6003

$20.99

$

Usually ships in 2-4 days

0

11

Echo 90070200035

RING, SNAP 35

$2.49

$

In Stock, Qty 9

0

12

Echo X505000270

LABEL, CAUTION
(Superseded to X505000271)

$3.99

$

Usually ships in 2-4 days

0

13

Echo 43302206460

NUT M6

$1.49

$

In Stock, Qty 20+

0

14

Echo 90060300006

WASHER 6.5×13×1

$0.99

$

In Stock, Qty 20+

0

15

Echo 35120002060

BRACKET ASSY

Note: Includes ITEM 16

$65.99

$

Usually ships in 2-4 days

0

16

Echo 35101201260

GRIP

$8.99

$

Usually ships in 2-4 days

0

17

Echo X425000100

SUPPORT, BLADE

$45.99

$

Usually ships in 2-4 days

0

18

Echo 61044008960

PLATE, GUIDE

$4.99

$

Usually ships in 2-4 days

0

19

Echo 61030209661

GEAR ASSY

Note: INCLUDES ITEMS 20-22

$213.99

$

Usually ships in 2-4 days

0

20

Echo 61030701261

CONROD ASSY
(Superseded to Discontinued)

Note: Includes ITEM 21

$

$

Not available

21

Echo 61032701261

BEARING, NEEDLE 30

$23.99

$

In Stock, Qty 9

0

22

Echo 90081006200

BEARING, BALL 6200

$12.99

$

In Stock, only 1 left!

0

23

Echo X411000080

BLADE - UPPER
(Superseded to X411000320)

$90.99

$

Usually ships in 2-4 days

0

24

Echo X411000090

BLADE - LOWER
(Superseded to X411000330)

$67.99

$

Usually ships in 2-4 days

0

25

Echo 69921302062

INSULATOR
(Superseded to 69921302063)

$5.99

$

In Stock, only 2 left!

0

26

Echo 69911801261

WASHER

$0.99

$

Usually ships in 2-4 days

0

27

Echo 69911502062

BOLT 6×22

$5.99

$

Usually ships in 2-4 days

0

28

Echo 35102702060

BOLT 6×40

$7.99

$

Usually ships in 2-4 days

0

29

Echo 61044108960

GUIDE, BLADE

$6.99

$

Usually ships in 2-4 days

0

30

Echo 90016205014

BOLT 5×14

$1.49

$

In Stock, Qty 7

0

31

Echo 61041401260

GASKET, GEAR CASE

Note: Included In GASKET KIT

$1.99

$

In Stock, Qty 11

0

32

Echo 61042601260

SEAL

$3.49

$

In Stock, only 1 left!

0

33

Echo 61043108960

LID, GEAR CASE
(Superseded to 61043108961)

$24.99

$

Usually ships in 2-4 days

0

34

Echo 900242-04014

SCREW 4×14

$0.99

$

In Stock, Qty 5

0

35

Echo 90024204022

SCREW 4×22

$0.99

$

In Stock, Qty 8

0

36

Echo 89541006960

T-WRENCH 13×19×180
(Superseded to 89541006961)

$4.49

$

In Stock, only 2 left!

0

37

Echo 895112-00330

SPANNER 8×10

$0.99

$

In Stock, Qty 6

0

38

Echo 89852302961

SCABBARD

$24.99

$

Usually ships in 2-4 days

0

39

Echo P021002240

GASKET KIT
(Superseded to P021002241)

$27.99

$

Usually ships in 2-4 days

0

39

Echo P021003880

GASKET KIT

$42.99

$

Usually ships in 2-4 days

0
